11 9 260 Counter support with screw connection
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
COUNTER SUPPORT WITH SCREW CONNECTION SPECIFICATION
| Note: | For locking flywheel with transmission removed |
| Engine: | M47TU, M54, M57T2, M57TU, N40, N42, N45, N46, N52, N62, N73, S85, W17 |
| Storage location: | A45, B43, C44 |
| SI number: | 1 01 01 (662) |
| Order number: | 11 9 260 |

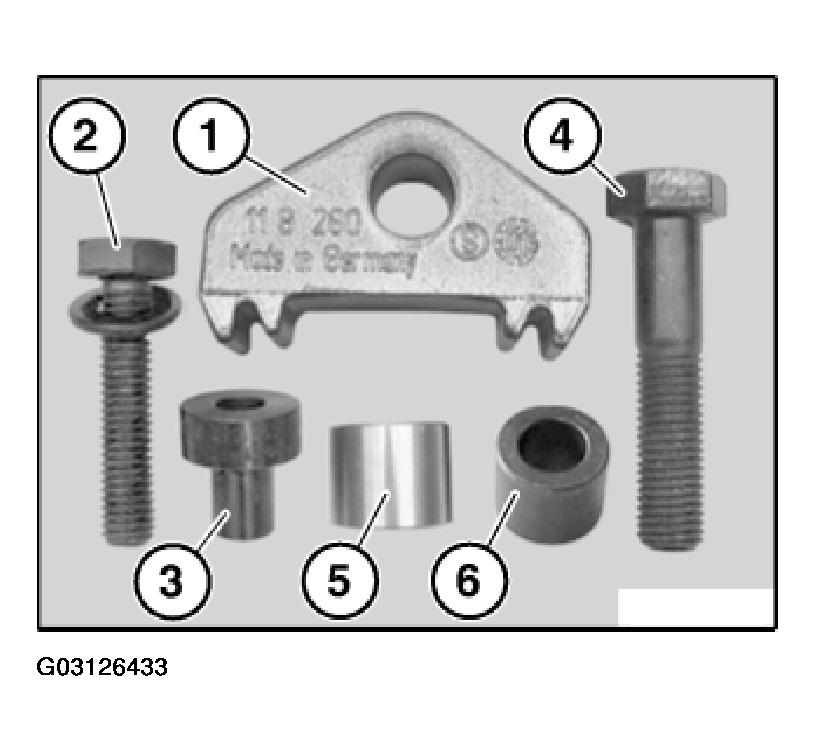

| Counter support with screw connection | |
| Consisting of: | |
| 1 = 11 9 261 | Counterholder, individual |
| 2 = 11 9 262 | Bolt (M10 thread) with washer |
|
NOTE:
For bolting down counterholder
|
|
| 3 = 11 9 263 | Sleeve for counterholder |
|
NOTE:
For counterholder for locking flywheel with transmission removed engine: N62, N73
|
|
| 4 = 11 9 264 | Bolt (M12 thread) |
|
NOTE:
For counterholder for locking flywheel with transmission removed
|
|
| 5 = 11 9 265 | Sleeve |
| 6 = 11 9 266 | Sleeve |
|
NOTE:
For counterholder for locking flywheel with transmission removed Engine: M57TU2
|
|
