11 7 390 Complete pressure testing fixture
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
COMPLETE PRESSURE TESTING FIXTURE SPECIFICATION
| Note: | For closing off coolant outlet openings when pressure-testing cylinder head for water leaks |
| Engine: | M52TU, M54, M56 |
| Order number: | 11 7 390 |

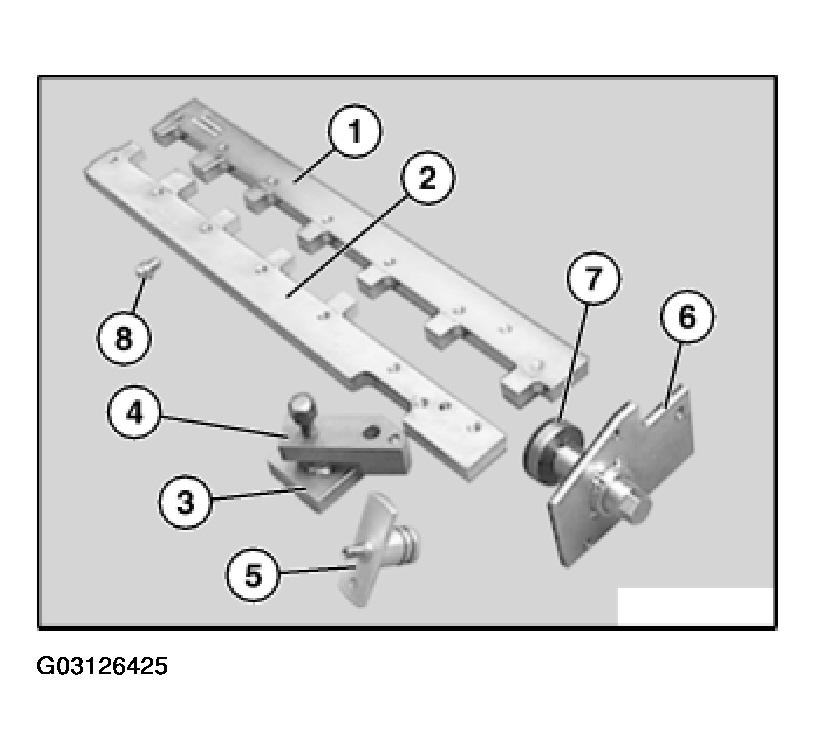

| Complete pressure testing fixture | |
| Consisting of: | |
| 1 = 11 7 391 | Sealing strip with 7 lugs |
| 2 = 11 7 392 | Sealing strip with 5 lugs |
| 3 = 11 7 393 | Cover plate |
|
NOTE:
For cylinder head sealing face
|
|
| 4 = 11 7 394 | Support bracket |
|
NOTE:
With pressure spindle and mounting screw for 11 7 393
|
|
| 5 = 11 7 395 | Screw plug |
|
NOTE:
With air connection
|
|
| 6 = 11 7 396 | Cover plate, end face |
| 7 = 11 7 397 | Spindle |
|
NOTE:
With thrust piece for 11 7 396
|
|
| 8 = 11 7 398 | Screw plug, intake side |
