11 4 230 Chain tensioner
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
CHAIN TENSIONER SPECIFICATION
| Note: | For tensioning primary chain when adjusting valve timing |
| Engine: | M52TU, M54, M56, M62, M62VAN, N40, N42 |
| Storage location: | A40 |
| SI number: | 1 15 99(483) |
| Order number: | 11 4 230 |

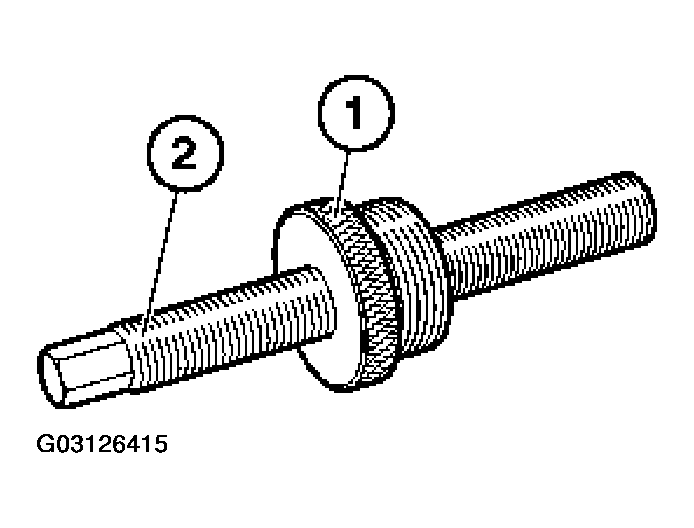

| Chain tensioner | |
| Consisting of: | |
| 1 = 11 4 231 | Nut |
|
NOTE:
With external thread
|
|
| 2 = 11 4 232 | Spindle |
