11 3 480 Guide mandrel (2)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
GUIDE MANDREL (2) SPECIFICATION
| Note: | For installing connecting rods with pistons. Note: With the phase-in of engine S50B32 the guide mandrels have been revised and adapted to the new connecting rods. |
| Engine: | M44, M52, M52TU, M54, M56, S50B30, S50B32, S62 |
| Storage location: | B2, C2 |
| SI number: | 1 12 92(606) |
| Order number: | 11 3 480 |

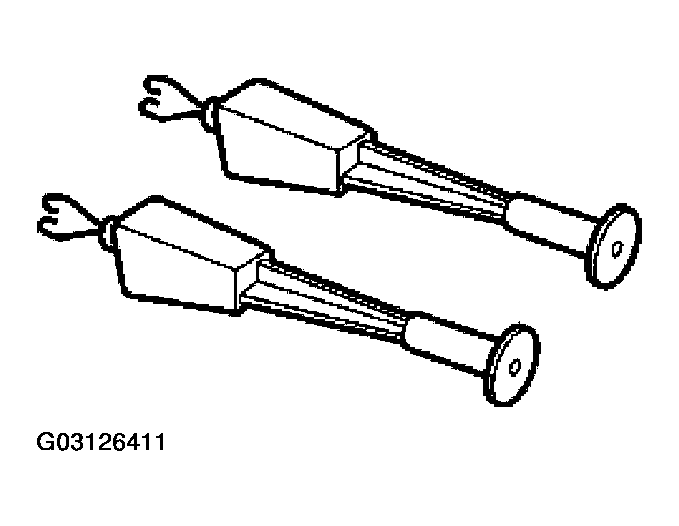

| Guide mandrel (2) | |
