11 3 240 Locking fixture
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
LOCKING FIXTURE SPECIFICATION
| Note: | For locking camshaft in position when adjusting timing |
| Engine: | M42, M44, M50, M52, M52TU, M54, M56, S50US, S52US |
| Storage location: | A11 |
| SI number: | 1 05 89(099) |
| Order number: | 11 3 240 |

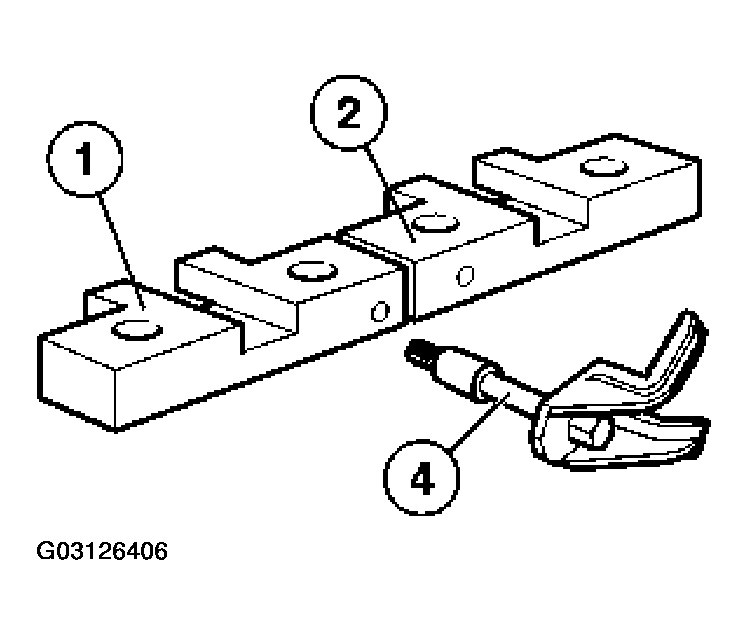

| Locking fixture | |
| Consisting of: | |
| 1 = 11 3 241 | Gauge for inlet side |
| 2 = 11 3 242 | Gauge for exhaust side |
| 4 = 11 3 244 | Support bracket |
|
NOTE:
For securing camshaft marking fixture on cylinder head
|
|
