11 0 070 Engine hoist
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE HOIST SPECIFICATION
| Note: | For removing and installing engines |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17 |
| SI number: | 1 16 96(107) |
| Order number: | 11 0 070 |

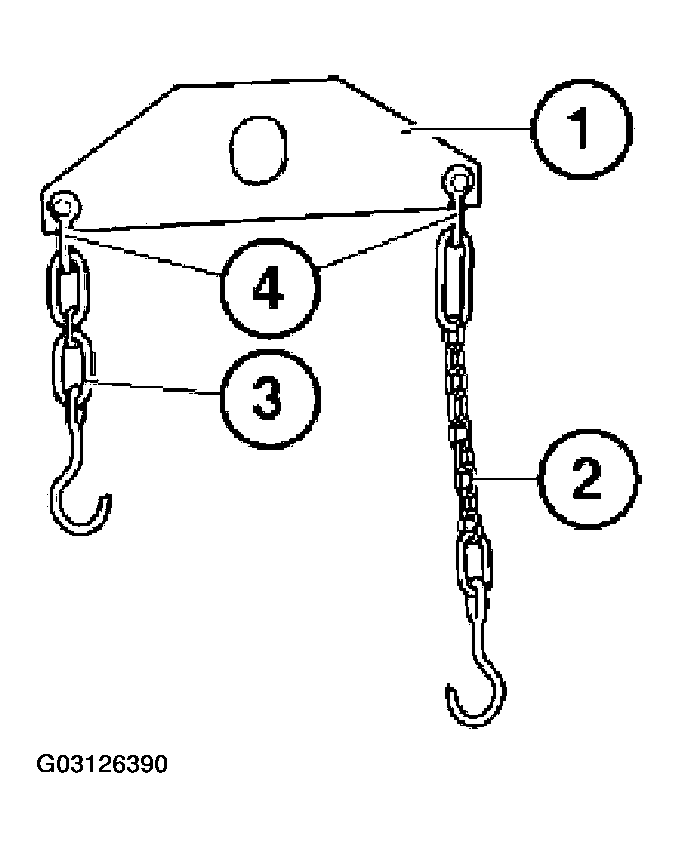

| Engine hoist | |
| Consisting of: | |
| 1 = 11 0 071 | Lifting beam |
| 2 = 11 0 072 | Carrying chain, long |
| 3 = 11 0 073 | Carrying chain, short |
| 4 = 11 0 079 | Shackle (2 x) |
