67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlamp, from 09/2000)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

M54 only:

Remove intake filter housing. See 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54)

S62 only:

Remove left intake filter housing.

M62 only:

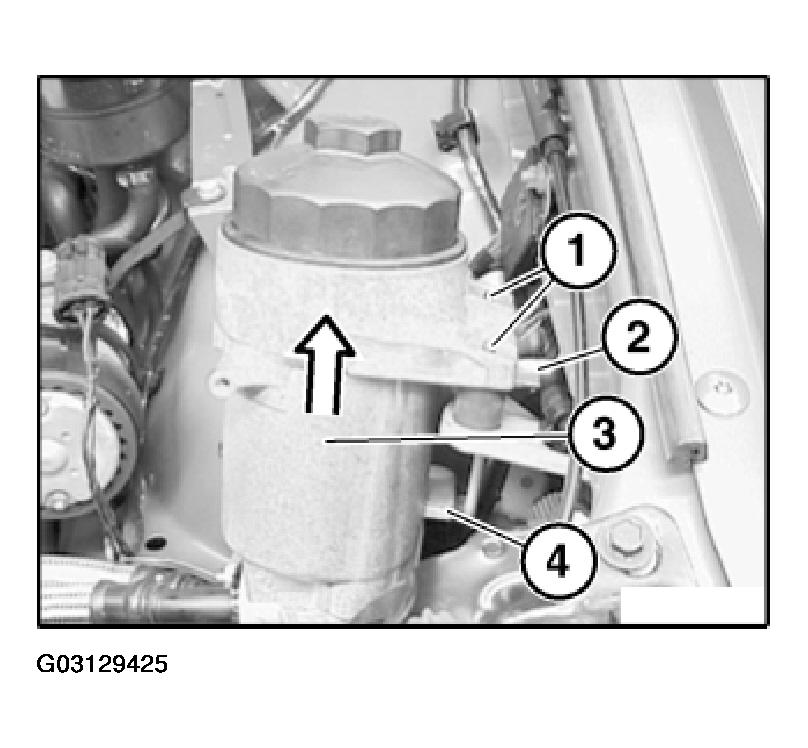

Release screws (1).

Remove ground connection (2).

Pull main flow oil filter housing (3) in direction of arrow out of rubber grommet (4) and place to one side.

Installation:

If necessary, replace faulty rubber grommet (4).

Make sure main flow oil filter housing (3) is correctly seated in rubber grommet (4).

Fig 1: Removing Ground Connection

Courtesy of BMW OF NORTH AMERICA, INC.

All:

WARNING: Xenon headlamps: Danger to life due to high voltage!
Therefore disconnect xenon headlamps from voltage supply.

Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

NOTE: Headlamp removed for purposes of clarity.

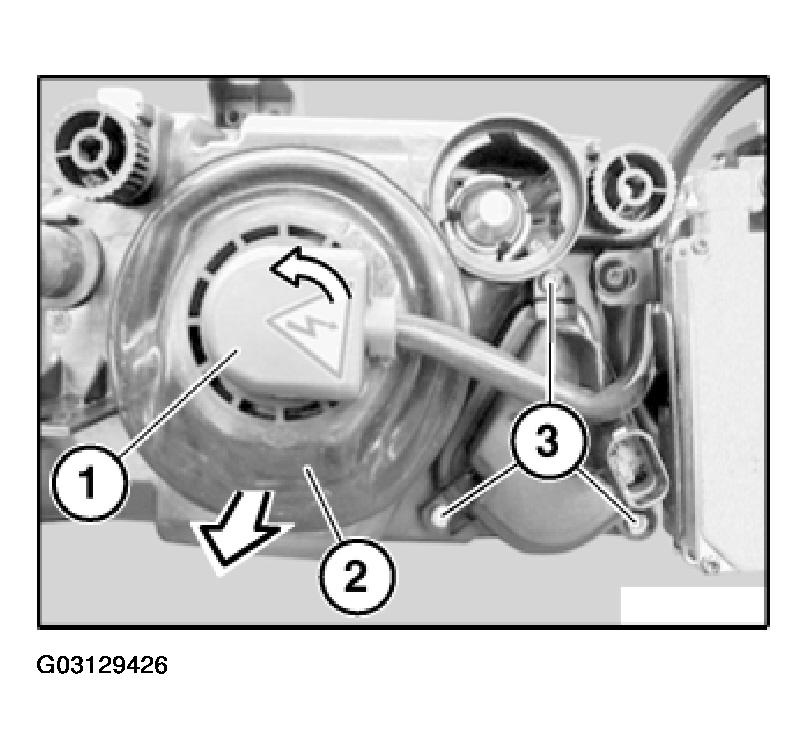

Turn plug connection (1) in direction of arrow and remove. Remove low beam cover (2) in direction of arrow.

Release screws (3).

Fig 2: Turning Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

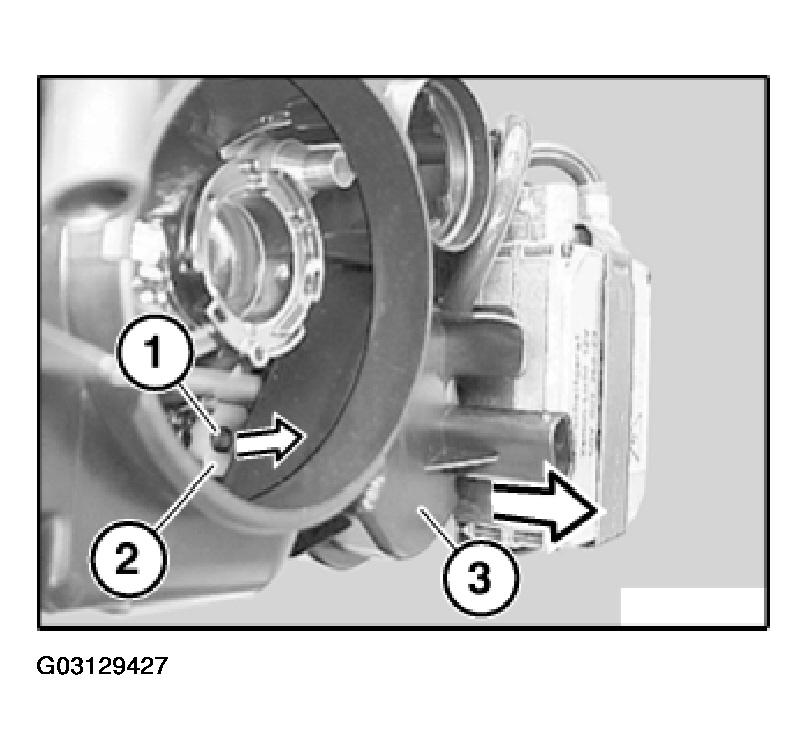

Feed ball head (1) in direction of arrow out of mounting (2).

Remove cover cap with headlight vertical aim adjuster (3) in direction of arrow.

Installation:

Make sure ball head (1) is correctly seated in mounting (2).

Fig 3: Removing Ball Head From Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

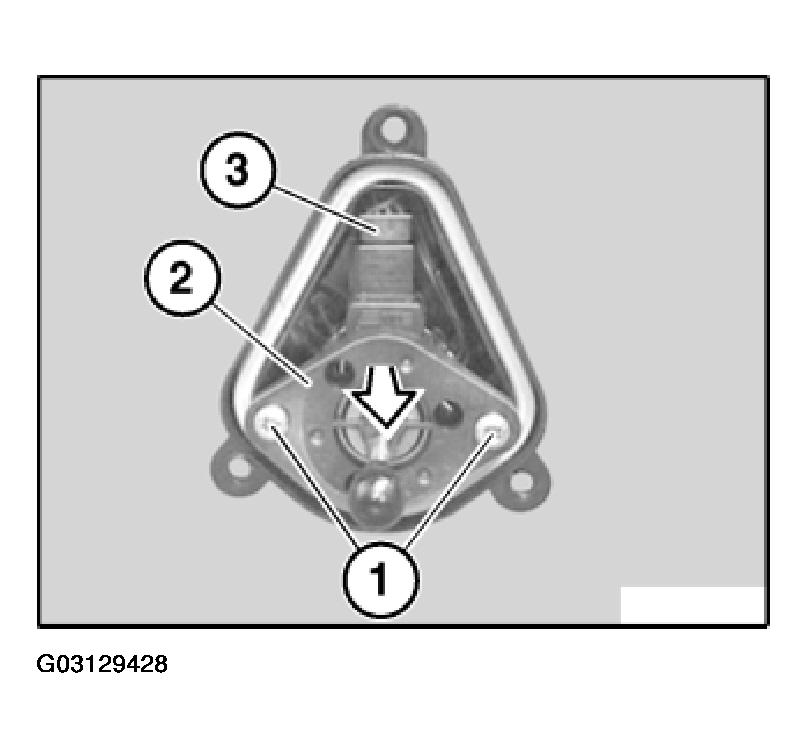

Release screws (1).

Remove headlight vertical aim adjuster (2) in direction of arrow and disconnect plug connection (3).

Installation:

Adjust headlamp.

Fig 4: Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.
