67 16 010 Removing and installing/replacing left headlight vertical aim adjuster (from 09/2000)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

M54 only:

Remove intake filter housing. See 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54)

M62 only:

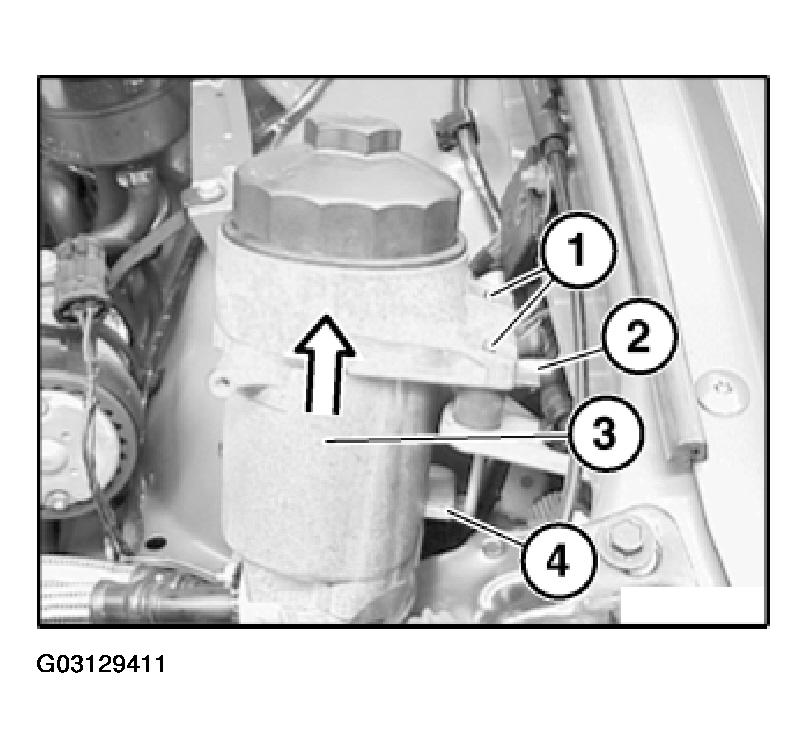

Release screws (1).

Remove ground connection (2).

Pull main flow oil filter housing (3) in direction of arrow out of rubber grommet (4) and place to one side.

Installation:

If necessary, replace faulty rubber grommet (4).

Make sure main flow oil filter housing (3) is correctly seated in rubber grommet (4).

Fig 1: Removing Ground Connection

Courtesy of BMW OF NORTH AMERICA, INC.

All:

WARNING: Follow instructions for handling light bulbs (exterior lights).

NOTE: Headlamp removed for purposes of clarity.

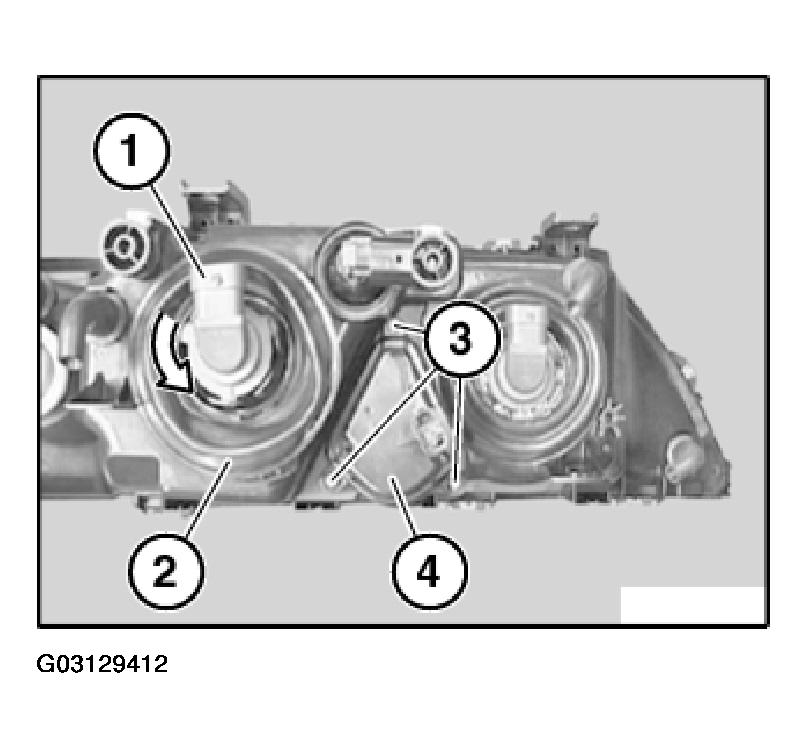

Turn plug housing (1) in direction of arrow and remove.

Remove low beam cover (2).

Release screws (3).

Feed out headlight vertical aim adjuster cover cap (4) with ball head and remove.

Fig 2: Removing Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

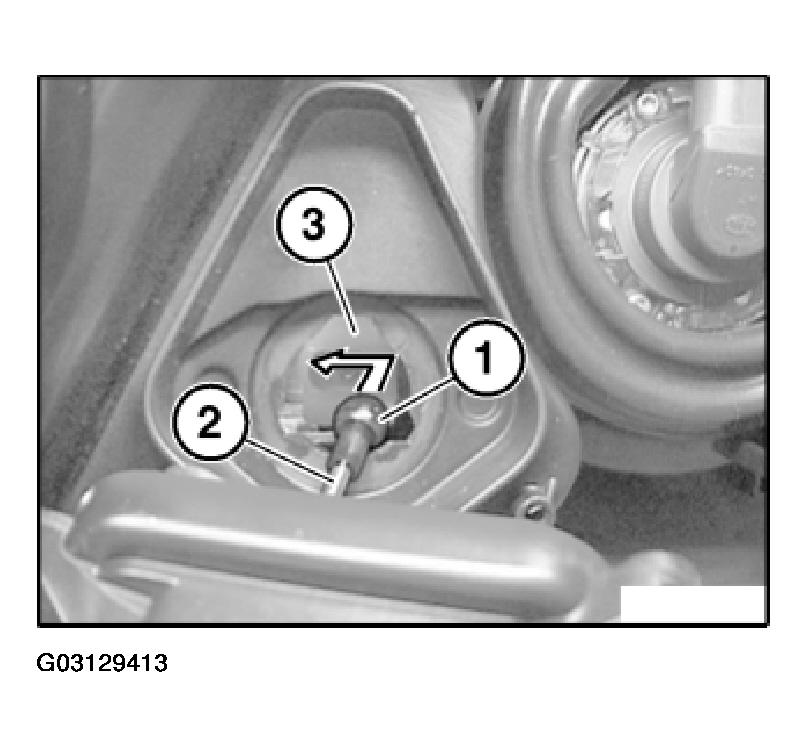

Feed ball head (1) of headlight vertical aim adjuster (2) in direction of arrow into mounting (3).

Fig 3: Installing Ball Head Of Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

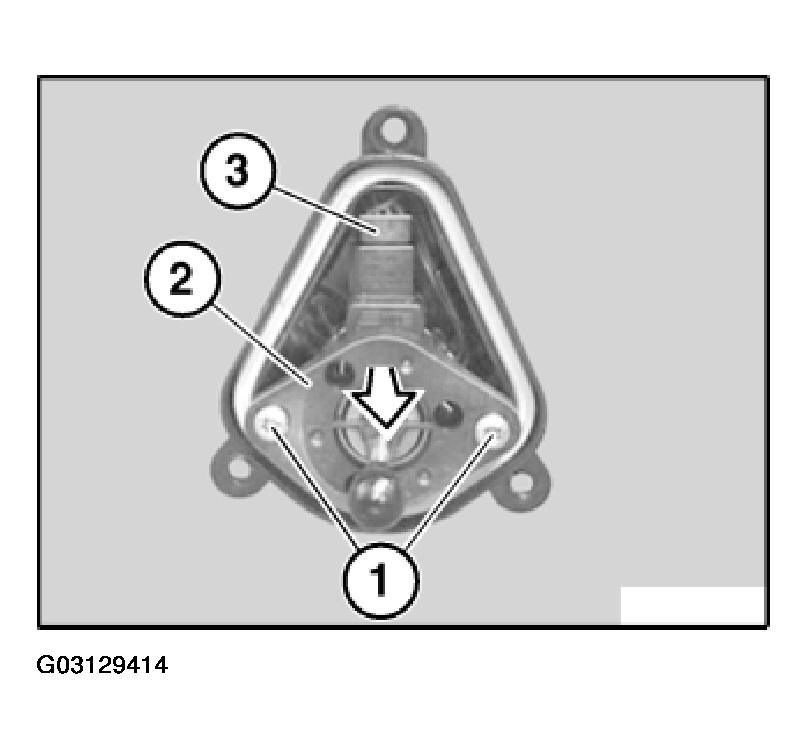

Release screws (1).

Remove headlight vertical aim adjuster (2) in direction of arrow and disconnect plug connection (3).

Installation:

Adjust headlamp.

Fig 4: Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.
