67 62 020 Removing and installing/replacing flat motor for rear left or right power window lifter

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

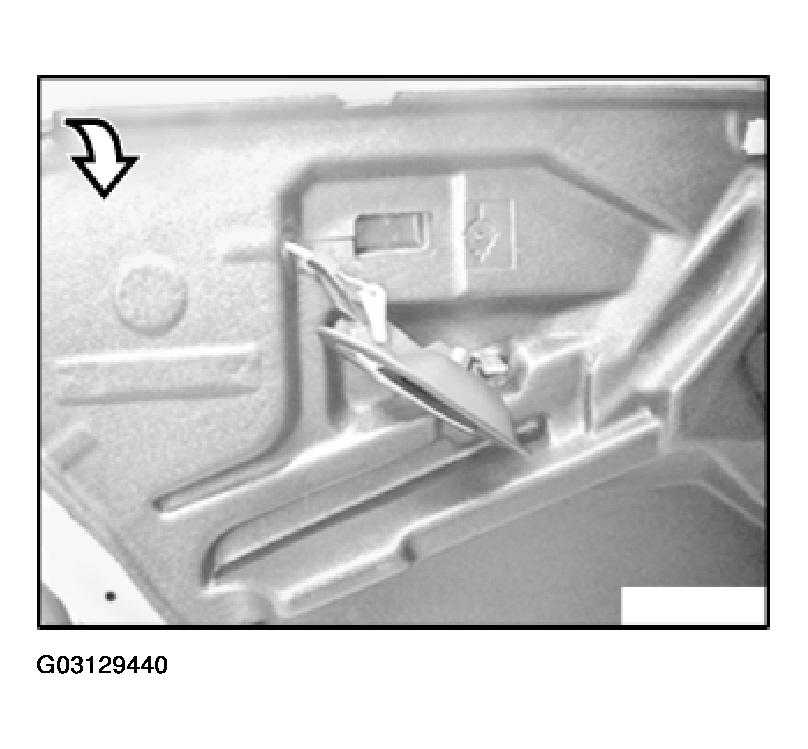

Carefully remove sheeting.

Fig 1: Removing Sheeting

G03129440

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Acoustic insulation in picture only serves as an illustration:
It is not identical to detached acoustic insulation.

Installation:

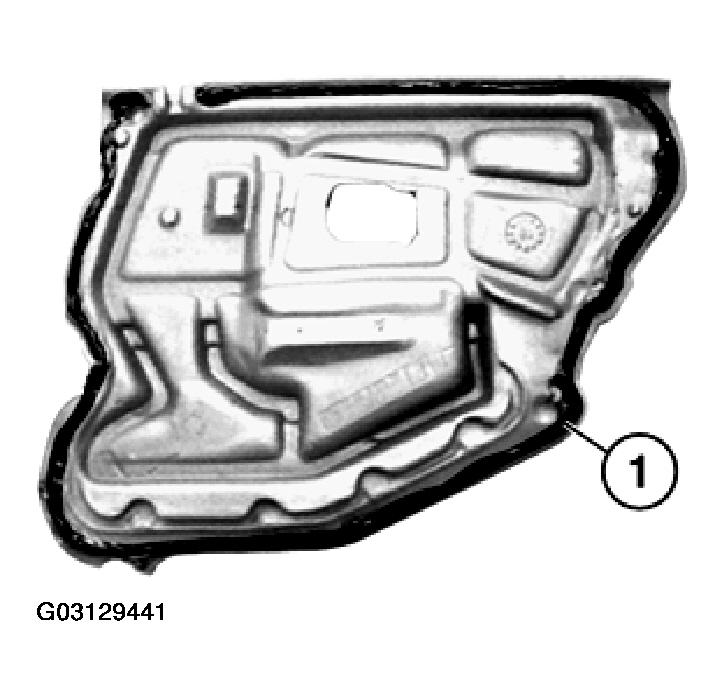

If necessary, stick butylene tape (1) (sourcing reference: BMW Parts Service) to detached areas.

Fig 2: Sticking Butylene Tape To Detached Areas

G03129441

Courtesy of BMW OF NORTH AMERICA, INC.

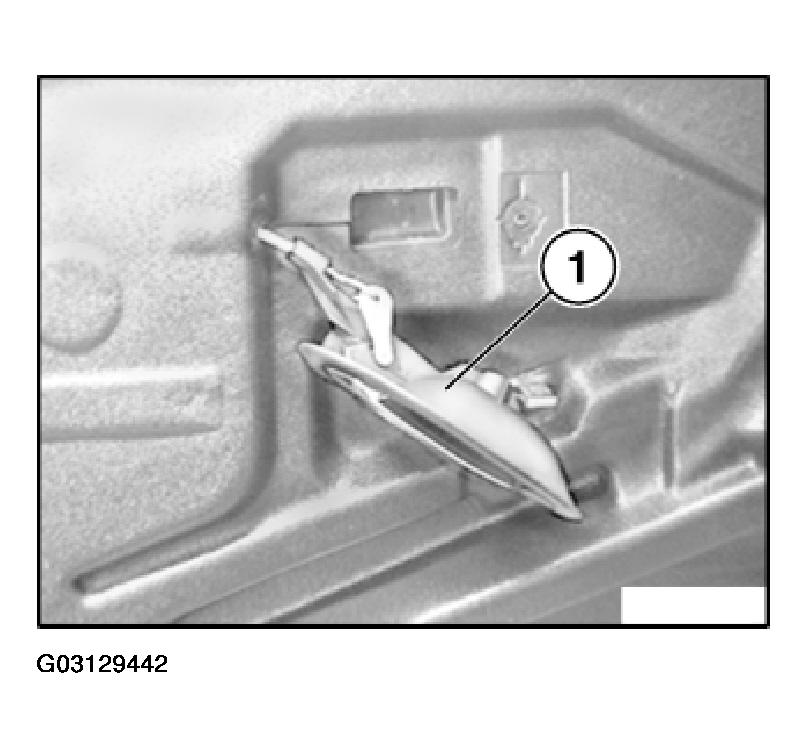

Feed door opener (1) out of sheeting.

Fig 3: Feeding Door Opener Out Of Sheeting

G03129442

Courtesy of BMW OF NORTH AMERICA, INC.

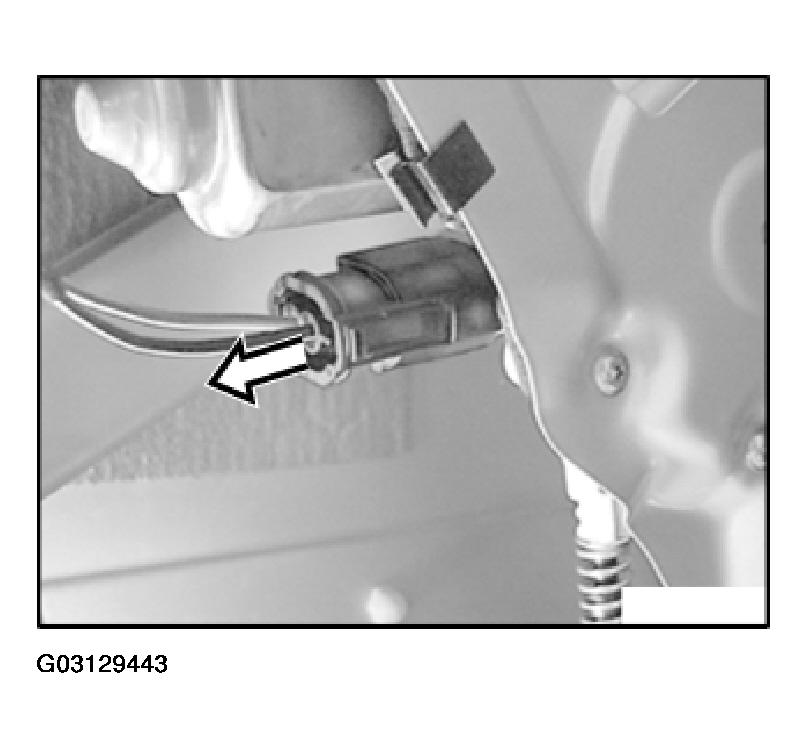

Pull off connectors.

Fig 4: Disconnecting Connectors

G03129443

Courtesy of BMW OF NORTH AMERICA, INC.

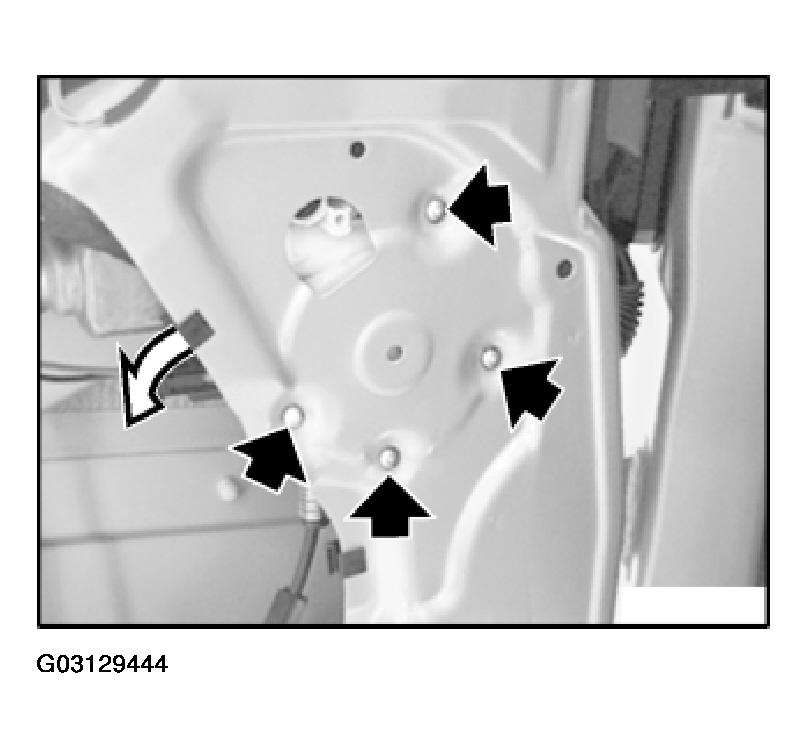

Release screws and feed out flat motor with Bowden cables.

Fig 5: Removing Screws

G03129444

Courtesy of BMW OF NORTH AMERICA, INC.

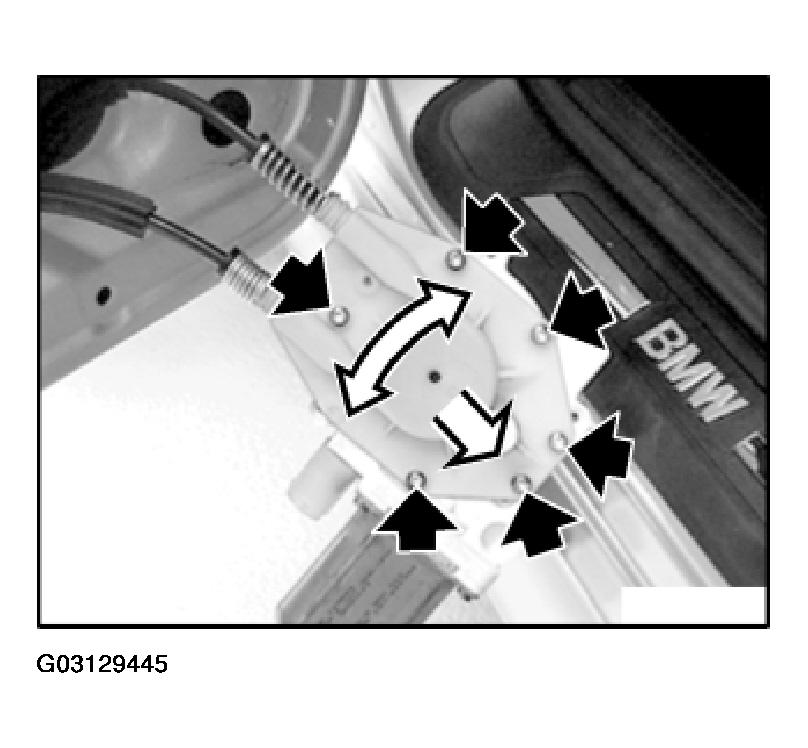

Release screws, remove cover from gear by moving it back and forth and simultaneously raising it.

Fig 6: Removing Cover From Gear

G03129445

Courtesy of BMW OF NORTH AMERICA, INC.
