65 52 023 Replacing panel for on-board monitor (control panel, widescreen)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

Necessary preliminary tasks:

Remove complete on-board monitor (widescreen)

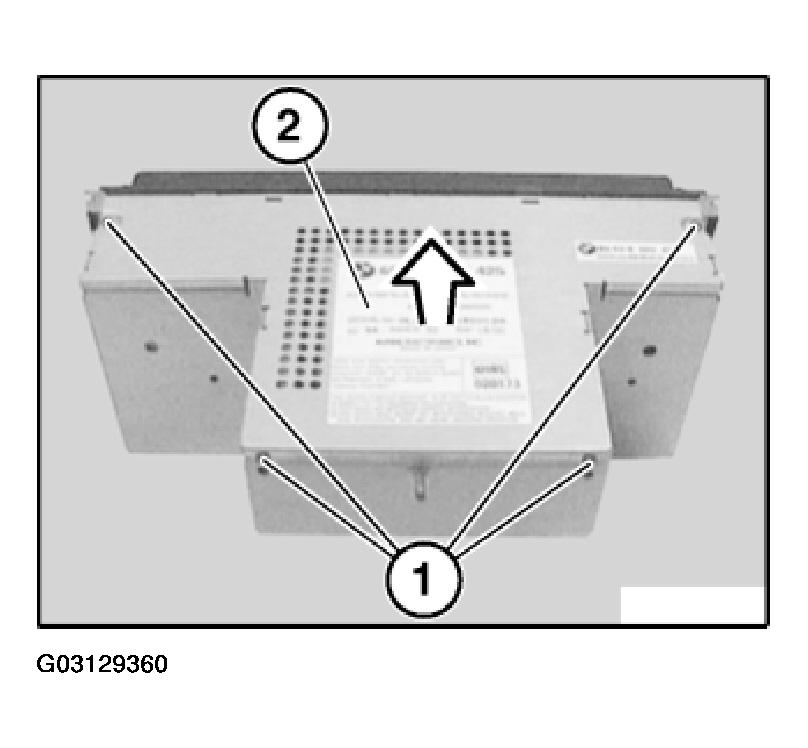

Release screws (1).

Remove upper housing section (2) in direction of arrow.

Fig 1: Removing Upper Housing Section

Courtesy of BMW OF NORTH AMERICA, INC.

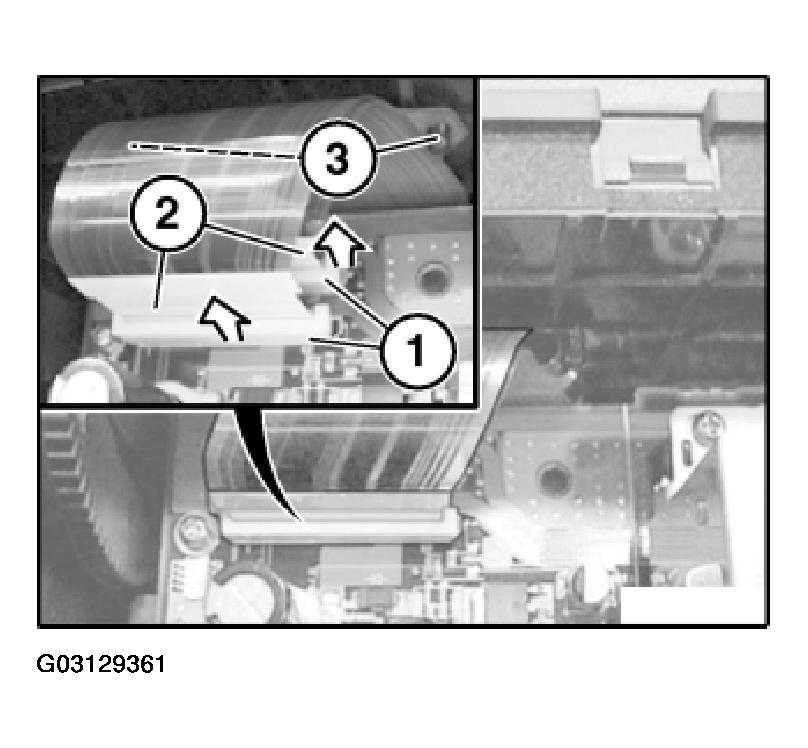

Raise locks (1) in direction of arrow.

Detach ribbon cables (2) and feed out at catches (3).

Installation:

Make sure ribbon cables are correctly seated.

Fig 2: Raising Locks

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carefully feed out ribbon cables when removing panel for on-board monitor (control panel).

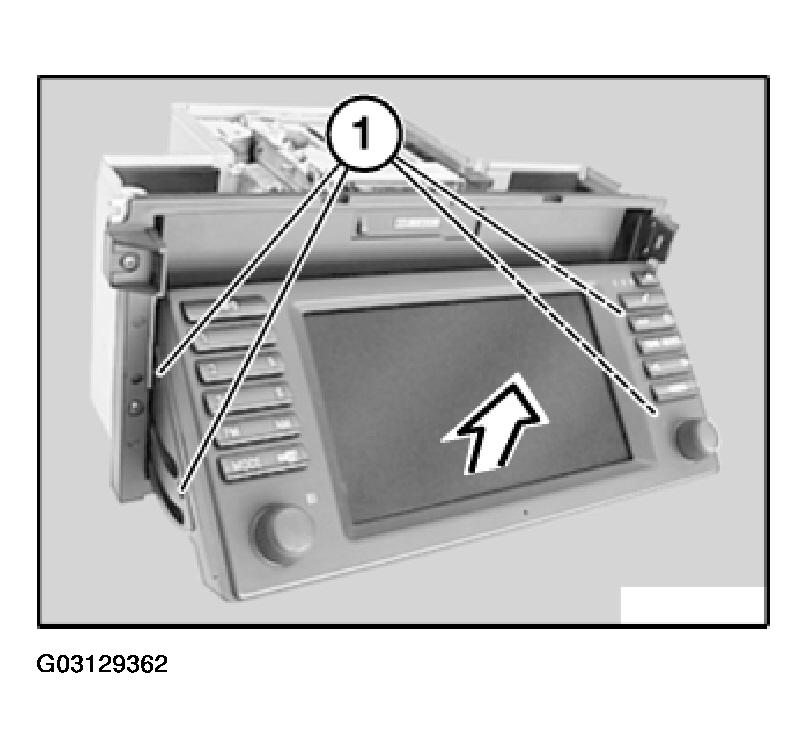

Release screws (1).

Remove panel for on-board monitor (control panel) in direction of arrow.

Fig 3: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.
