65 81 010 Removing and installing / replacing multi-information display (MID or IRIS)

Two different types of controls are fitted, depending on vehicle equipment.

1. The multi-information display is used if any other controllable items of special equipment are fitted, e.g. BC
2. The integrated radio and information system contains all control and display elements for radio and clock functions.

IRIS

Remove volume control button.

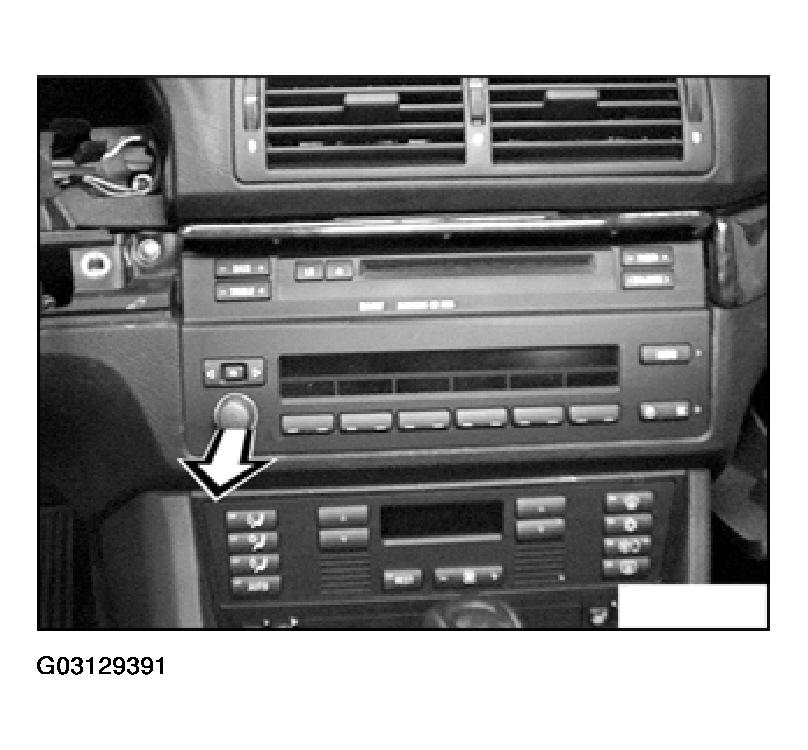

Fig 1: Removing Volume Control Button (IRIS)

Courtesy of BMW OF NORTH AMERICA, INC.

Press detent to one side and fold out IRIS.

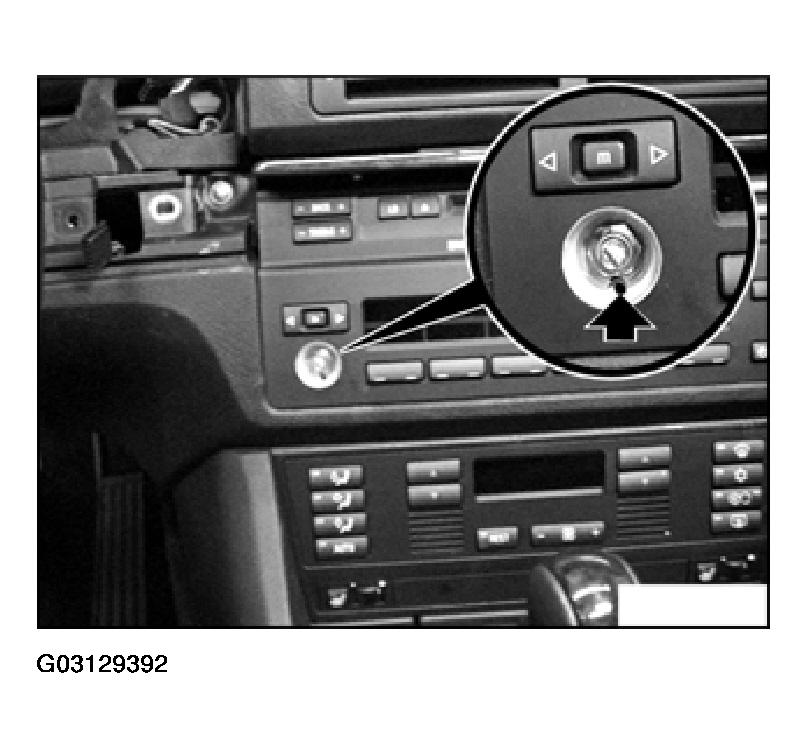

Fig 2: Removing (IRIS)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector

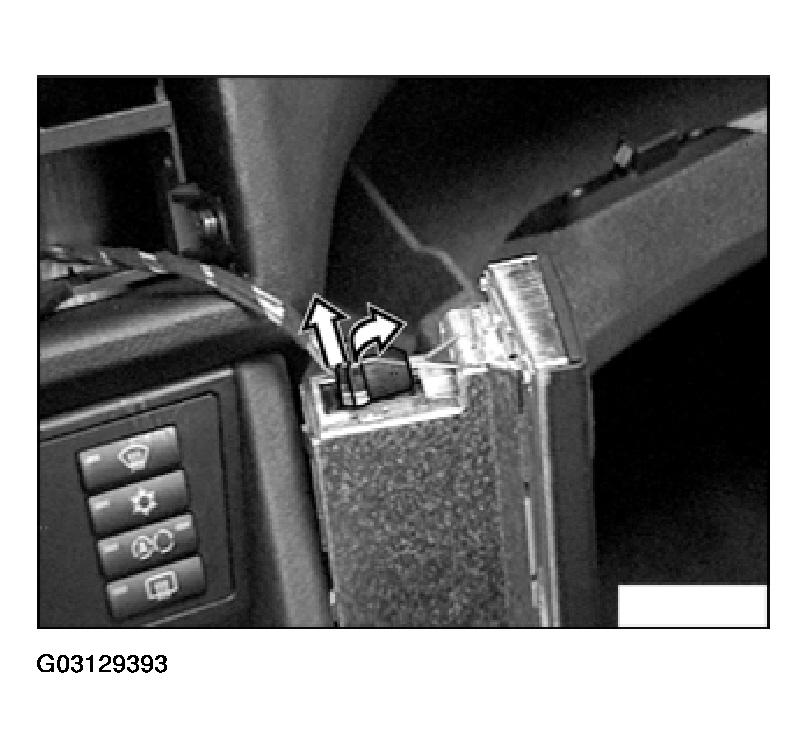

Fig 3: Removing Connector (IRIS)

Courtesy of BMW OF NORTH AMERICA, INC.

MID

Remove volume control button.

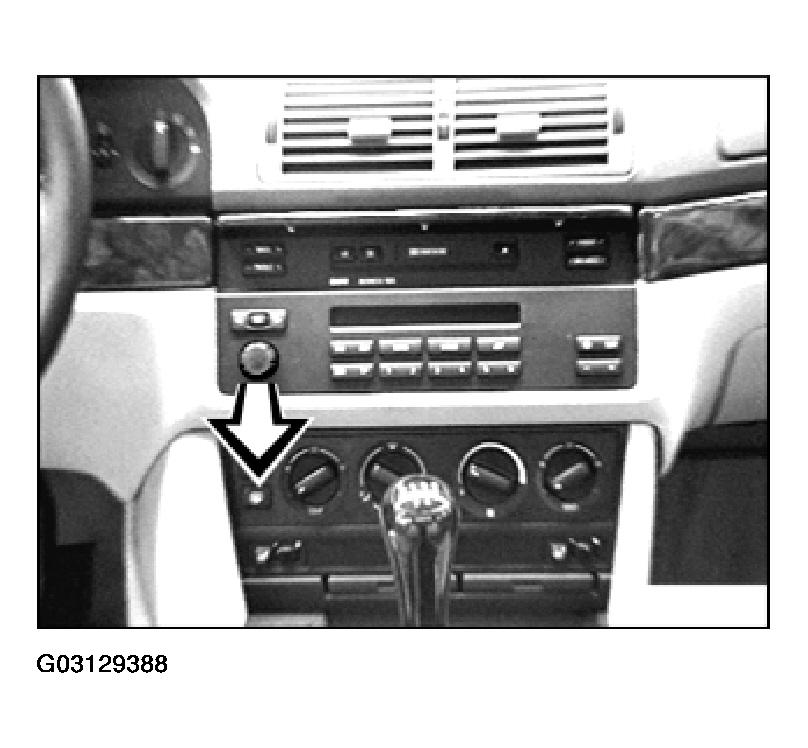

Fig 4: Removing Volume Control Button (MID)

Courtesy of BMW OF NORTH AMERICA, INC.

Twist detent with Allen key approx. 90 ° and fold out MID.

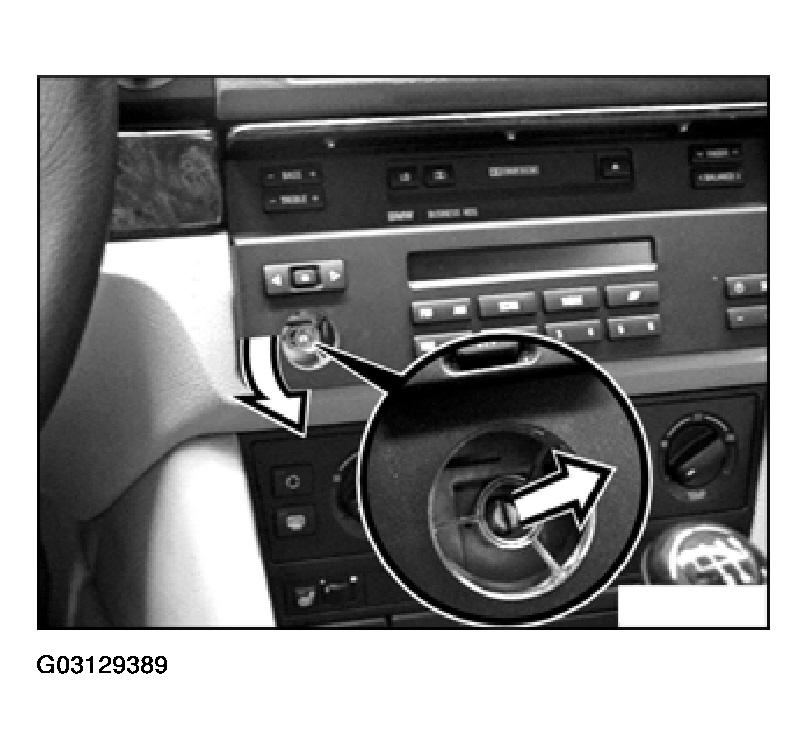

Fig 5: Removing MID

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector

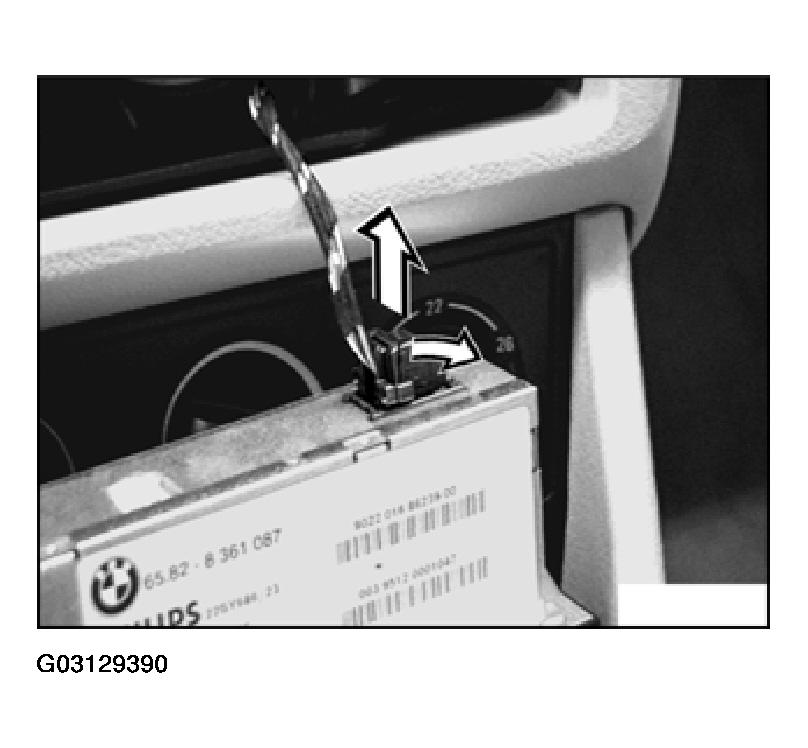

Fig 6: Removing Connector (MID)

Courtesy of BMW OF NORTH AMERICA, INC.
