65 90 001 Calibrating wheels for navigation system 1 (up to 9/97, measured with distance travelled)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Check tire pressure. Drive vehicle onto a flat surface, e.g. a parking lot.

Unclip cover for towing lug. Insert special tool 00 9 280 together with 00 9 200 in the bore.

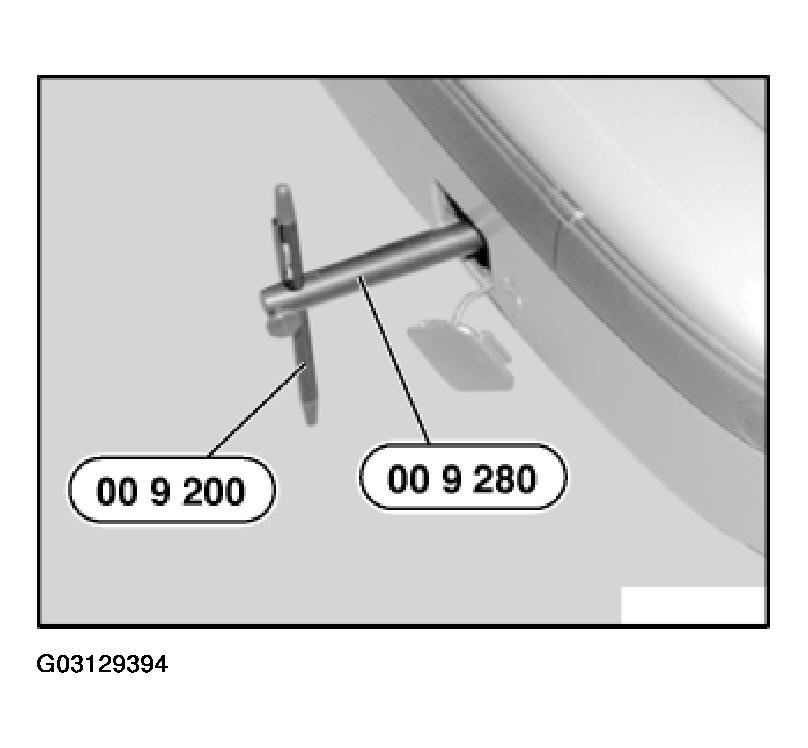

Fig 1: Inserting Special Tool In Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Mark initial point on the road. Acknowledge on the on-board monitor with START. Then drive straight ahead for 6 to 8 meters and stop.

Acknowledge end of journey on on-board monitor.

CAUTION: After stopping the vehicle, do not roll forwards or backwards.

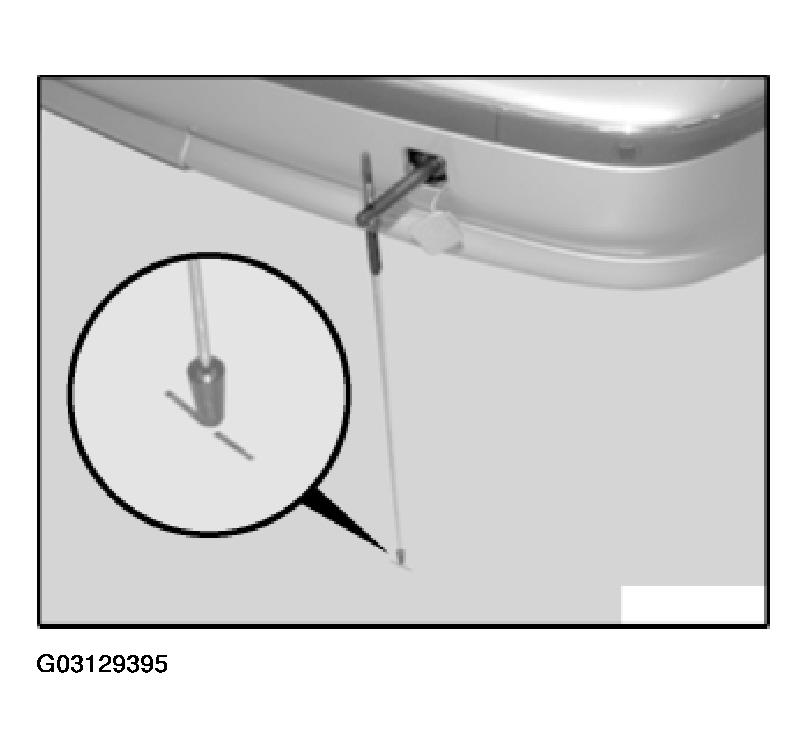

Fig 2: Marking Initial Point On Road

Courtesy of BMW OF NORTH AMERICA, INC.

Mark limit point and measure out distance covered. Tolerance < 1 cm. Enter the route distance reading on the on-board monitor. Then drive at least 100 meters in a straight line. An instruction is issued if the distance was too short or if too many steering wheel movements were required. On public roads, comply with the Highway Code of your country.

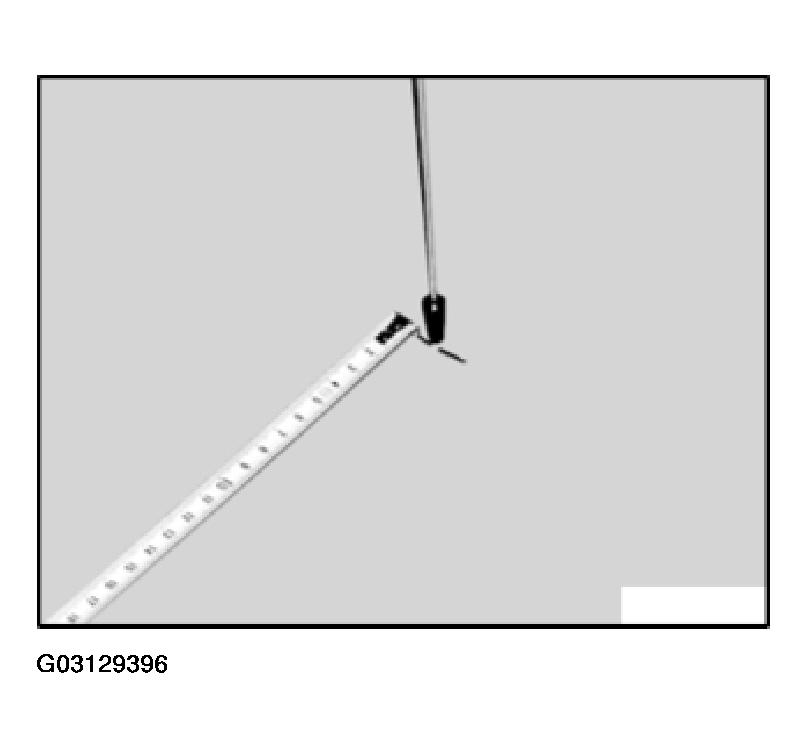

Fig 3: Marking Limit Point & Measuring Out Distance Covered

Courtesy of BMW OF NORTH AMERICA, INC.
