Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

65 1 100

Radio without MID or IRIS

Remove knob from volume control.

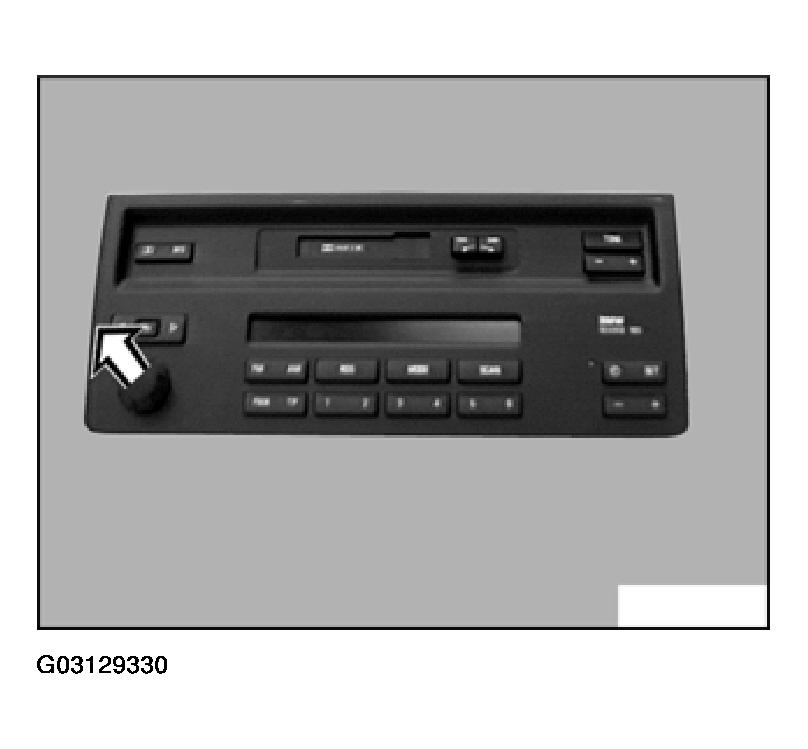

Fig 1: Removing Volume Control Knob

G03129330

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screwdriver (5.5) into slot (1) approx. 1 mm and turn through 90°.

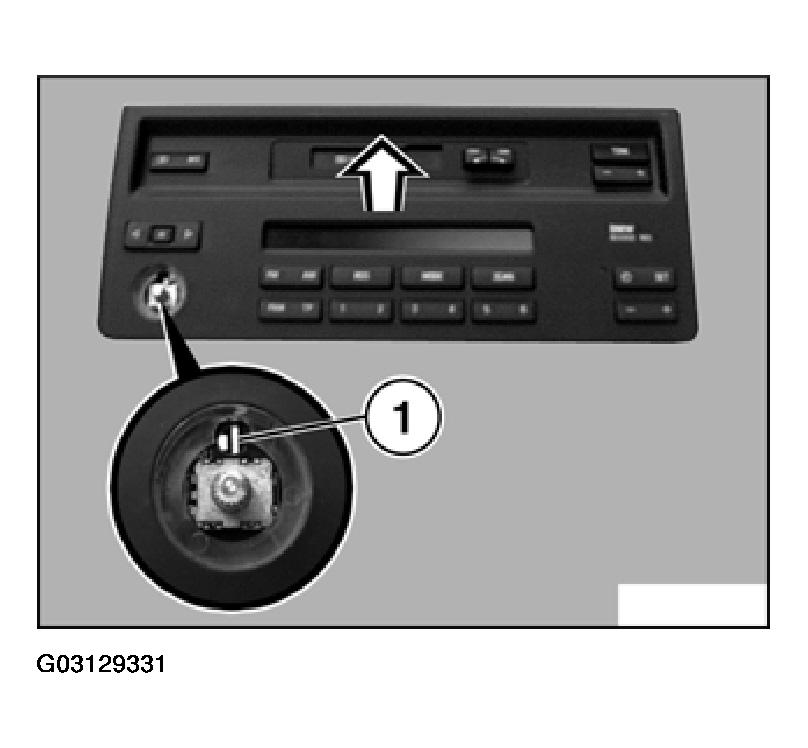

Fig 2: Inserting Screwdriver

G03129331

Courtesy of BMW OF NORTH AMERICA, INC.

Hook special tool 65 1 100 into cassette socket and pull out radio.

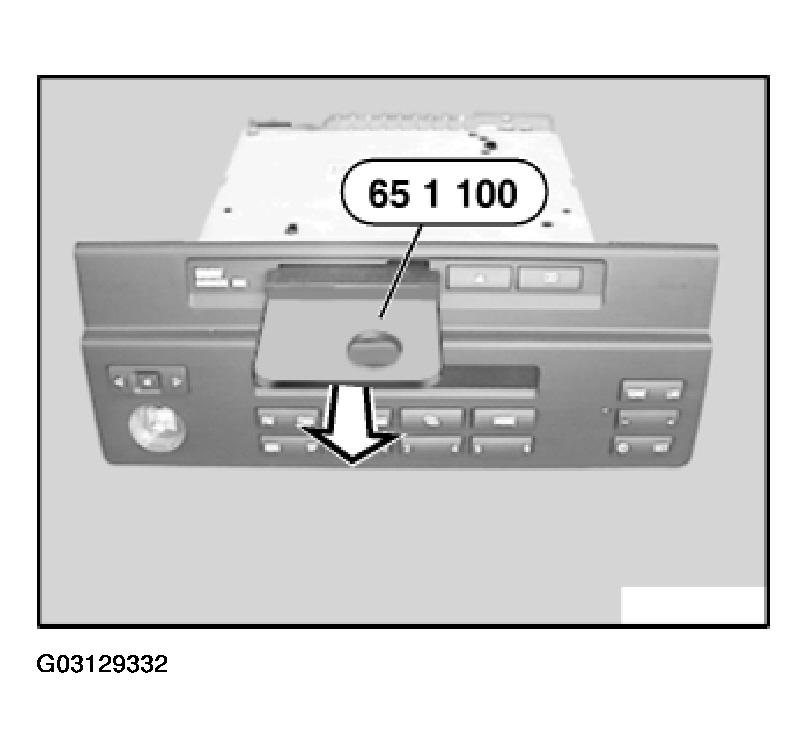

Fig 3: Hooking Special Tool Into Cassette Socket

G03129332

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Fig 4: Disconnecting Plug Connection

G03129333

Courtesy of BMW OF NORTH AMERICA, INC.

Radios with MID or IRIS

Remove MID or IRIS.

Release hexagon-socket-head cap screws on left and right and pull out radio.

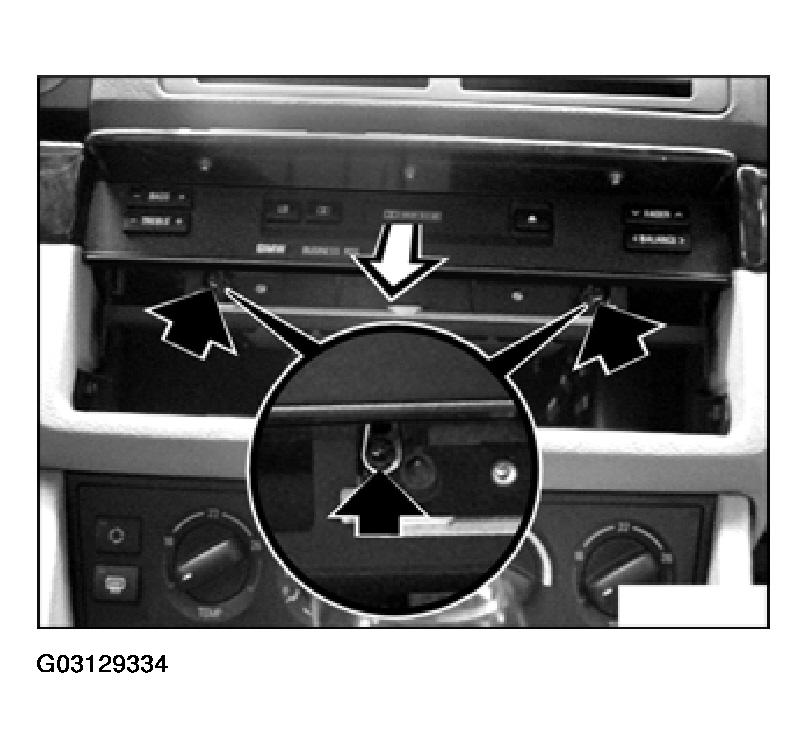

Fig 5: Removing Hexagon-Socket-Head Cap Screws

G03129334

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

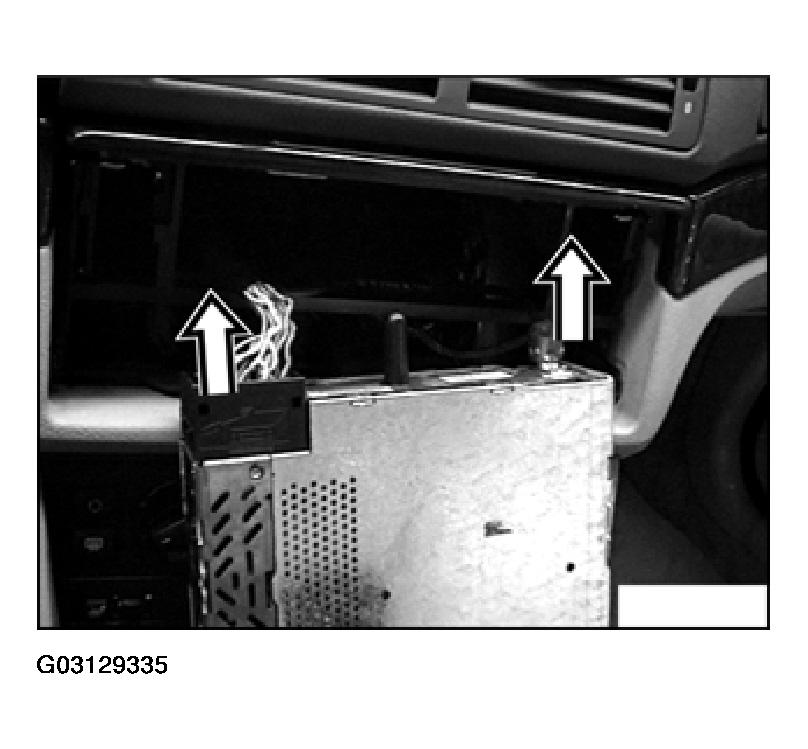

Fig 6: Disconnecting Plug Connection

G03129335

Courtesy of BMW OF NORTH AMERICA, INC.
