65 75 570 Removing and installing/replacing control unit for radio interior protection

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

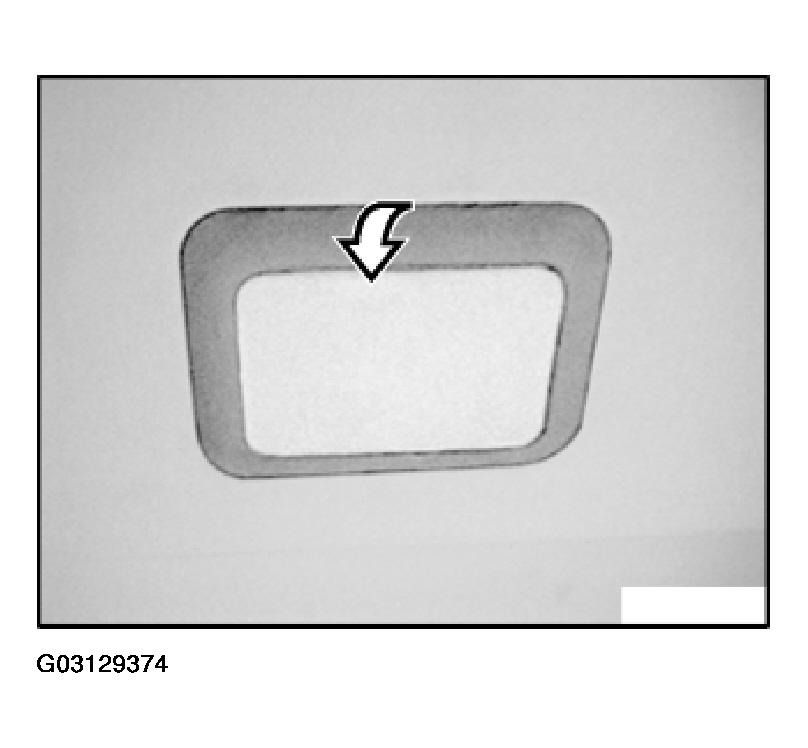

Unclip and remove cover.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

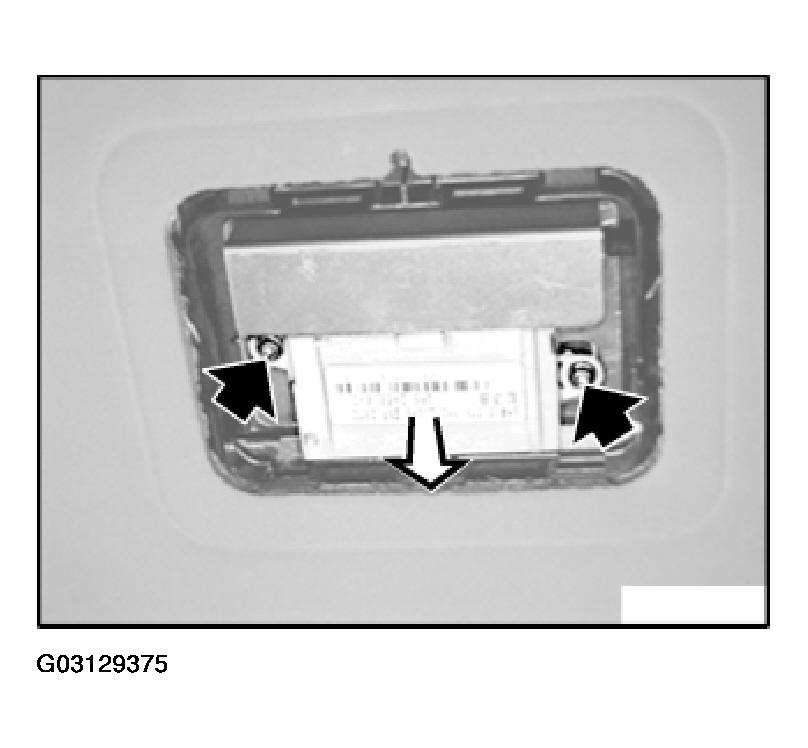

Unfasten screws and allow control unit to hang down.

IMPORTANT: The old control unit can be installed without the shield plate. The shield plate provided must always be installed.

Fig 2: Removing Control Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.

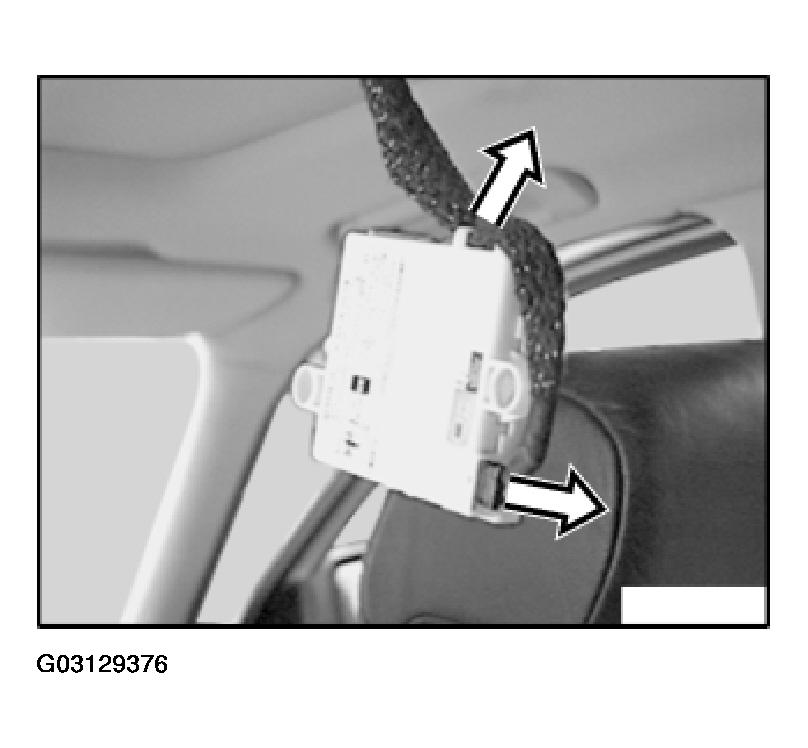

Pull off connector and thread out cable.

Fig 3: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.
