65 77 550 Removing and installing/replacing collision sensor for left or right side airbag

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions!
Incorrect handling can activate airbag and cause injury.

Turn ignition key to 0 position.

Remove left or right front seat.

Remove entrance cover strip.

Fold up carpet in area of front seat. If necessary, remove rear compartment heating duct.

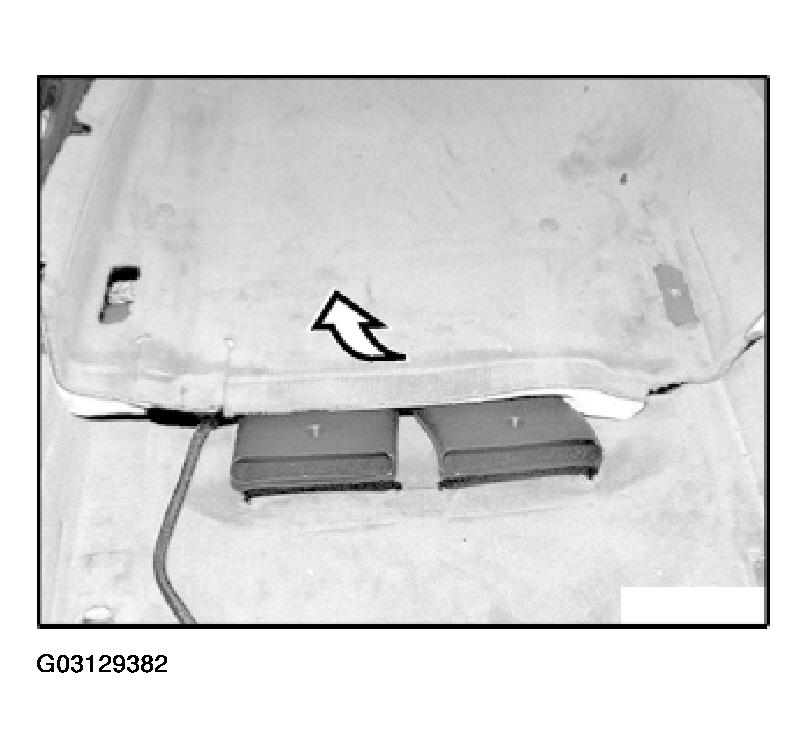

Fig 1: Folding Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

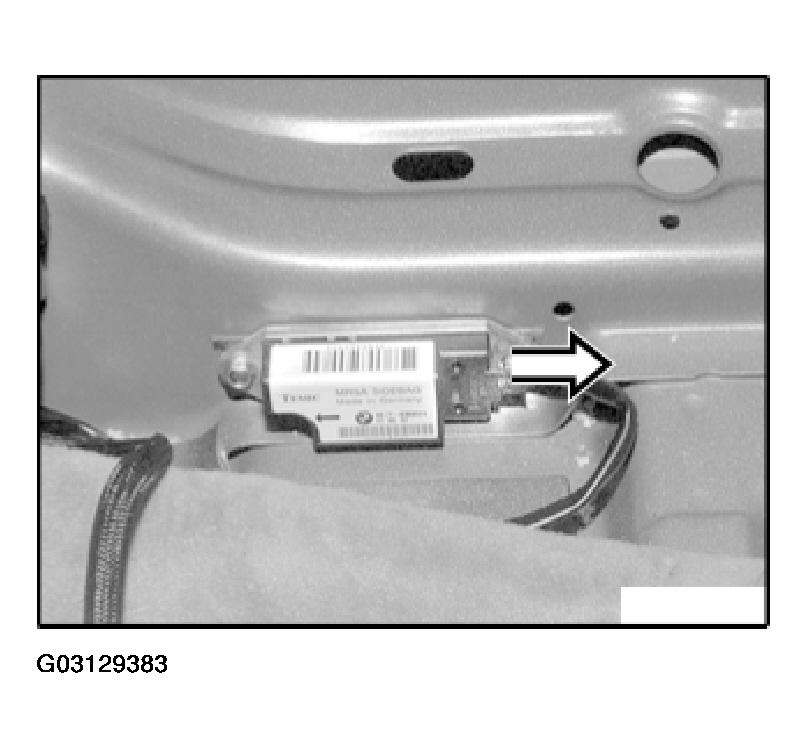

Fig 2: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove impact sensor for side airbag.

Installation:

Arrow (1) on impact sensor for side airbag must point to sill.

Observe tightening torque. Refer to AUDIO, NAVIGATION & ANTI-THEFT - TIGHTENING TORQUES .

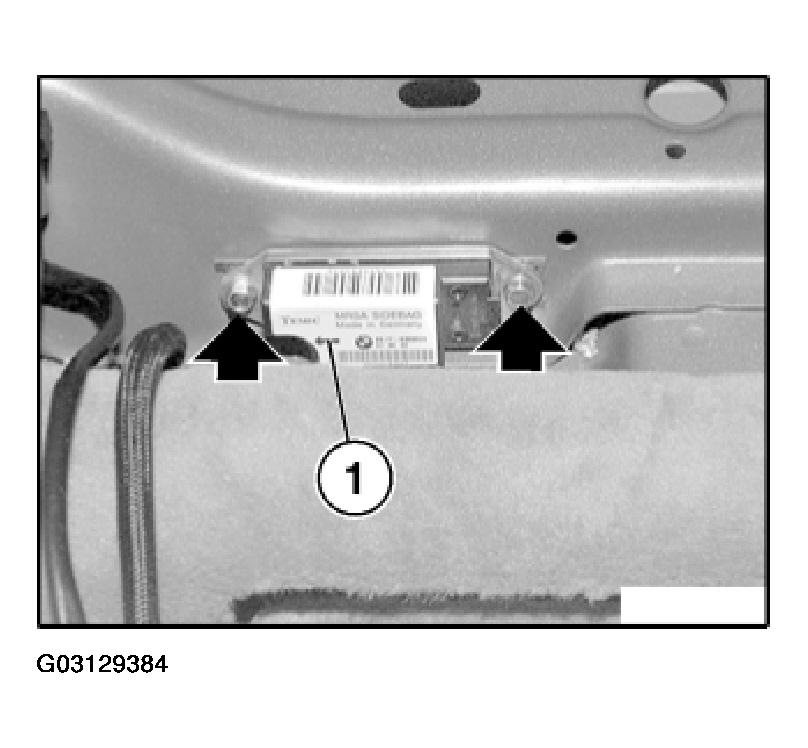

Fig 3: Removing Impact Sensor For Side Airbag

Courtesy of BMW OF NORTH AMERICA, INC.
