65 77 016 Removing and installing airbag control unit

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions!
Incorrect handling can activate airbag and cause injury.
Disconnect battery negative lead and cover.

Press ventilation grill (1) upwards slightly, lift out cup holder (2) to side and remove.

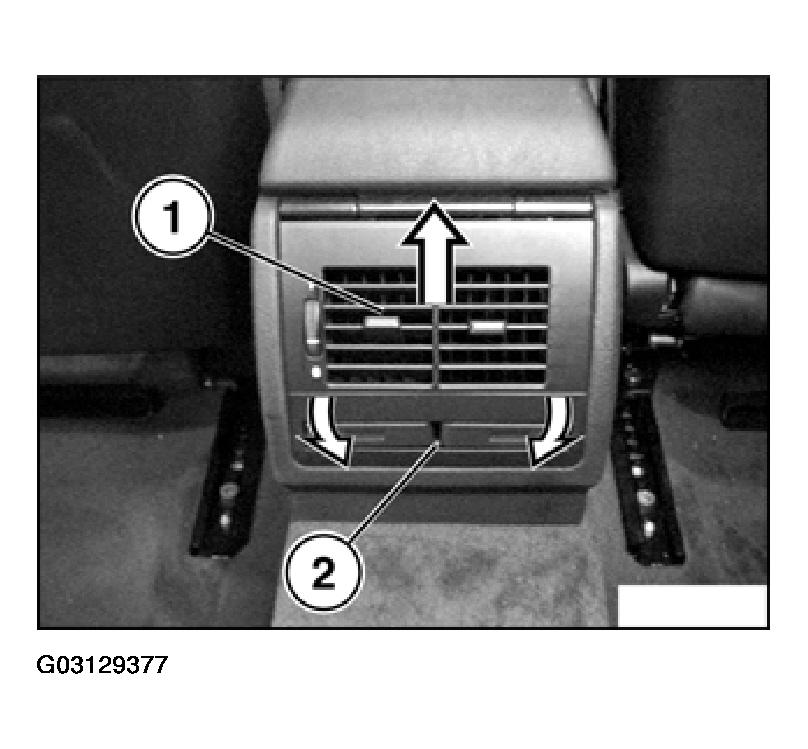

Fig 1: Removing Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Slide ventilation grill downwards and remove.

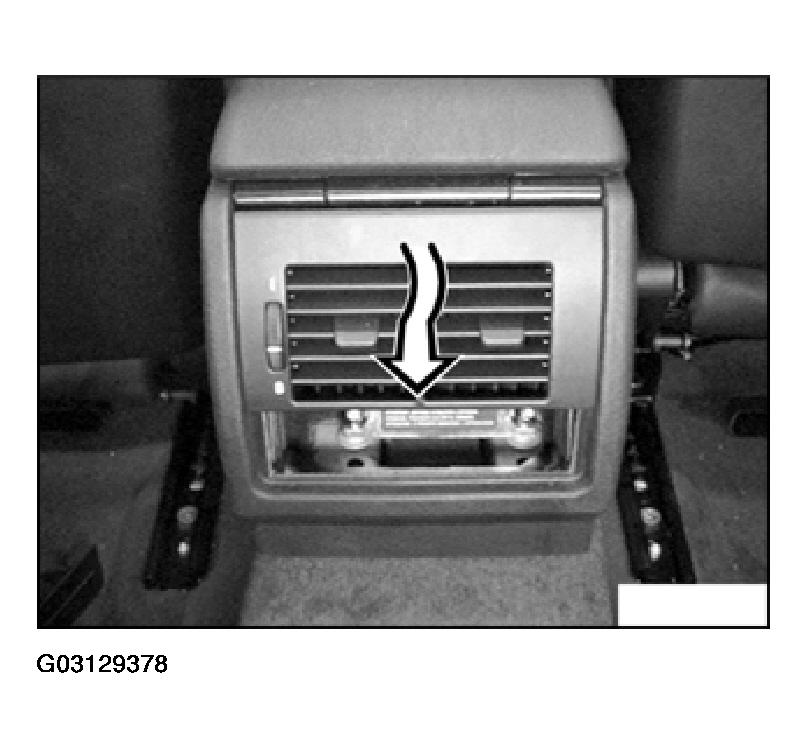

Fig 2: Sliding Ventilation Grill Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Version with bore hole (2):

Release screws (1) and (3); in version with eject box, release screws (1) only.

Raise complete center armrest.

Version without bore hole (2):

Remove center console.

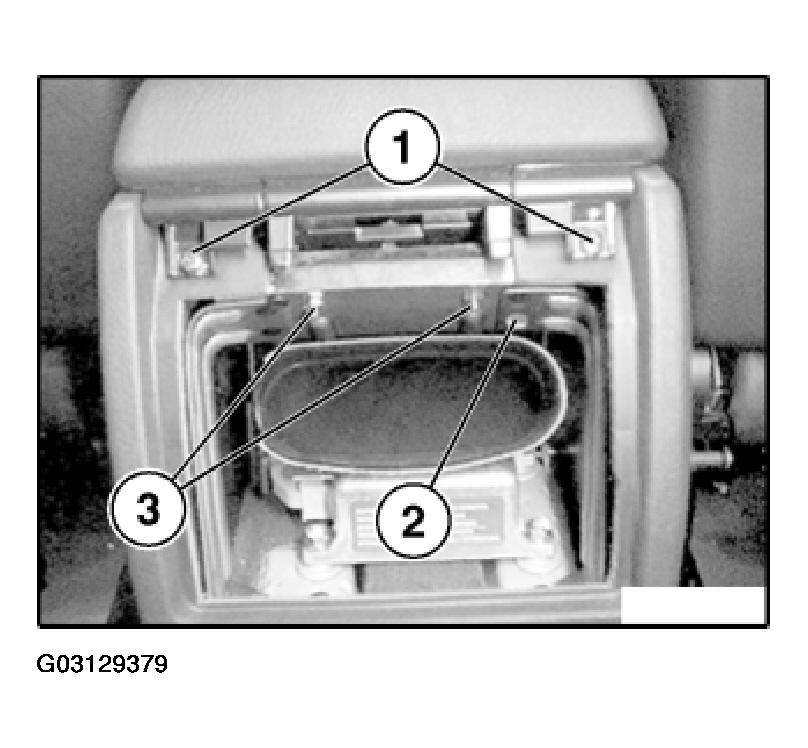

Fig 3: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and raise airbag control unit.

Installation:

Before installing airbag control unit, make sure grounding cable is resting on stud bolt (1).

Tightening torque. Refer to AUDIO, NAVIGATION & ANTI-THEFT - TIGHTENING TORQUES .

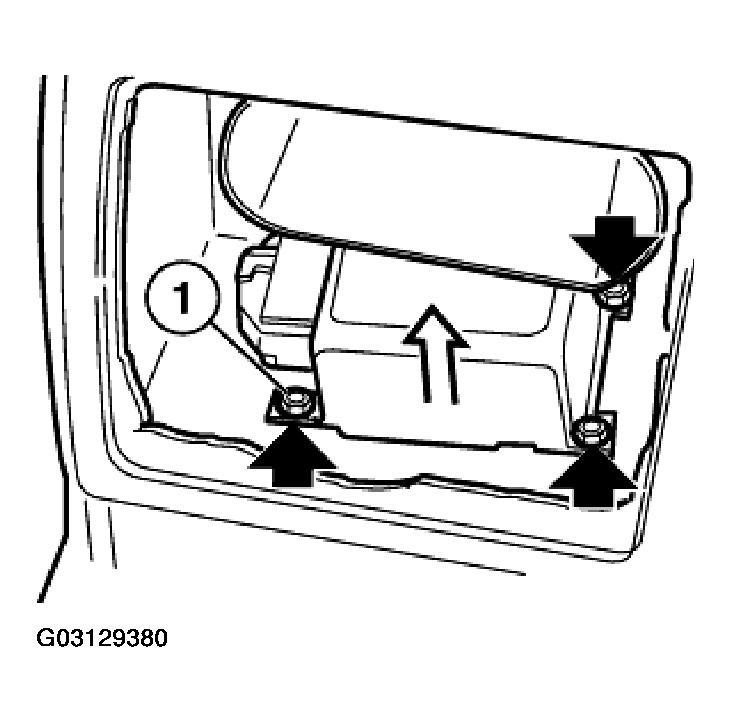

Fig 4: Removing Nuts & Raising Airbag Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection and disconnect.

Lift out airbag control unit.

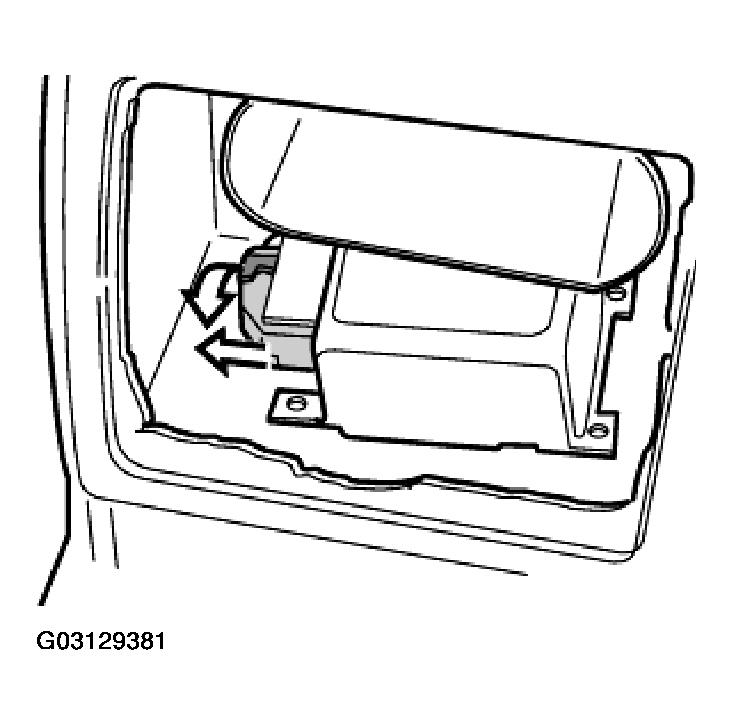

Fig 5: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
