64 22 161 Removing and installing / replacing center fresh-air grille

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Pull out lower glove compartment trim toward rear.

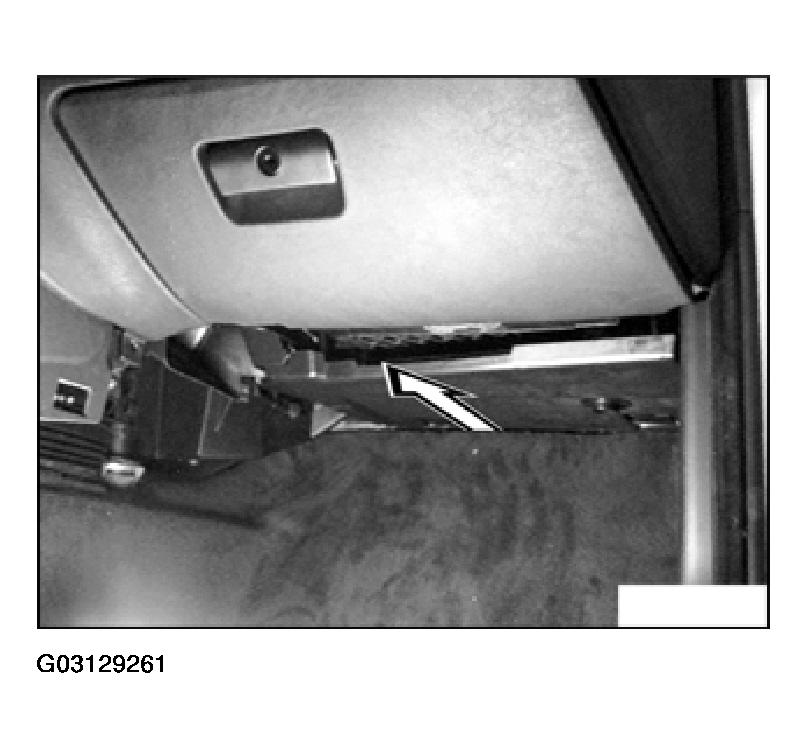

Fig 1: Removing Lower Glove Compartment Trim

G03129261

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip damper and retaining strap and fold down glove compartment.

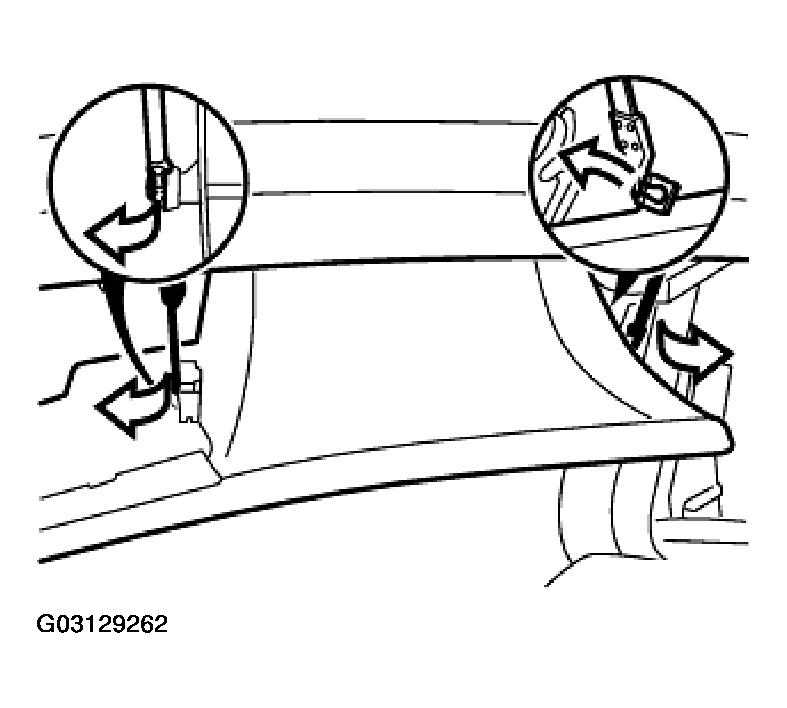

Fig 2: Loosening Damper & Retaining Strap

G03129262

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and take off trim (2).

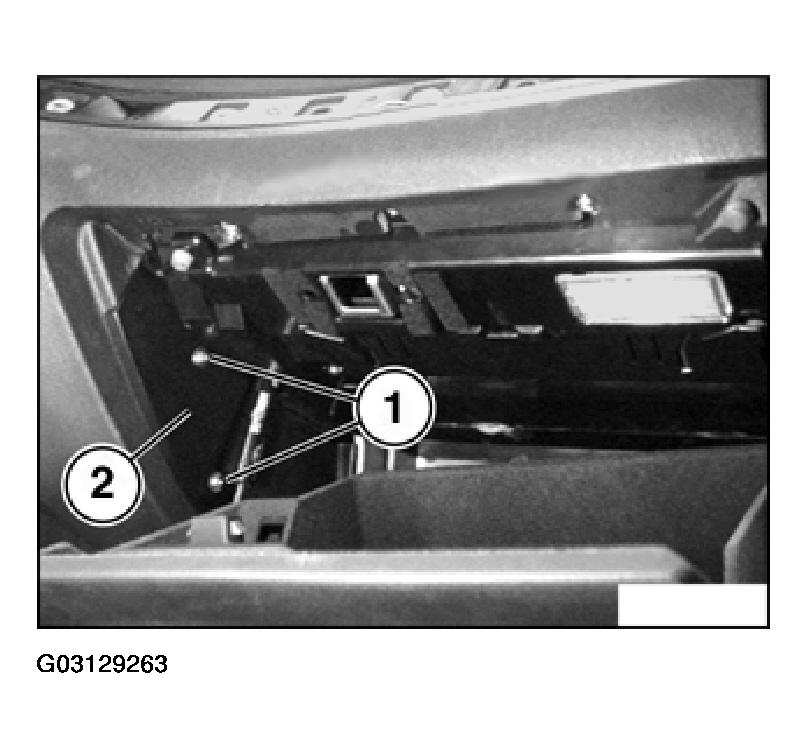

Fig 3: Releasing Screws & Removing Trim

G03129263

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable for mixing flap.

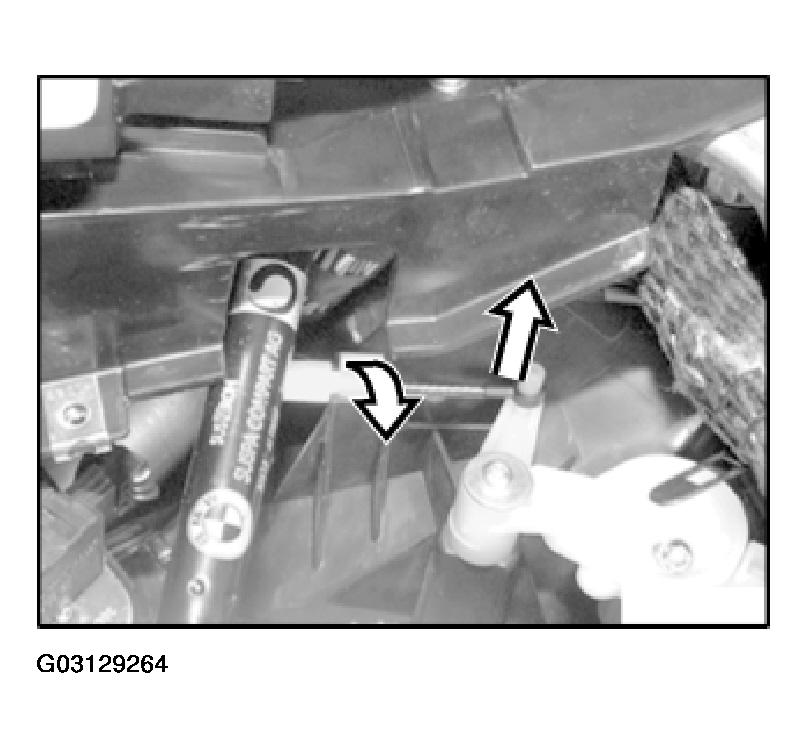

Fig 4: Releasing Mixing Flap Bowden Cable

G03129264

Courtesy of BMW OF NORTH AMERICA, INC.

Guide special tool 00 9 300 from center at an angle outward under retaining hooks (1). This releases retaining hooks.

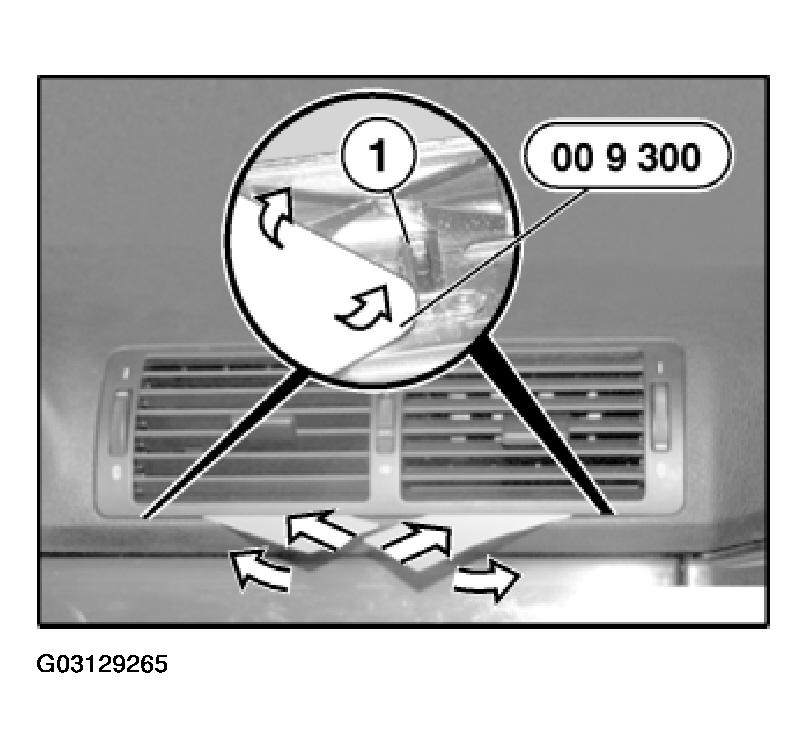

Fig 5: Assembling Special Tool

G03129265

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out lower fresh-air grill using special tools 00 9 300 and pull out with Bowden cable. Disconnect cable.

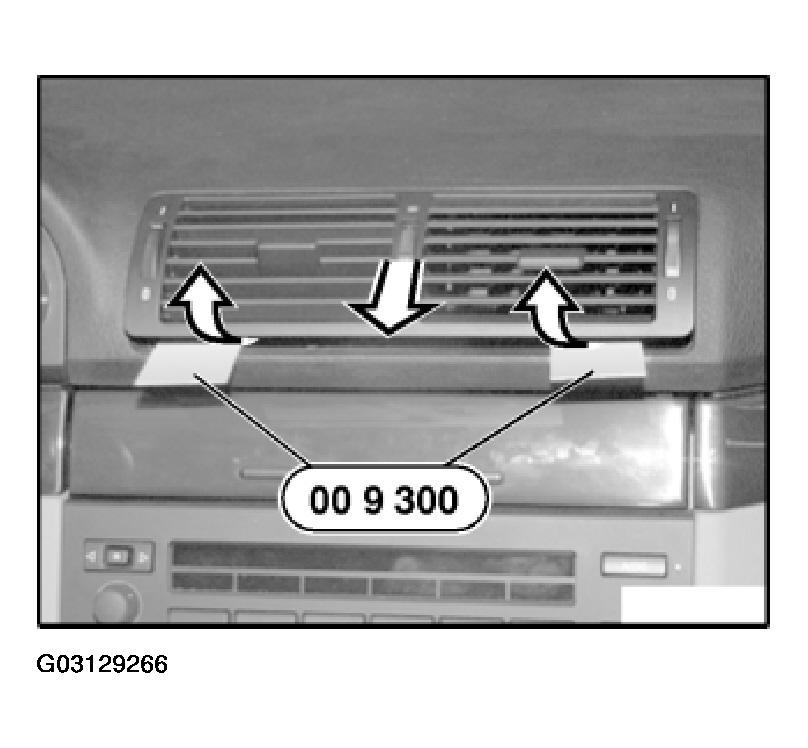

Fig 6: Removing Lower Fresh-Air Grill

G03129266

Courtesy of BMW OF NORTH AMERICA, INC.
