64 11 850 Replacing servodrive of rear compartment flap (automatic A/C, from 09/97)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove side carpet on right side of center console.

Unclip air duct for right footwell (1) and pull out in direction of arrow.

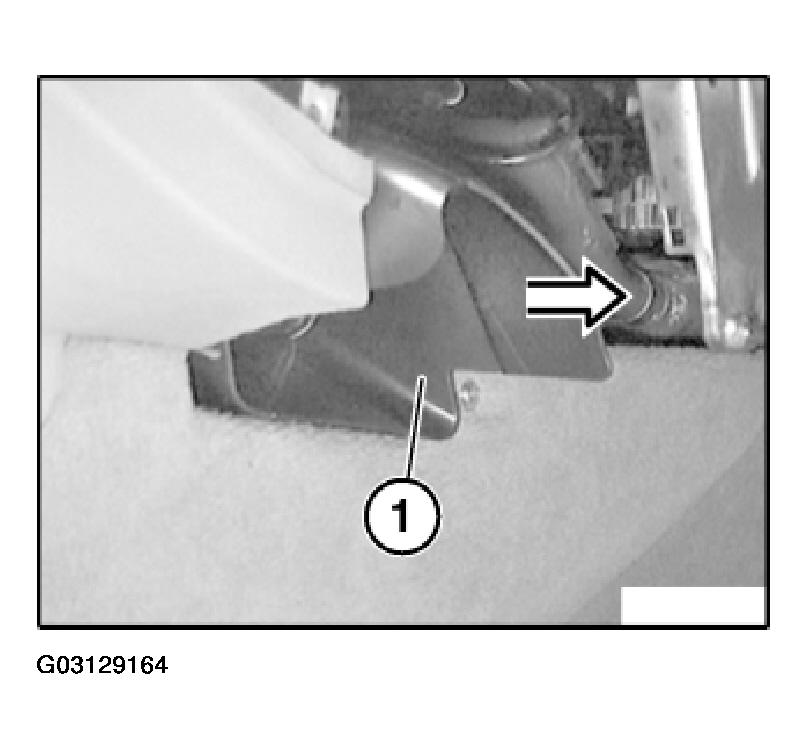

Fig 1: Removing Right Footwell Air Duct (Automatic A/C From 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

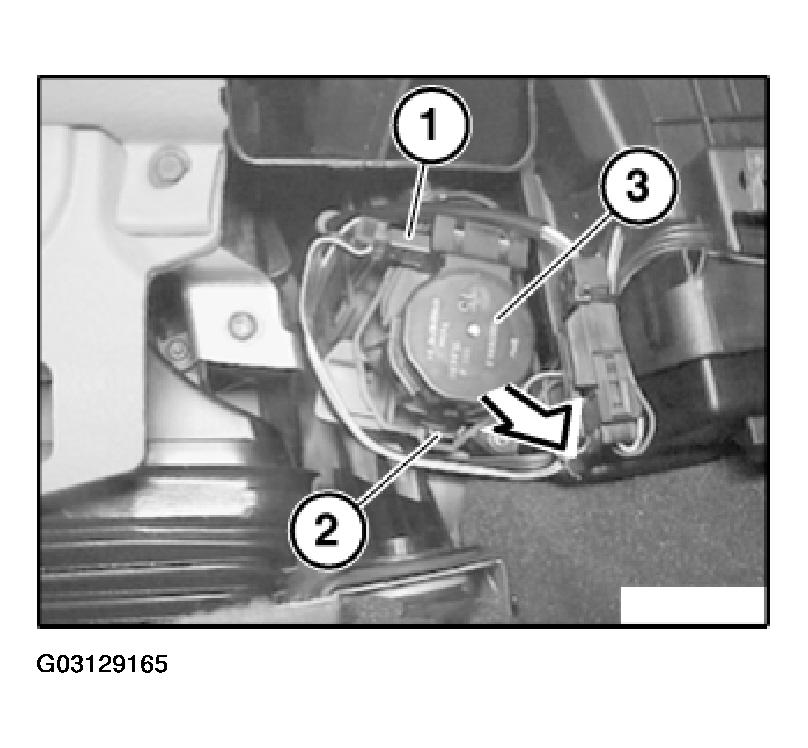

Fig 2: Removing Servodrive (Automatic A/C From 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of rear compartment flap to position of servodrive.

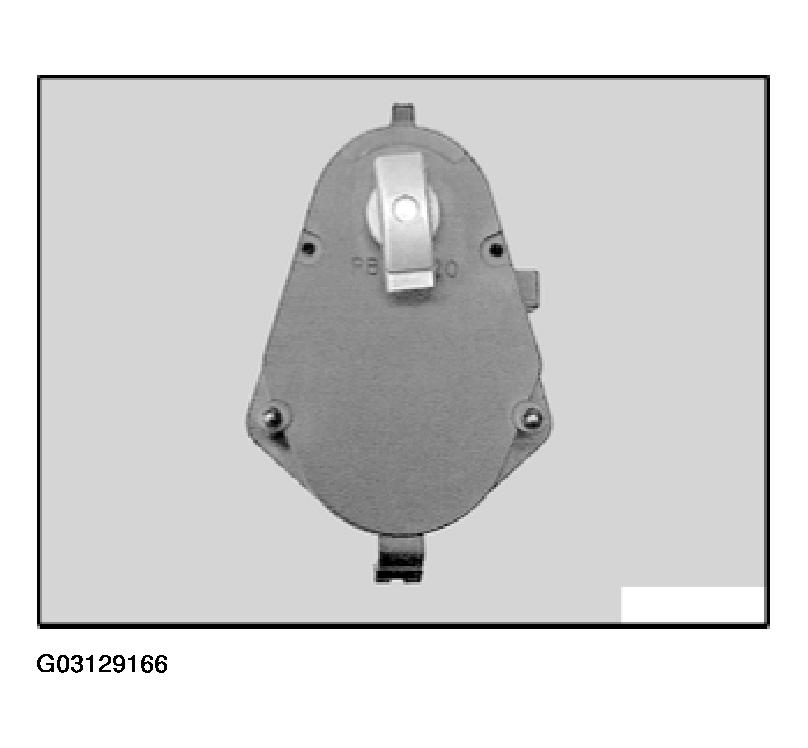

Fig 3: Identifying Servodrive (Automatic A/C From 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.
