64 11 772 Removing and installing / replacing the rear fan completely

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

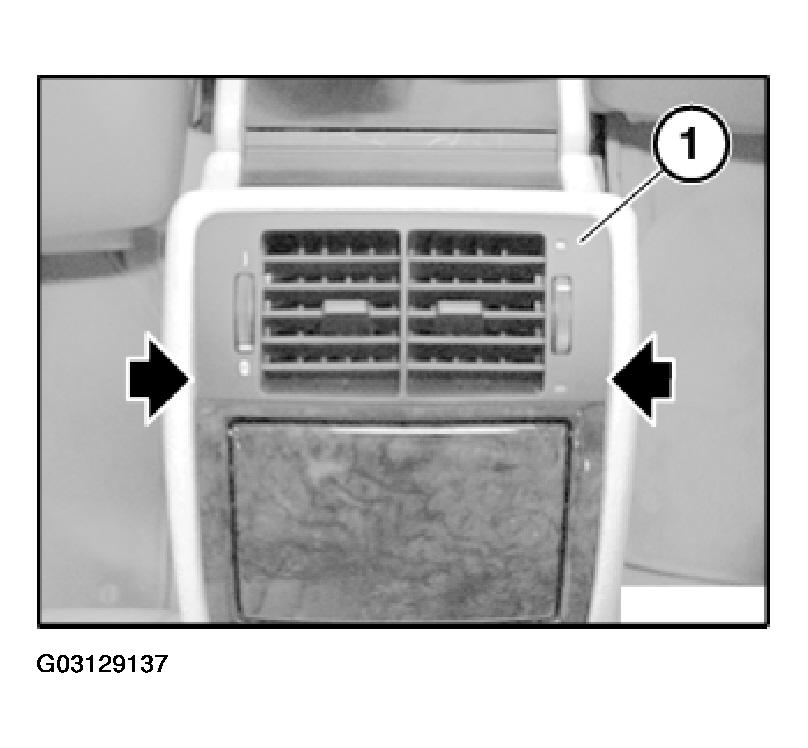

Unclip fresh air grill (1) at sides and pull out.

Installation:

When inserting fresh air grill: do not lay cables in front of air duct.

Fig 1: Releasing Fresh Air Grill

G03129137

Courtesy of BMW OF NORTH AMERICA, INC.

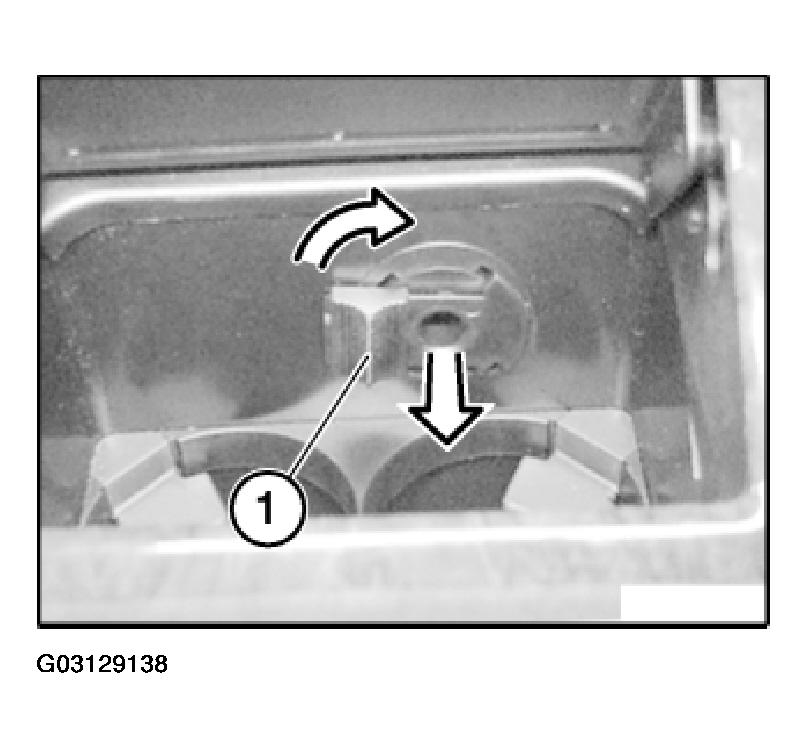

Turn adapter (1) clockwise, unlock and pull out towards rear.

Fig 2: Removing Adapter

G03129138

Courtesy of BMW OF NORTH AMERICA, INC.

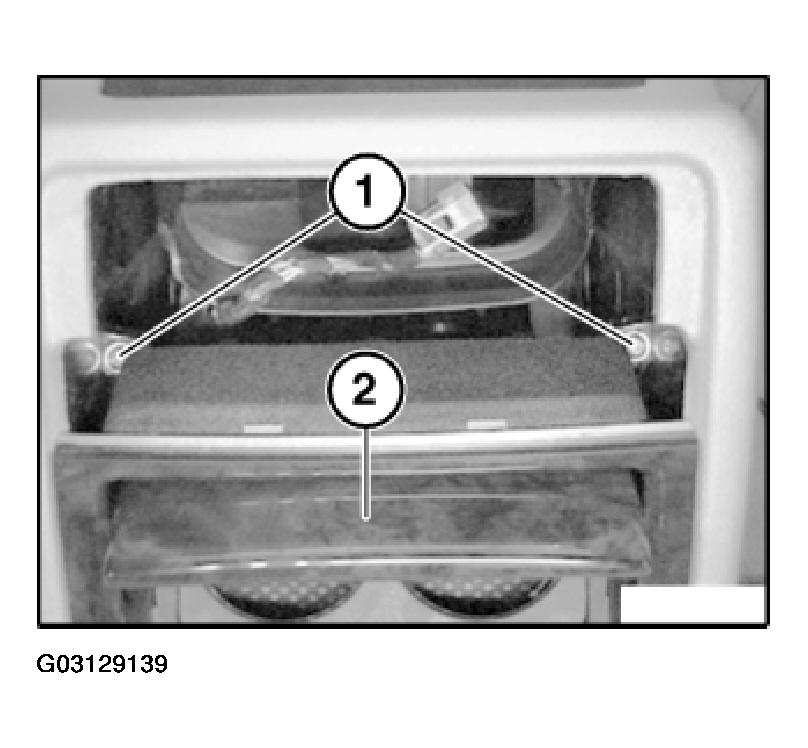

Unscrew bolts (1). Pull out storage tray (2) towards top.

Fig 3: Removing Storage Tray

G03129139

Courtesy of BMW OF NORTH AMERICA, INC.

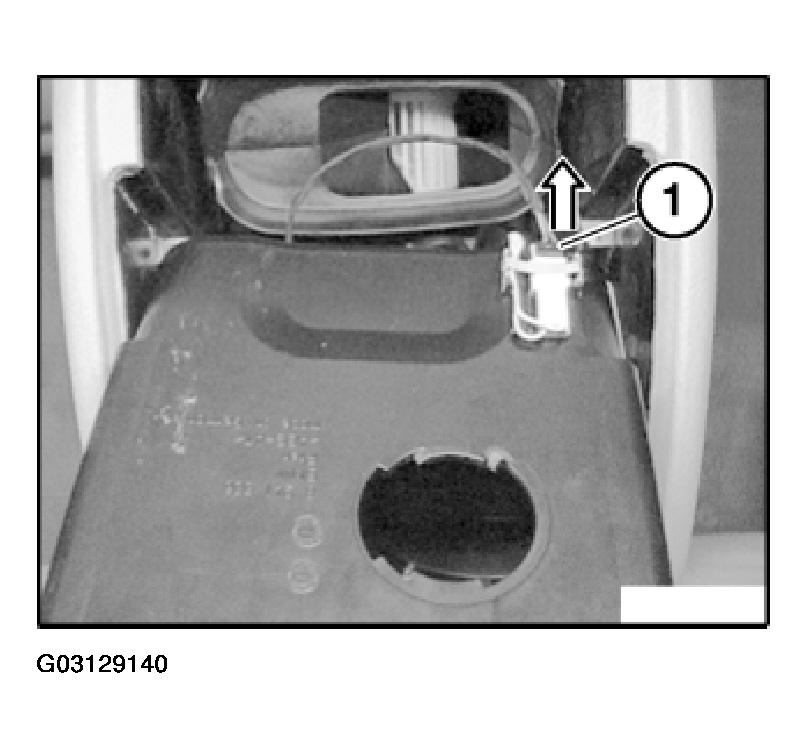

Unfasten plug connection (1).

Fig 4: Disconnecting Plug Connection

G03129140

Courtesy of BMW OF NORTH AMERICA, INC.

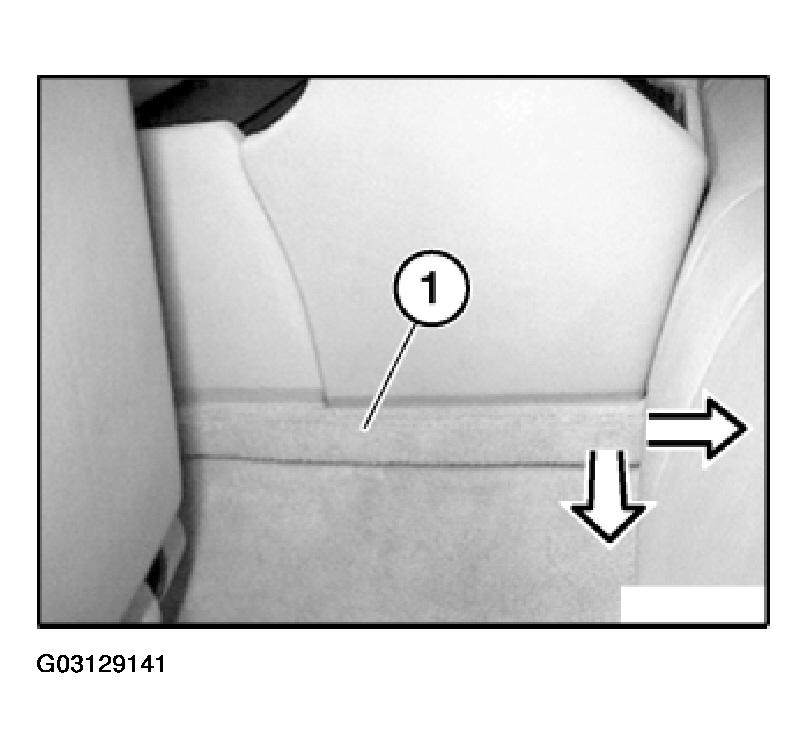

Unclip side carpet (1), left and right, at rear and pull out of clips towards rear.

Fig 5: Releasing Side Carpet

G03129141

Courtesy of BMW OF NORTH AMERICA, INC.

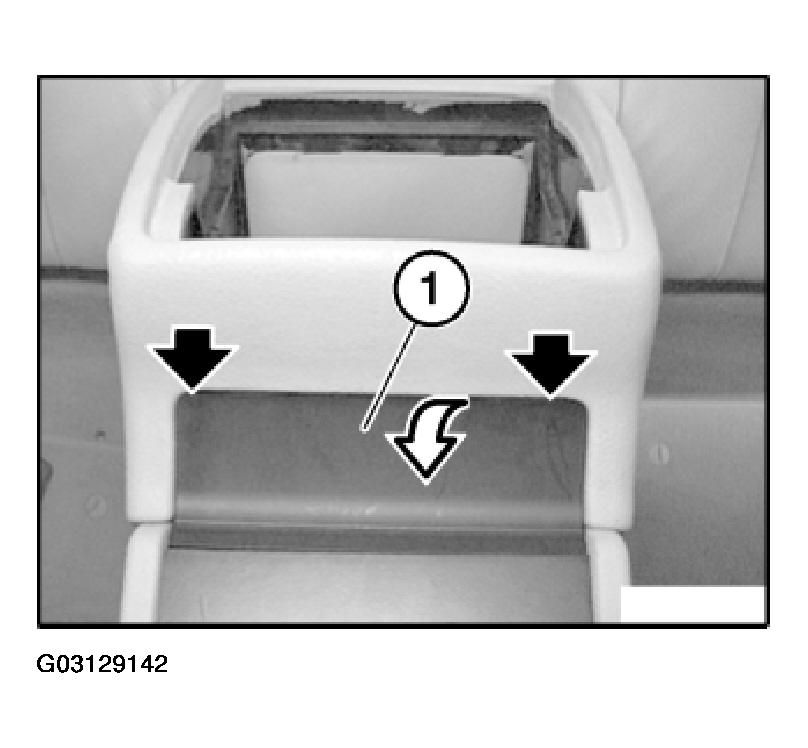

Unclip trim (1) from above and take out towards front.

Fig 6: Releasing Trim

G03129142

Courtesy of BMW OF NORTH AMERICA, INC.

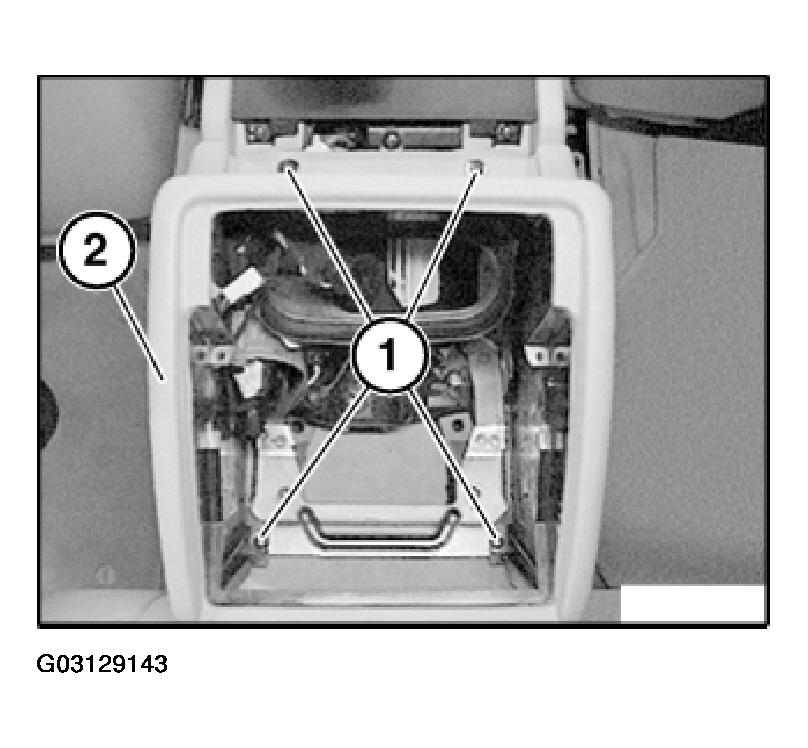

Unscrew bolts (1). Remove console (2) towards top.

Fig 7: Removing Console

G03129143

Courtesy of BMW OF NORTH AMERICA, INC.

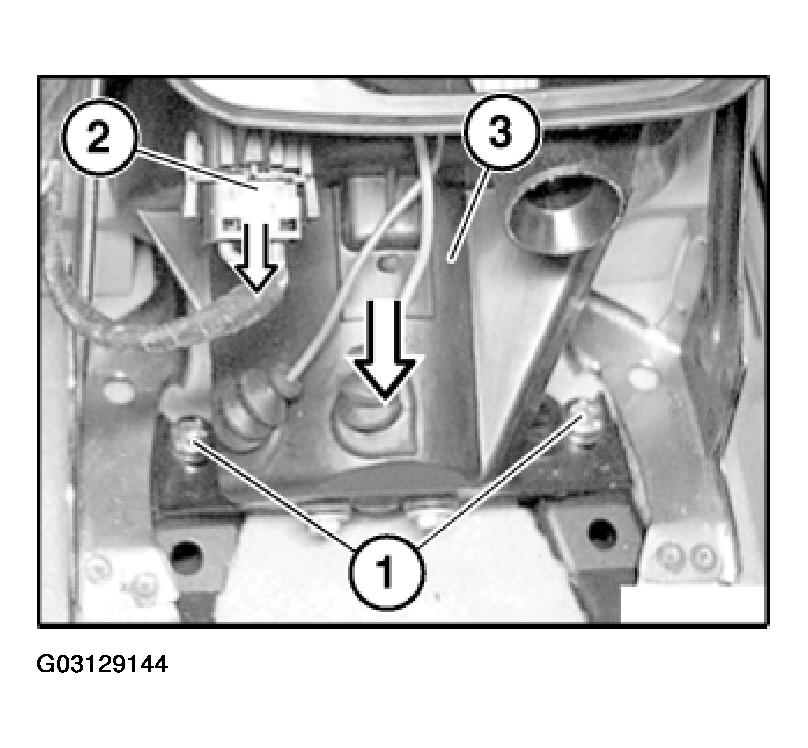

Unscrew bolts (1). Disconnect connector (2). Pull out rear fan (3) towards rear.

Installation:

Make sure air duct is correctly seated.

Fig 8: Removing Rear Fan

G03129144

Courtesy of BMW OF NORTH AMERICA, INC.
