64 11 748 Removing and installing heater controls (A/C control)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

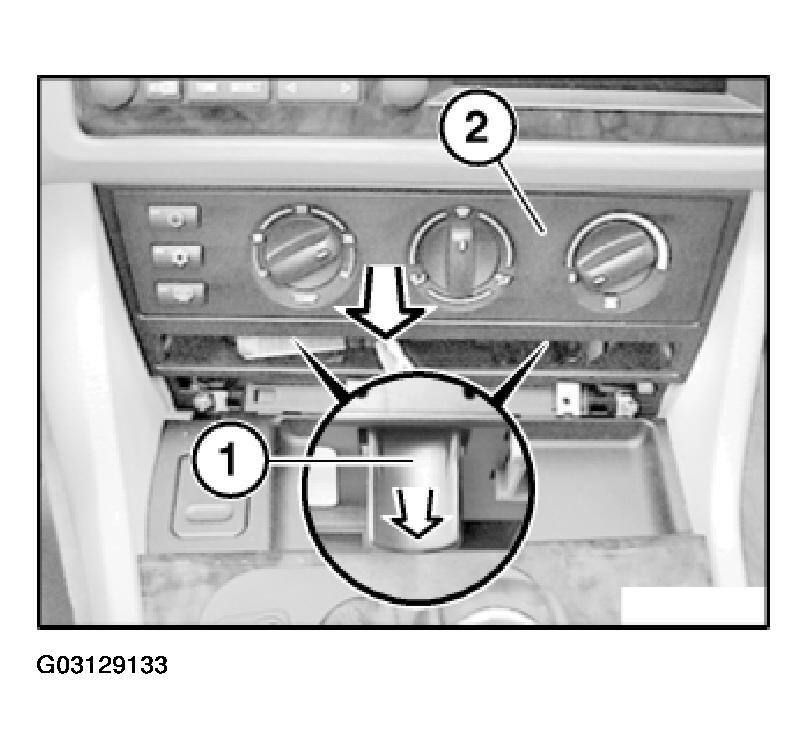

Remove switch unit from center console.

Press retaining hook (1) upwards through opening for switch unit.

Remove heating controls (2).

Fig 1: Removing Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.

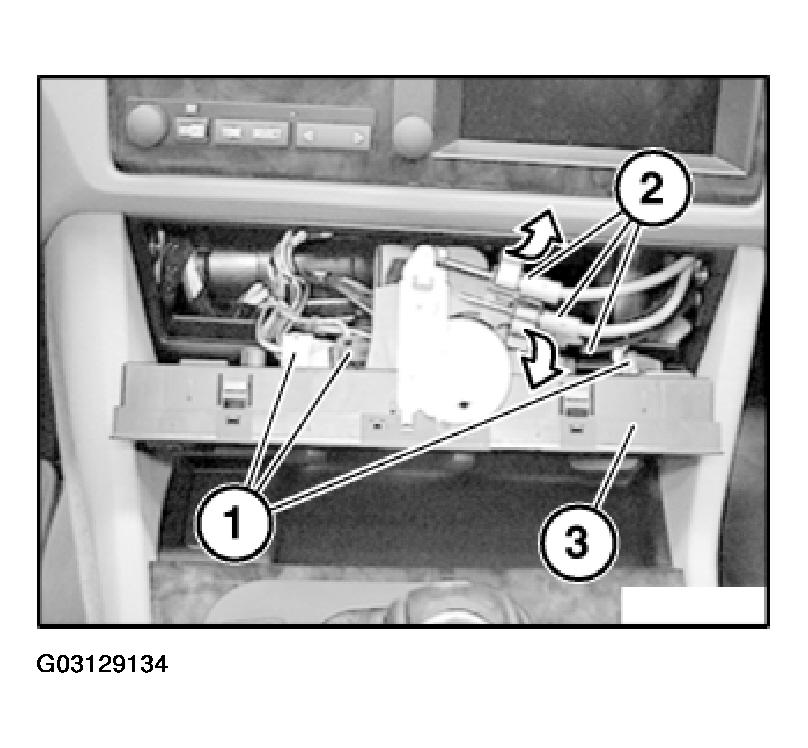

Disconnect plug connections (1).

Unclip Bowden cables (2) and remove.

Installation:

Pay attention to color coding of Bowden cables (2).

Remove heating controls (3).

Fig 2: Removing Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.
