64 11 271 Replacing water valve for heater

M52, M54 only:

Remove intake filter housing. See 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54)

Water valve (Duo) with auxiliary water pump:

Unlock plug connections (1) and disconnect.

Release hose clamps (2) and detach hoses.

Pull water valve for heater (3) in direction of arrow out of rubber mounts.

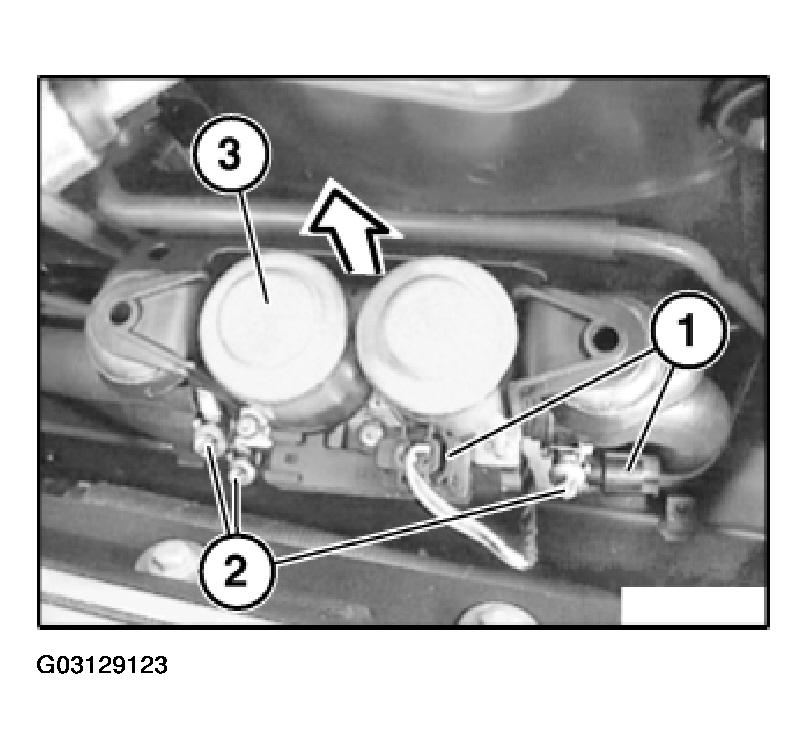

Fig 1: Removing Heater Water Valve (With Auxiliary Water Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure guides (1) and (2) are correctly seated.

If necessary, replace rubber mount.

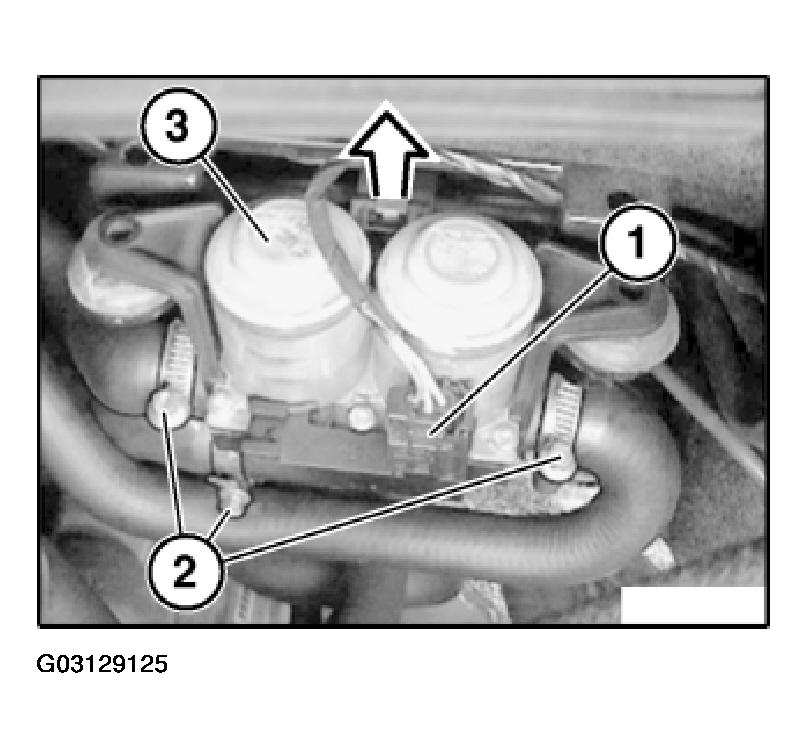

Fig 2: Identifying Guides Proper Seating (With Auxiliary Water Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Water valve (Duo) without auxiliary water pump:

Unlock plug connection (1) and disconnect.

Release hose clamps (2) and detach hoses.

Pull water valve for heater (3) in direction of arrow out of rubber mounts.

Fig 3: Removing Heater Water Valve (Without Auxiliary Water Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure guides (1) and (2) are correctly seated.

If necessary, replace rubber mount.

Water valve (Mono) without auxiliary water pump:

Fig 4: Identifying Guides Proper Seating (Without Auxiliary Water Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Release hose clamps (2) and detach hoses.

Pull water valve for heater (3) in direction of arrow out of rubber mounts.

Fig 5: Removing Heater Water Valve (Mono - Without Auxiliary Water Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure guides (1) and (2) are correctly seated.

If necessary, replace rubber mount.

Fig 6: Identifying Guides Proper Seating (Mono - Without Auxiliary Water Pump)

Courtesy of BMW OF NORTH AMERICA, INC.

All:
