64 11 262 Removing and installing/replacing auxiliary water pump (on fan cowl)
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Follow instructions for working on cooling system.
Remove front splash guard. See 13 32 051 REPLACING FUEL FILTER (M54)
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.

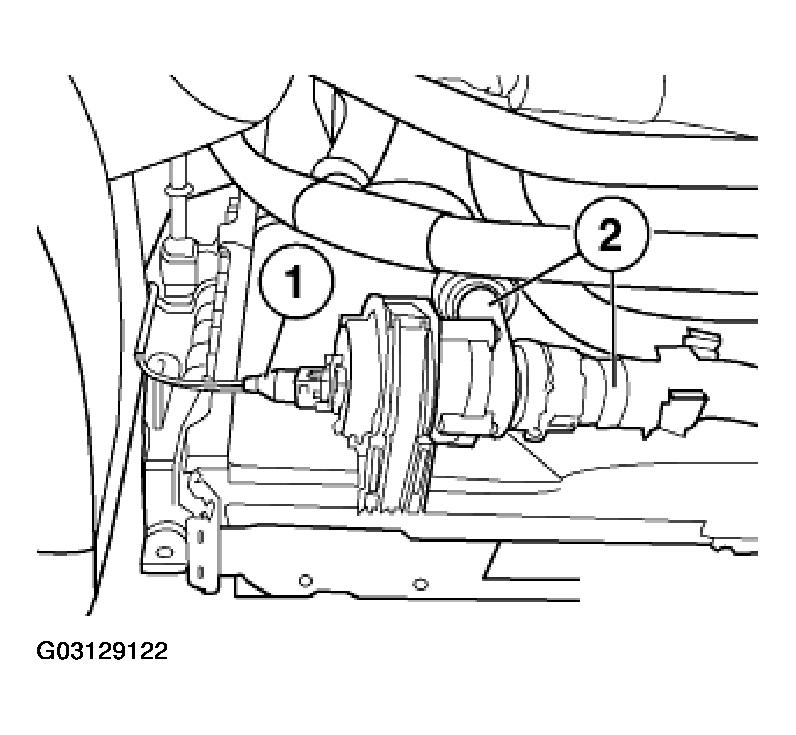

Disconnect plug connection (1).
Disconnect water hoses (2).
Detach holder and remove auxiliary water pump.
Installation:
Filling and bleeding the cooling system.
