64 53 510 Removing and installing / replacing drier flask for air conditioner

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A/C system is drawn off.
Follow instructions for dryer bottle replacement.
Remove complete right headlight. See 63 12 002 REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT
Remove holder for headlight mounting.

Unfasten screws.

NOTE: Pull pressure and intake pipes upwards and fit with plugs if A/C system remains open for longer than one hour.

Installation:

Replace sealing rings.

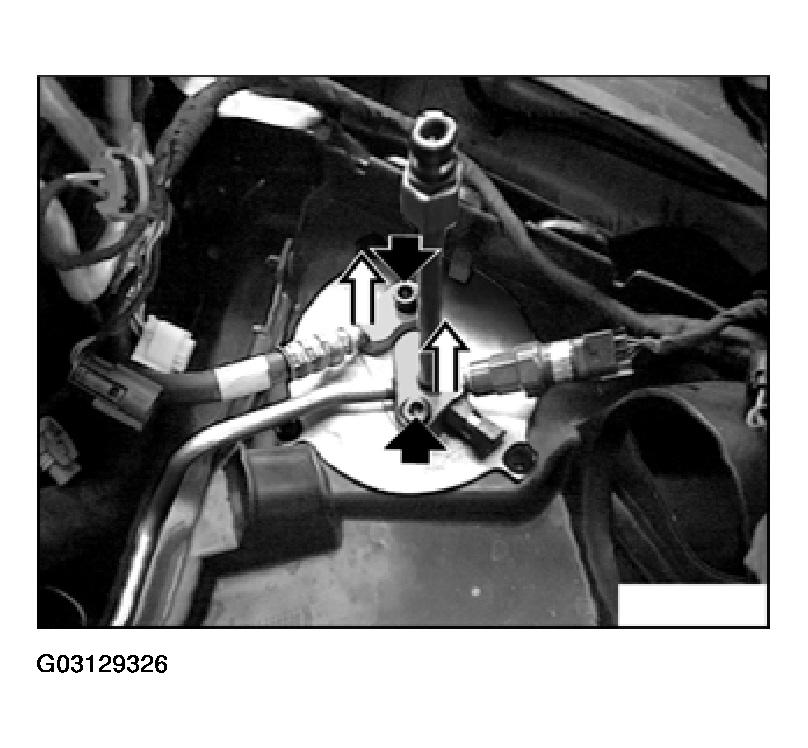

Fig 1: Releasing Screws & Pulling Pressure & Suction Pipe & Fitting Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and pull drier flask upwards to remove.

NOTE: In warranty cases, seal line openings with plugs of new dryer bottle.

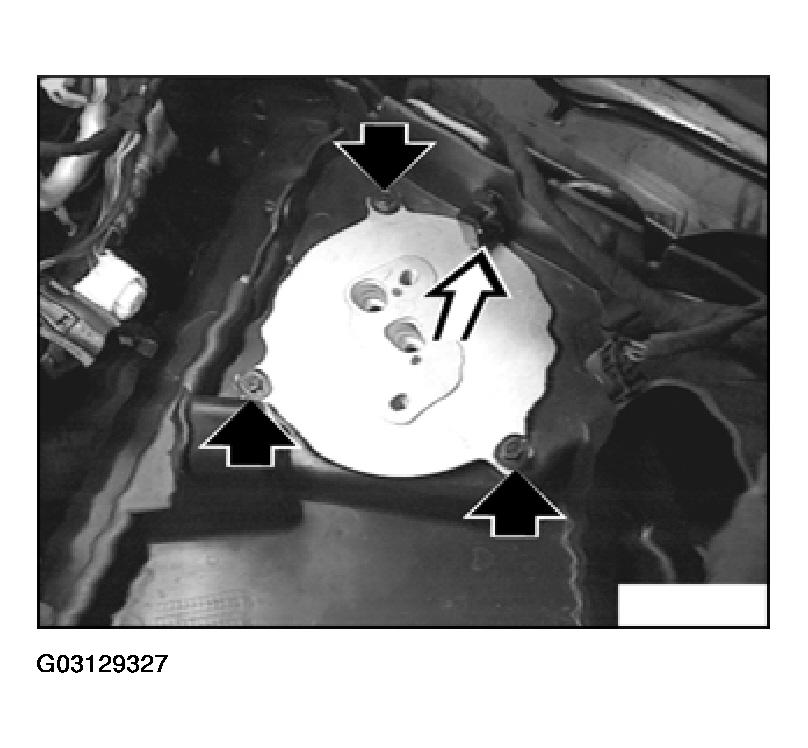

Fig 2: Releasing Screw & Pulling Drier Flask

Courtesy of BMW OF NORTH AMERICA, INC.
