64 12 650 Removing and installing / replacing receiver/Telestart of independent heating

Installation location E38: on wheel arch, left.

Partially remove backrest or rest side section for rear seat.

Pull off connector, unfasten screw and lift out Telestart receiver.

Installation instructions:

Receiver must be re-initialized after replacement.

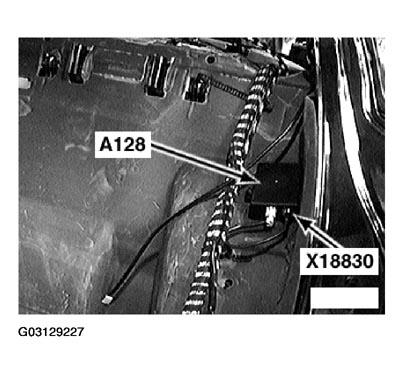

Fig 1: Removing Telestart Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation location E 39  saloon/sedan: on wheel arch, right. Partially remove backrest or rest side section for rear seat.

Pull off connector, unfasten screw and lift out Telestart receiver.

Installation instructions:

Receiver must be re-initialized after replacement.

Installation location E39 Touring: on trunk floor

Remove trunk floor trim panel.

Pull off connector, unfasten screw and lift out Telestart receiver.

Installation instructions:

Receiver must be re-initialized after replacement.

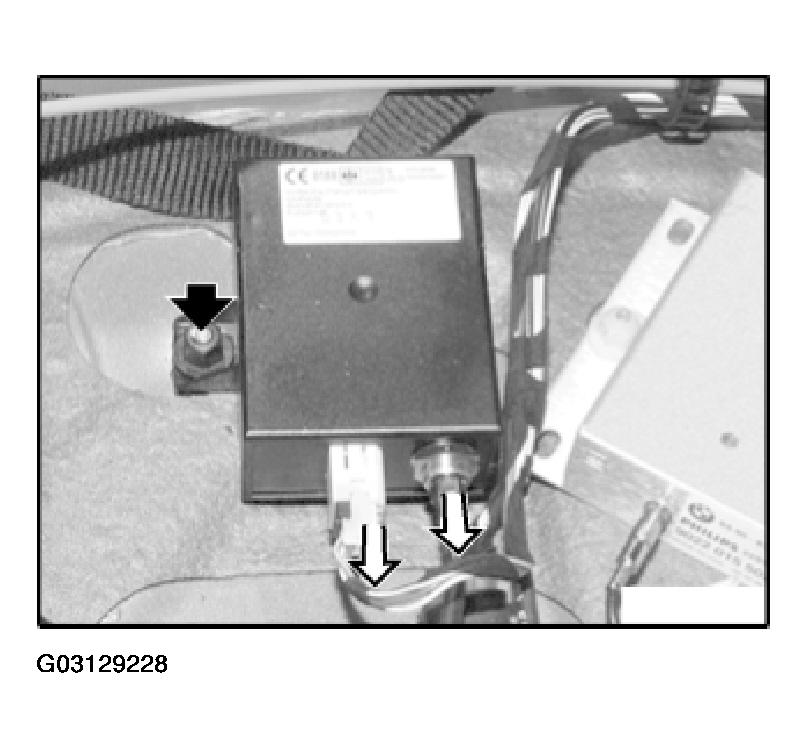

Fig 2: Removing Telestart Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Initialization

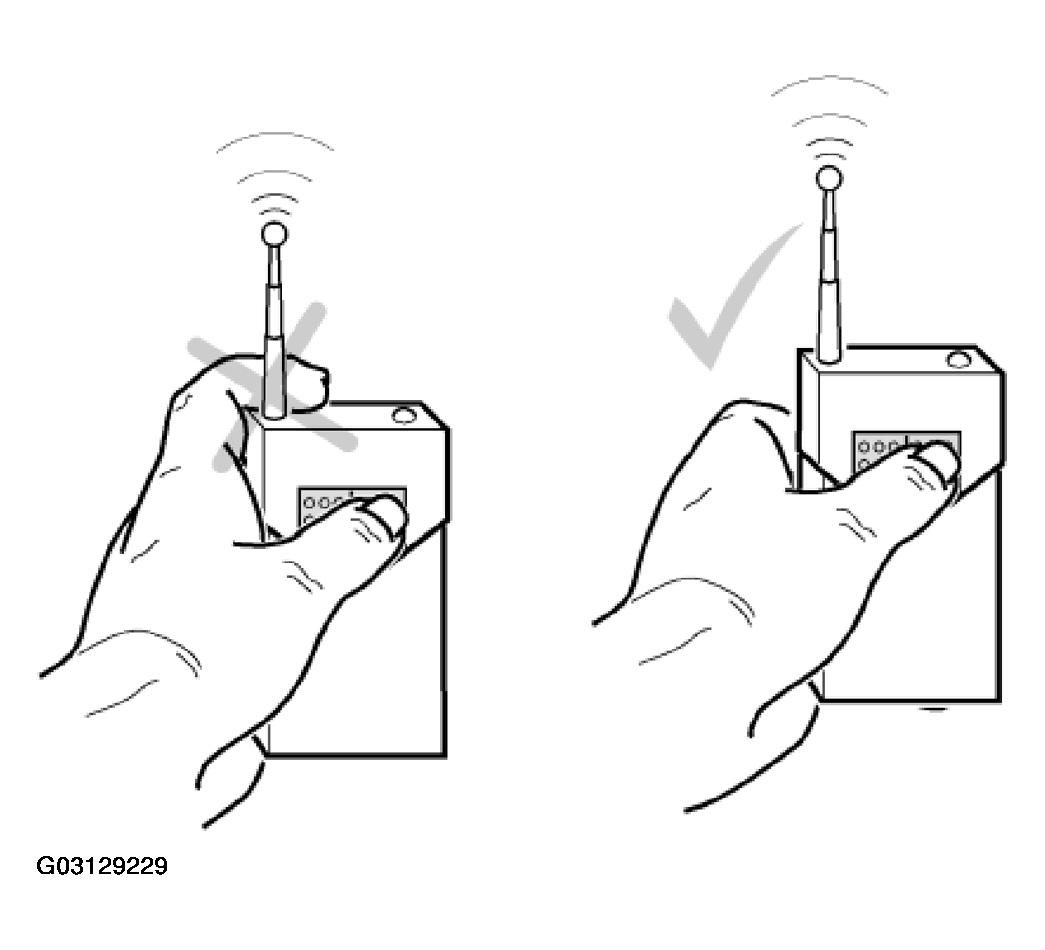

Fig 3: Identifying Telestart Receiver Proper Initialization Method

Courtesy of BMW OF NORTH AMERICA, INC.

With a new Telestart receiver both hand transmitters must be re-initialized.

1. Interrupt voltage supply of receiver by pulling fuse as per circuit diagram for approx. 10 seconds.
2. Insert fuse. Briefly actuate switch-off rocker switch of hand transmitter within next 3 seconds.
3. Briefly actuate switch-on rocker switch of hand transmitter within next 5 seconds.
4. After another 3 seconds remote control is ready for operation.
5. Briefly actuate switch-off rocker switch of hand transmitter; switch-on indicator lamp then no longer flashes.
6. Then carry out function check.
