64 12 590 Removing and installing or replacing muffler

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

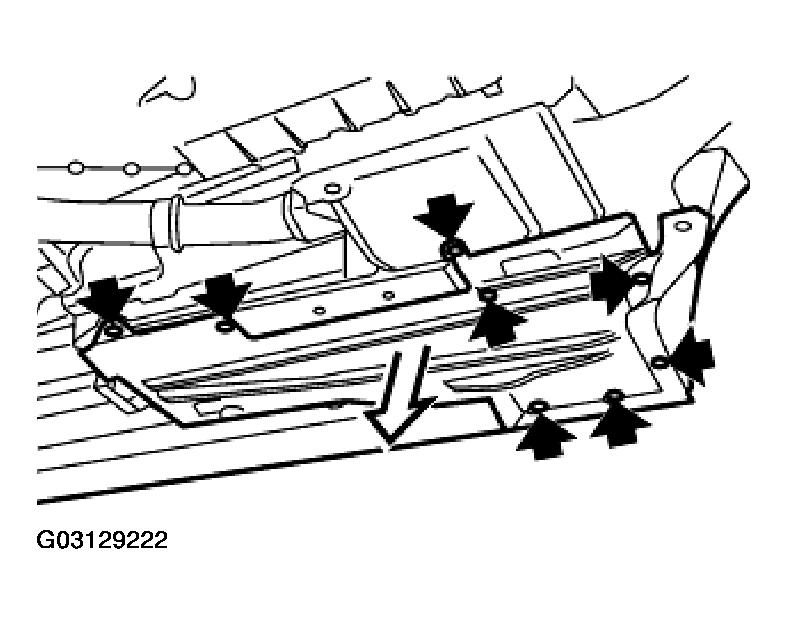

Release screws or expansion rivets and remove floor trim.

Fig 1: Removing Floor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

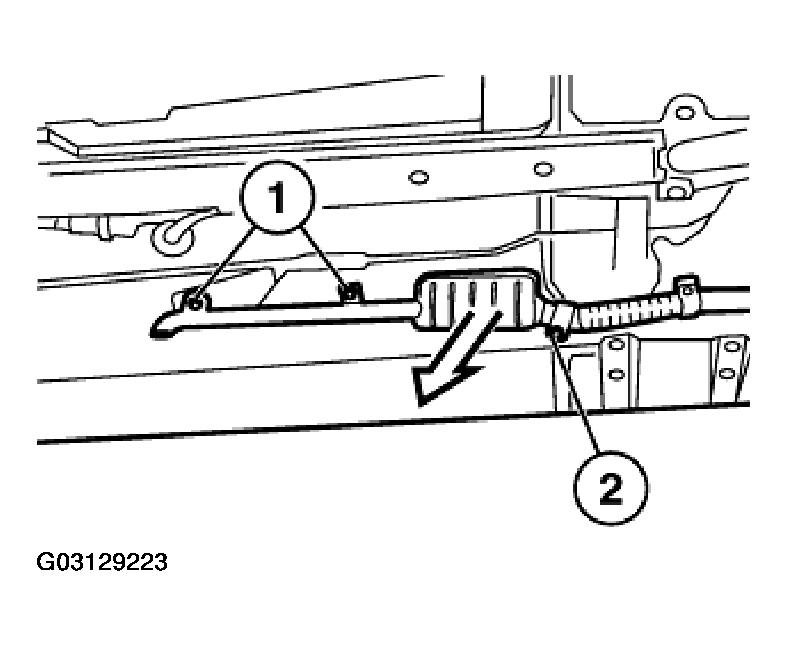

Thermo Top S:

Release screws (1) and clamp (2).

Remove muffler.

Fig 2: Removing Muffler (Thermo Top S)

Courtesy of BMW OF NORTH AMERICA, INC.

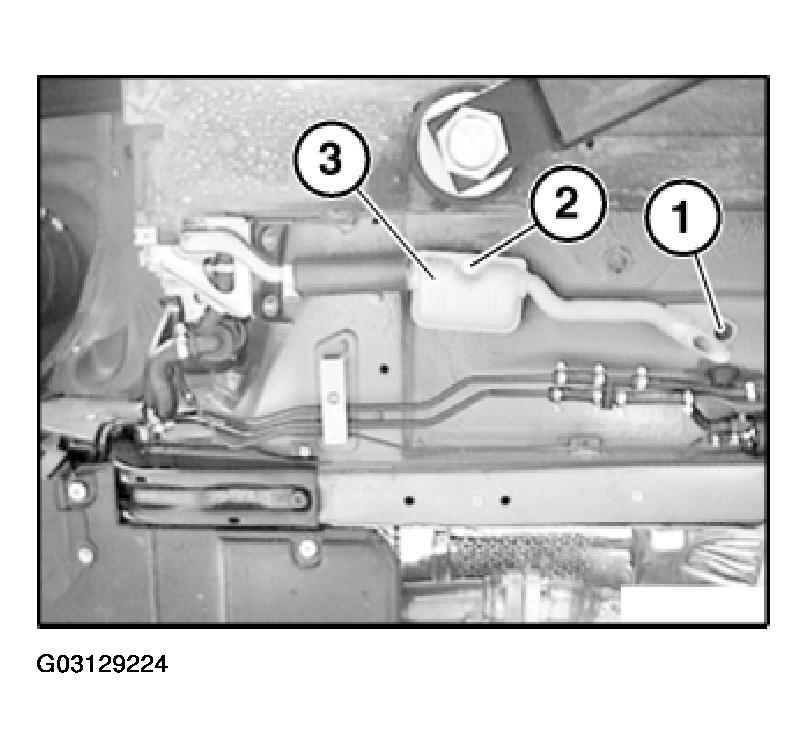

Thermo Top Z/C:

Release nut (1) and screw (2).

Remove muffler (3).

Fig 3: Removing Muffler (Thermo Top Z/C)

Courtesy of BMW OF NORTH AMERICA, INC.
