63 21 180 Removing and installing/replacing left or right rear light (saloon/sedan)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Up to 09/2000:

Remove socket housing for rear light.

Release nuts and remove outer rear light.

Fig 1: Removing Outer Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

Disconnect plug connection (1).

Release nuts (2) and remove outer rear light.

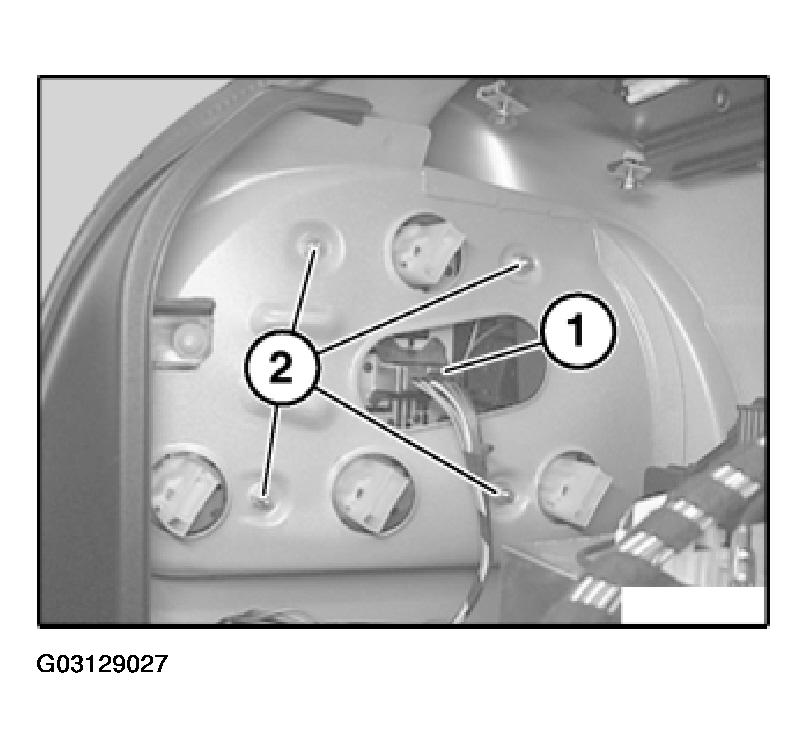

Fig 2: Removing Outer Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Only replace:

If necessary, convert or replace bulbs.

Installation:

Make sure rear light seal is correctly seated, replace if necessary.

Make sure there is a uniform gap all round between rear light and body side panel, gap approx. 2 mm.
