63 21 055 Replacing a socket housing for rear light on left or right (saloon/sedan)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

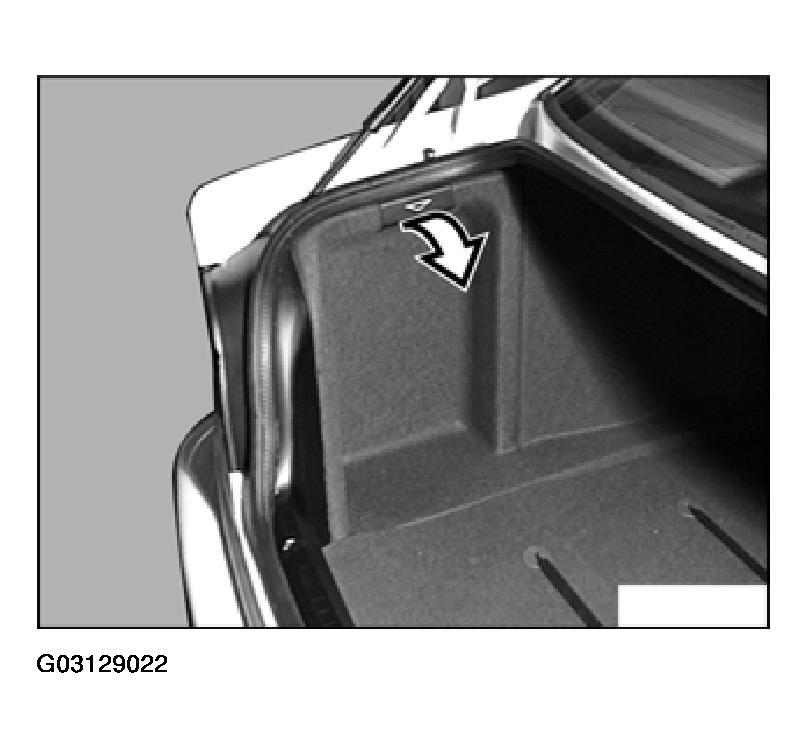

Open luggage compartment panel.

Fig 1: Opening Luggage Compartment Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 09/2000:

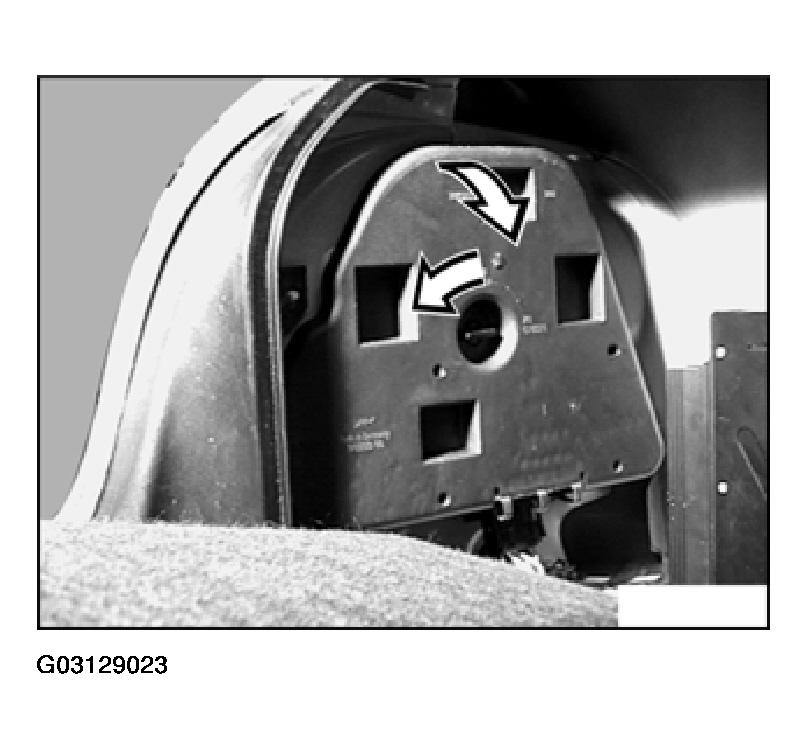

Turn lock in direction of arrow and remove socket housing for rear light.

Fig 2: Removing Socket Housing For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

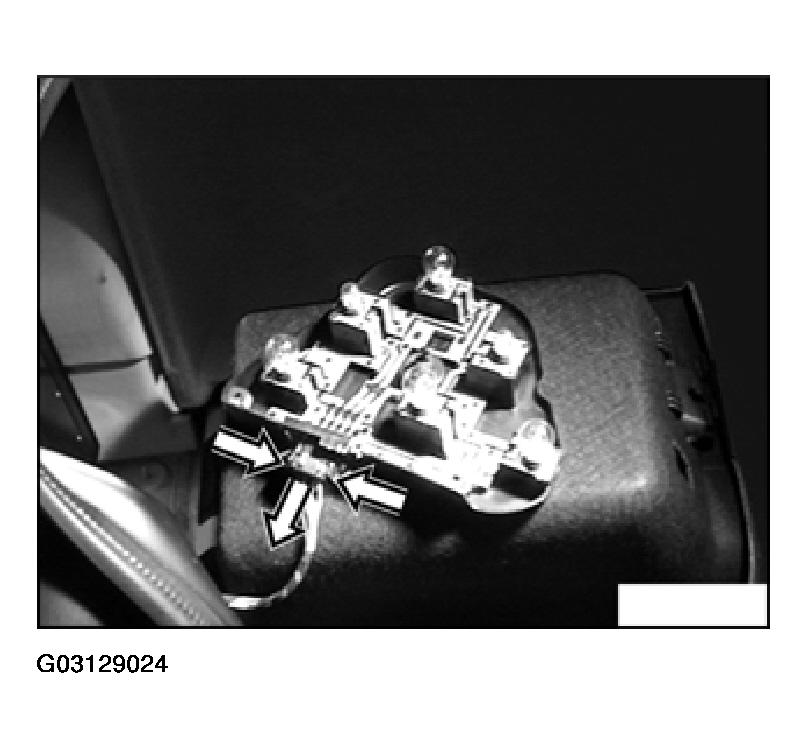

Disconnect connector.

Convert bulbs, replace if necessary.

Fig 3: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

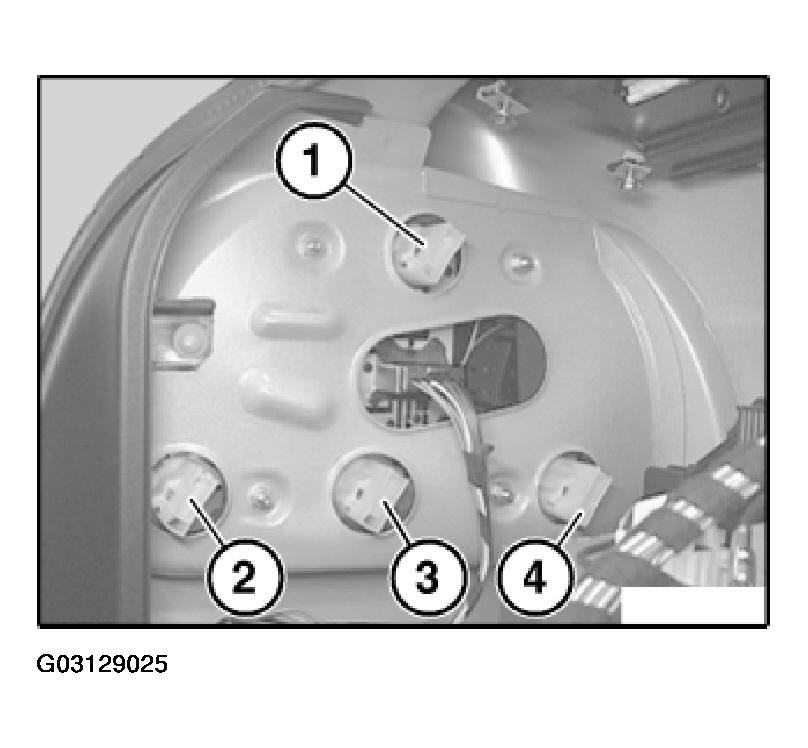

Turn socket housing for rear light to be replaced counterclockwise and remove.

Convert bulb, replace if necessary.

NOTE:

Socket housing for turn signal lamp
Socket housing for fog warning lamp
Socket housing for reversing light
Socket housing for brake light

Fig 4: Turning Socket Housing For Rear Light & Removing

Courtesy of BMW OF NORTH AMERICA, INC.
