63 99 315 Replacing bulb(s) for left or right rear light (saloon/sedan)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Remove socket housing for rear light.

Up to 09/2000:

Twist defective light bulb and pull out to remove.

NOTE:

Brake light
Tail light
Turn indicator
Tail light
Fog warning light
Reversing light

Fig 1: Removing Defective Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

Remove faulty bulb (1) in direction of arrow from socket housing (2).

All:

Installation:

Note type of bulb.

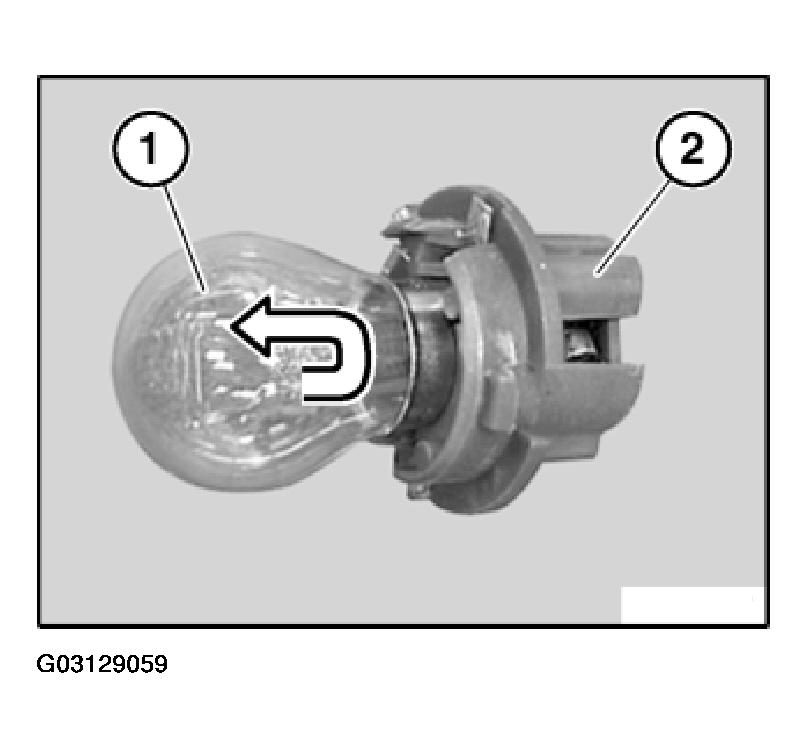

Fig 2: Removing Faulty Bulb From Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.
