6310 014 Adjusting fog lamps

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Observe test preconditions for adjusting headlights.

Up to 08/2000:

Adjust fog lamp at adjusting screw through opening in grating.

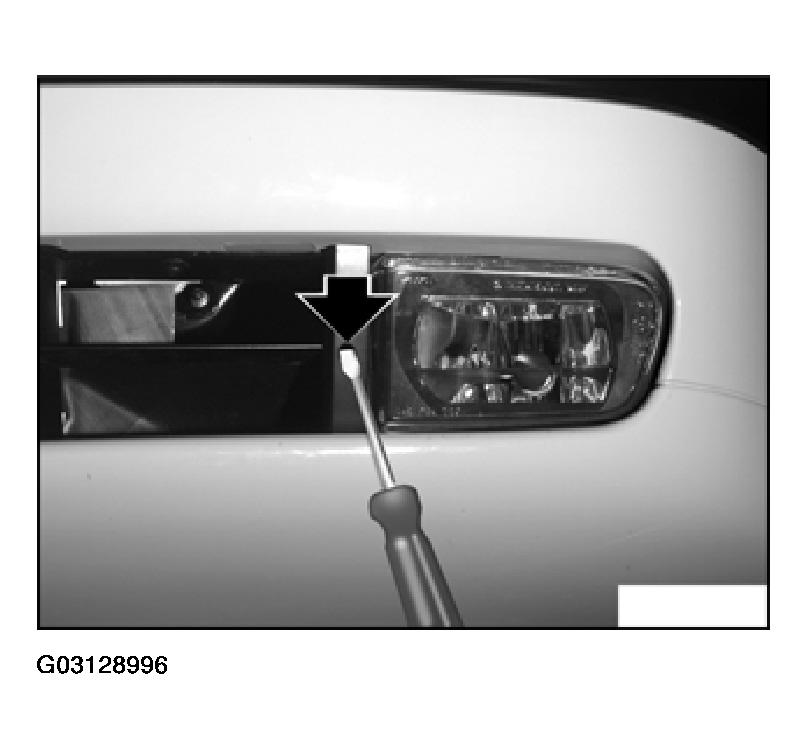

Fig 1: Adjusting Fog Lamp At Adjusting Screw Through Opening In Grating

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

Adjust fog lamp (1) at adjusting screw behind trim.

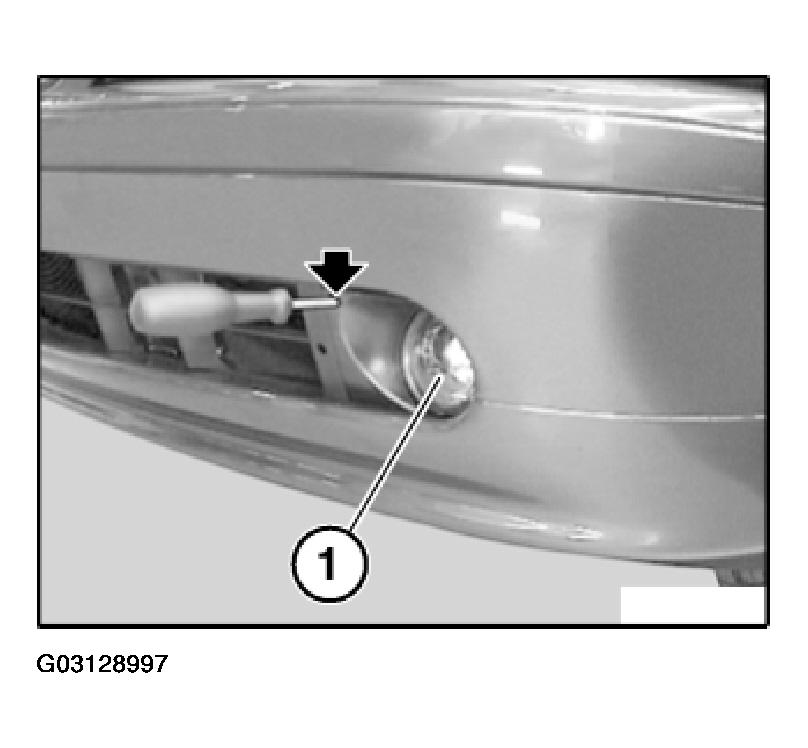

Fig 2: Adjusting Fog Lamp At Adjusting Screw Behind Trim

Courtesy of BMW OF NORTH AMERICA, INC.

M aerodynamics package:

If necessary, unclip trim.

Adjust fog lamp (1) at adjusting screw (2).

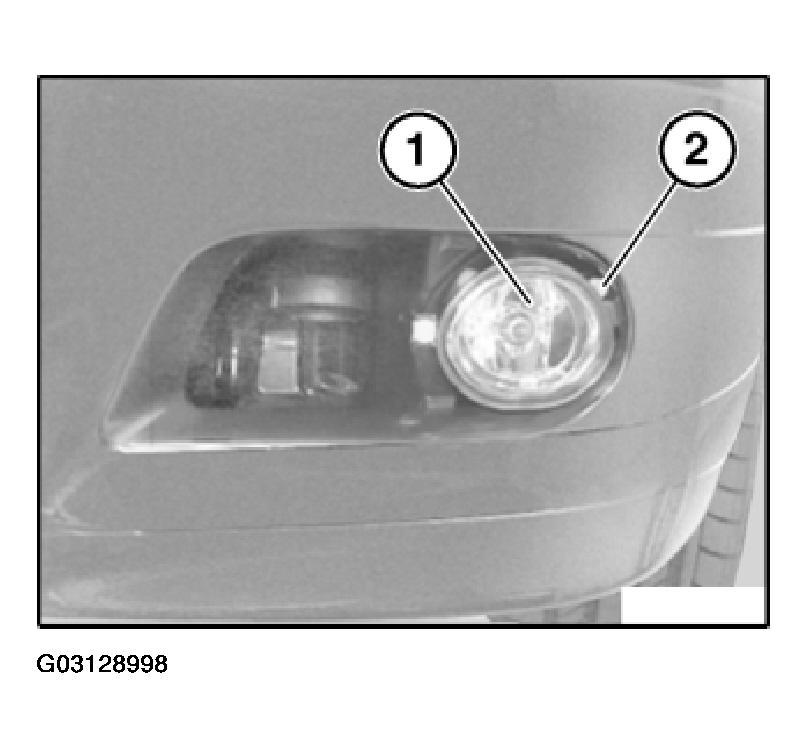

Fig 3: Adjusting Fog Lamp At Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
