63 31 020 Removing and installing/replacing footwell light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

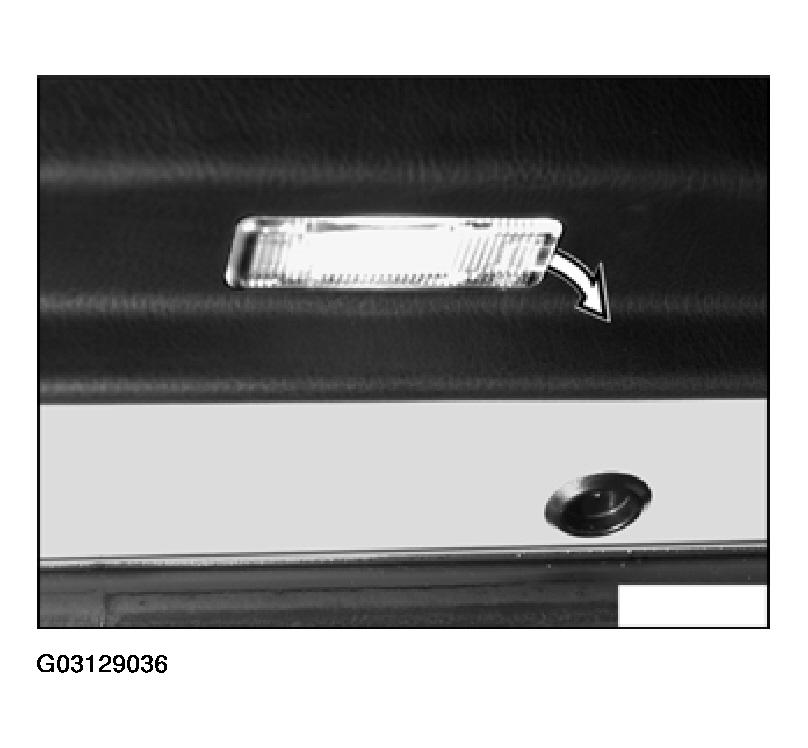

Pry out footwell light from side

Fig 1: Prying Out Footwell Light From Side

Courtesy of BMW OF NORTH AMERICA, INC.

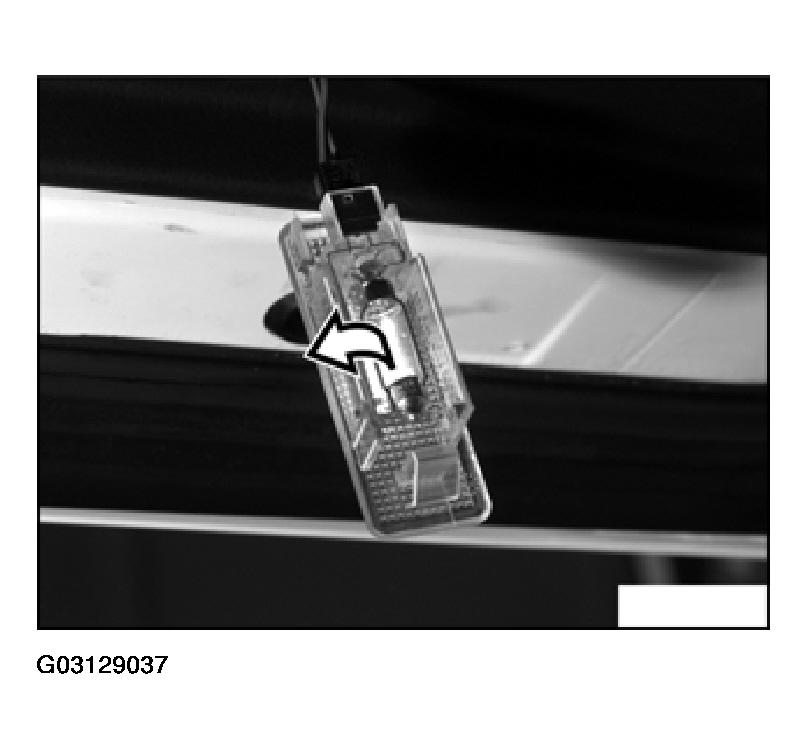

Pull out connector and remove light.

Fig 2: Pulling Out Connector & Removing Light

Courtesy of BMW OF NORTH AMERICA, INC.
