63 12 481 Replacing headlamp housing with insert for xenon headlamp on left (up to 09/2000)
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Remove lens/reflector. See 63 12 034 Removing and installing/replacing lens/reflector for left headlight (up to 09/2000)
WARNING:
Follow instructions for handling light bulbs (exterior lights).

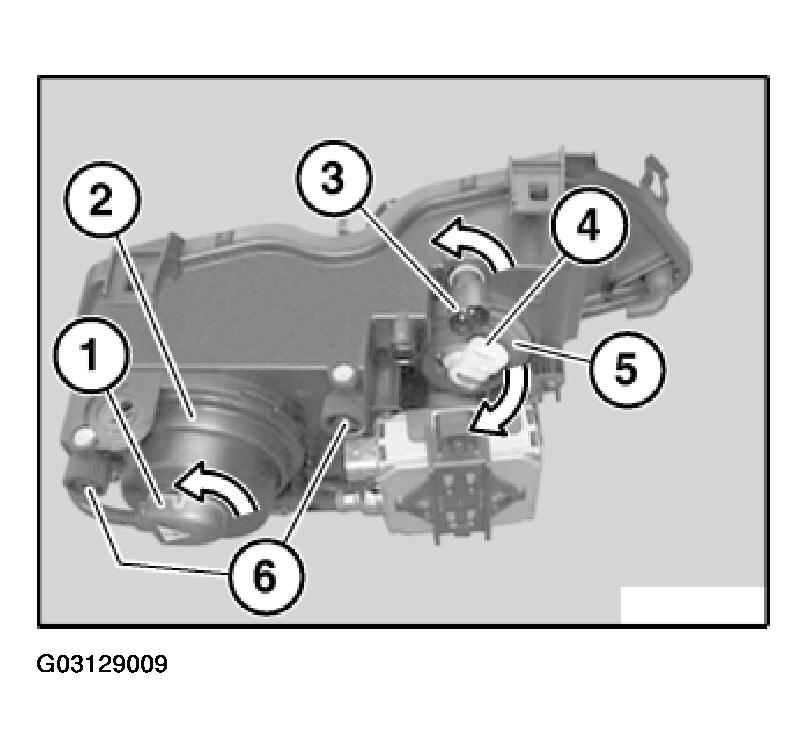

Turn plug connection (1) in direction of arrow and disconnect.
Remove low beam cover (2) and take out bulb underneath.
Turn side-marker lamp bulb holder (3) in direction of arrow and remove.
Turn plug housing (4) in direction of arrow and remove.
Remove high beam cover cap (5) and take out bulb underneath.
Remove control unit with holder.
Installation:
Make sure low beam cover (2) and high beam cover cap are correctly seated.
Installation:
Adjust headlights.
