63 12 411 Replacing headlamp housing with insert on left (up to 09/2000)
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Remove lens/reflector. See 63 12 034 Removing and installing/replacing lens/reflector for left headlight (up to 09/2000)
WARNING:
Follow instructions for handling light bulbs (exterior lights).
Remove bulb holder with side-marker lamp bulb.

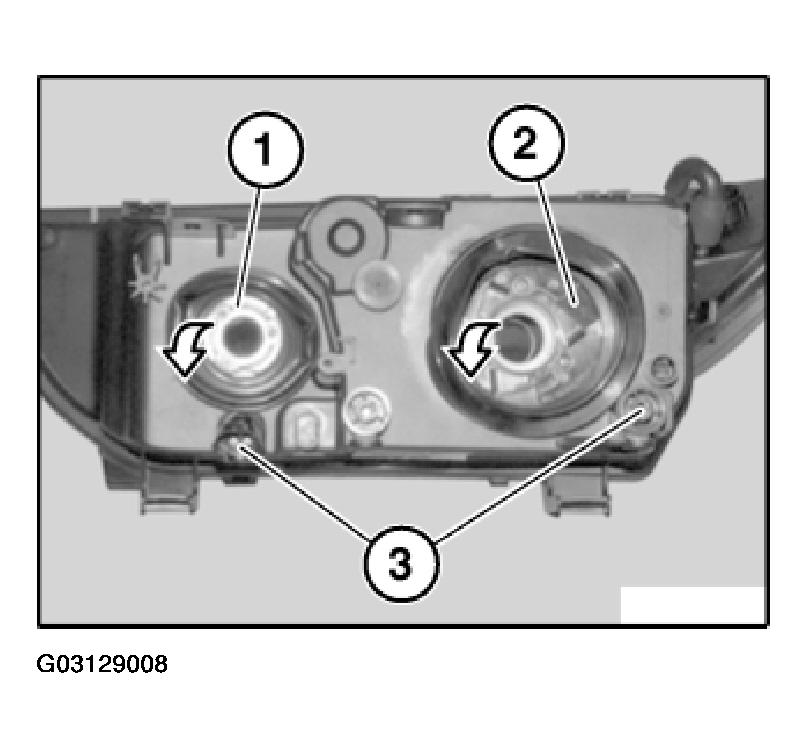

Detach high beam cover cap (1) and low beam cover (2) in direction of arrow and remove bulbs underneath.
Installation:
Make sure high beam cover cap (1) and low beam cover (2) are correctly seated.
Installation:
Adjust headlamp.
