Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

00 9 322

Lever out trim (1) with special tool 00 9 322 and remove.

Installation:

Make sure trim (1) engages correctly.

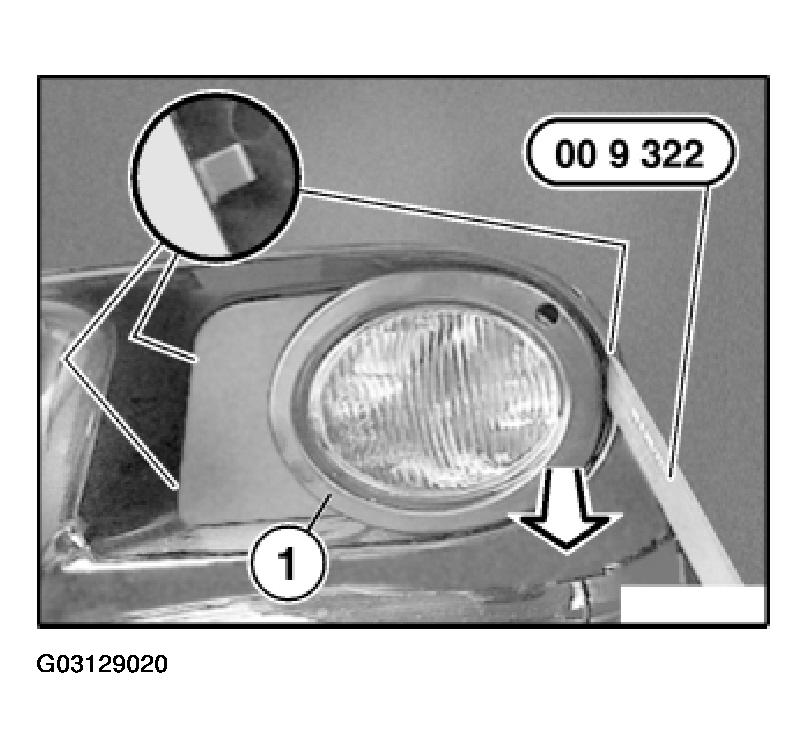

Fig 1: Levering Out Trim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Feed out fog lamp insert (2) and remove.

Disconnect plug connection behind.

Installation:

Make sure lugs (3) are precisely seated.

Make sure ventilation grommet of fog lamp insert is laid without kinks and sufficiently firmly seated.

If necessary, adjust fog lamp.

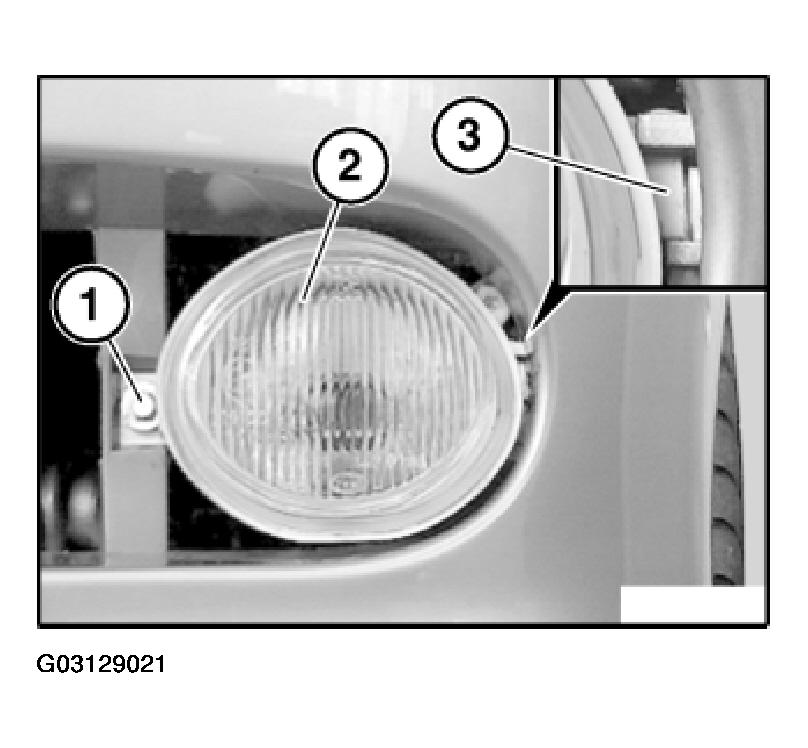

Fig 2: Feeding Out Fog Lamp Insert & Removing

Courtesy of BMW OF NORTH AMERICA, INC.
