61 31 396 Replacing relay for air supply system

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove spare wheel.

Remove screws and nuts. Turn air supply system over.

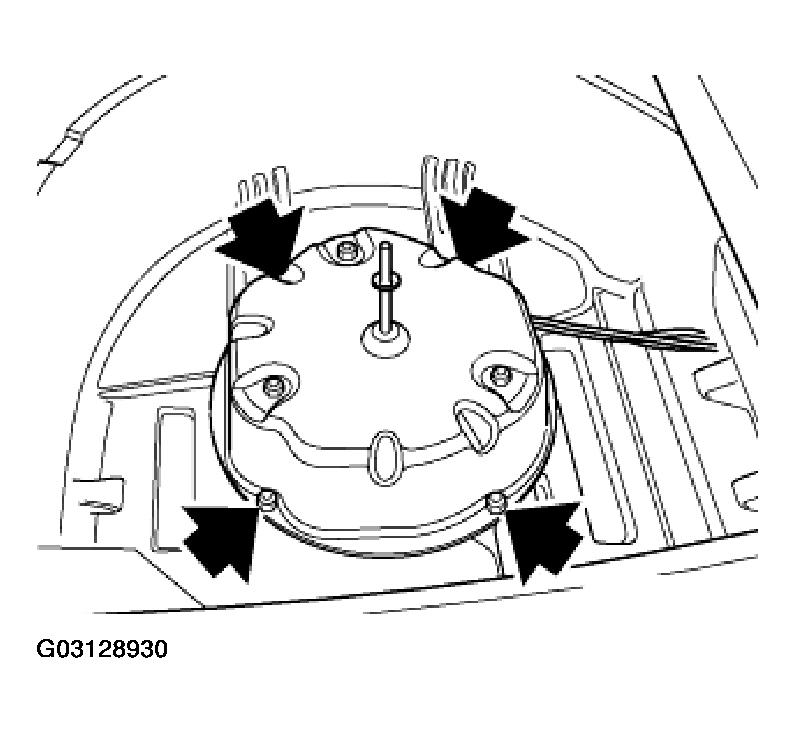

Fig 1: Removing Screws & Nuts
G03128930Courtesy of BMW OF NORTH AMERICA, INC.

Turn relay receptacle (1) through 45° and remove.

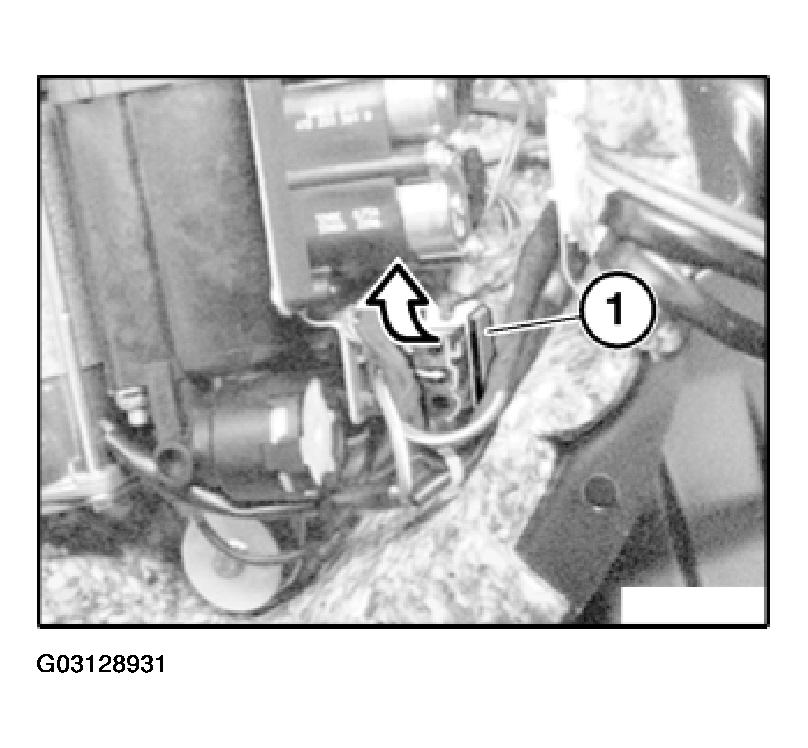

Fig 2: Turning Relay Receptacle
G03128931Courtesy of BMW OF NORTH AMERICA, INC.
