61 31 228 Replacing switch on sport steering wheel (with connected airbag unit)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove airbag unit. See DRIVER-SIDE AIR BAG MODULE

NOTE: There 2 screw variants:

Self-tapping screws
Screws with insert nuts (secure against falling out)

Release screws (1) and (2).

Unclip complete trim (4) in direction of arrow from fixtures (3).

Disconnect plug connection underneath.

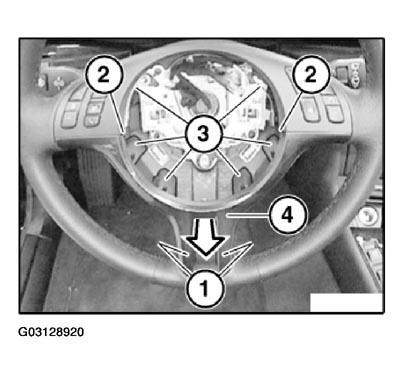

Fig 1: Unclipping Complete Trim In Direction Of Arrow From Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Detach switch on sport steering wheel (3) in direction of arrow from trim (2).

Installation:

Ensure gap dimension is uniform between trim (2) and switch on sport steering wheel (3).

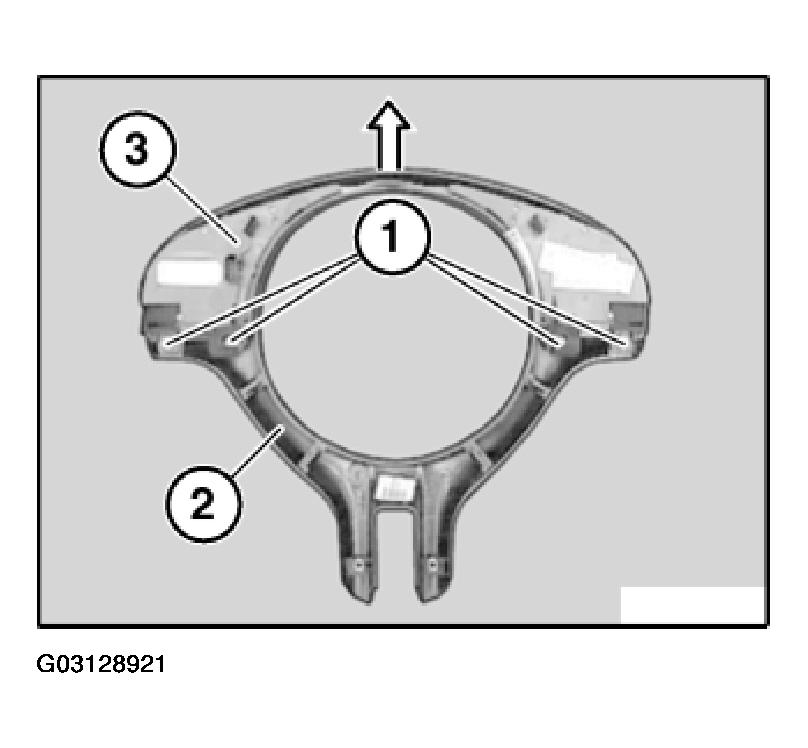

Fig 2: Detaching Switch On Sport Steering Wheel From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
