61 31 224 Replacing switch on impact cushion for left or right airbag

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove airbag unit from steering wheel.

Illustration shows removal of switch on impact cushion for airbag on left

Disconnect plug connection (1).

Loosen screws (2).

Remove switch on impact cushion for airbag (3) in direction of arrow.

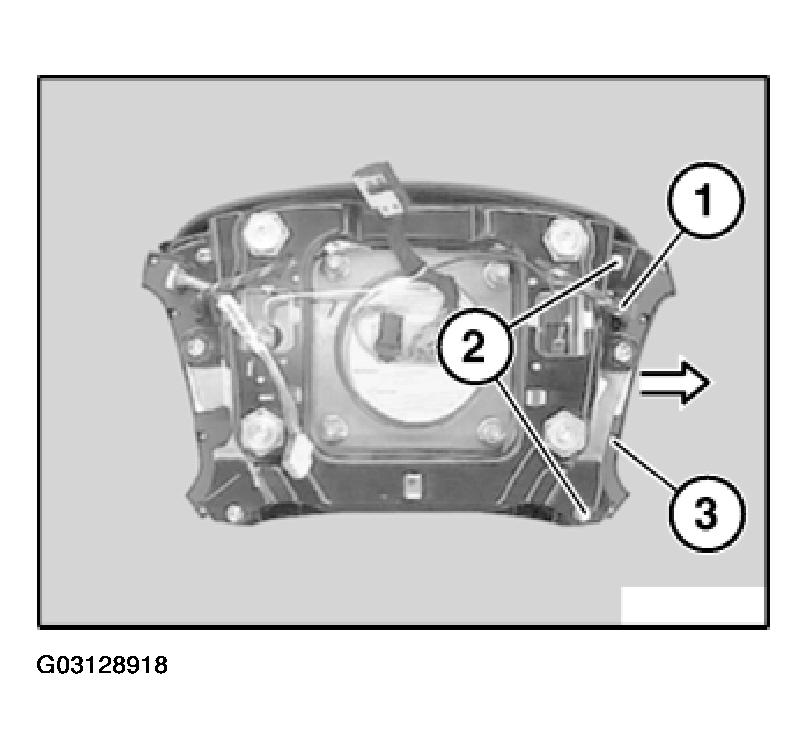

Fig 1: Removing Switch On Impact Cushion For Airbag
G03128918Courtesy of BMW OF NORTH AMERICA, INC.
