61 31 070 Removing and installing/replacing switch for foglights and rear foglights

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

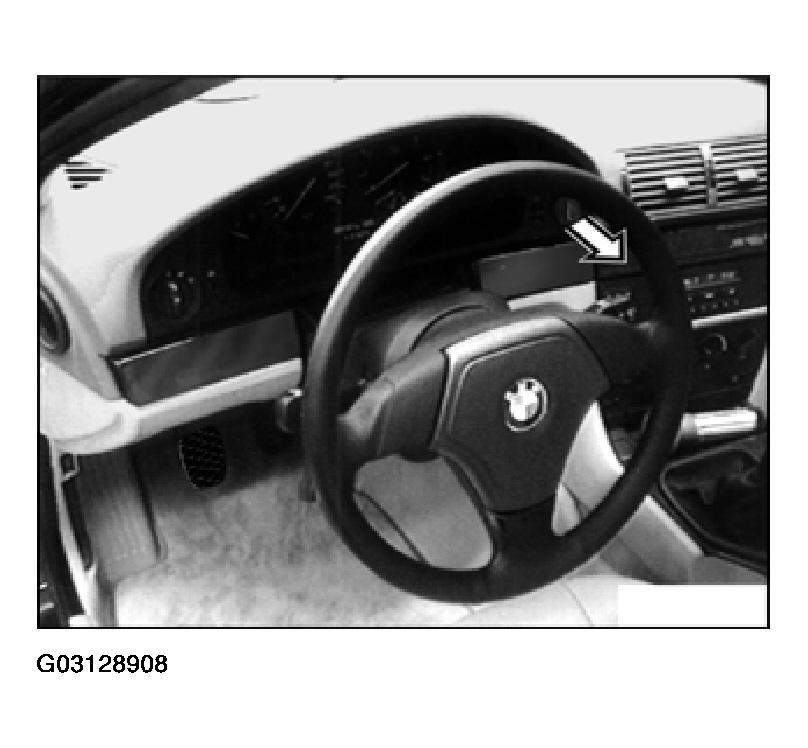

Remove frame from instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .

Remove button from foglight switch.

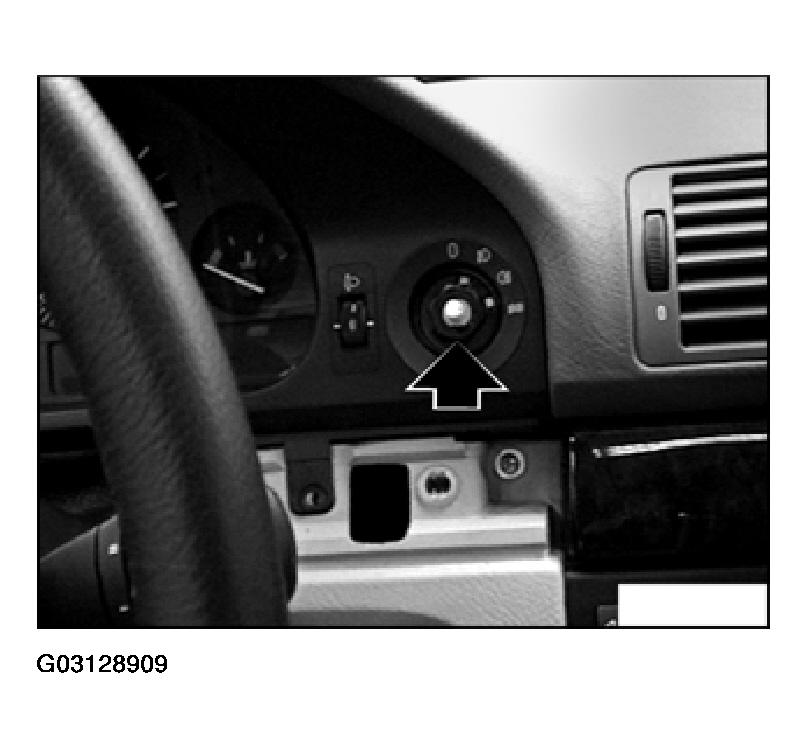

Fig 1: Removing Button From Foglight Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove nuts.

Fig 2: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector and press foglight switch backwards to remove.

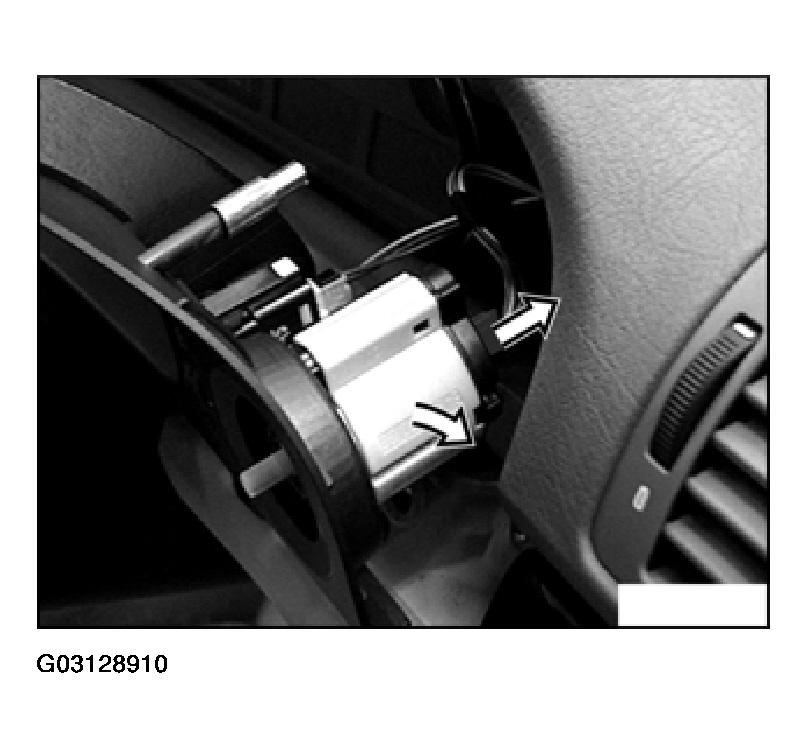

Fig 3: Removing Connector & Pressing Foglight Switch Backwards To Remove

Courtesy of BMW OF NORTH AMERICA, INC.
