Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out switch unit (1) with special tool 00 9 340 and withdraw in direction of arrow.

Disconnect plug connection behind it and remove switch unit (1).

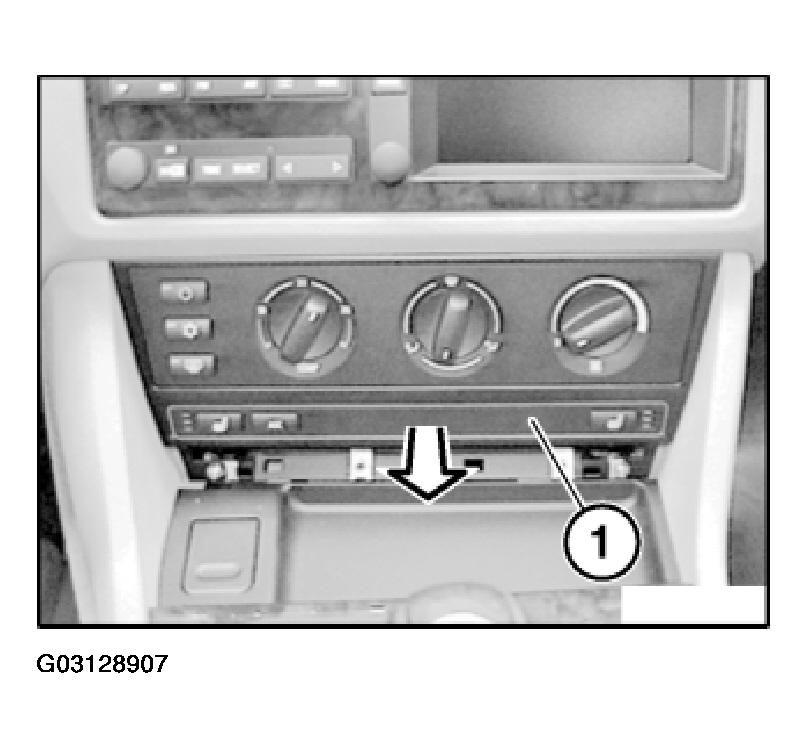

Fig 1: Levering Out Switch Unit
G03128907Courtesy of BMW OF NORTH AMERICA, INC.
