61 31 047 Removing and installing/replacing dimmer switch for instrument panel lighting
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Removing frame for instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .

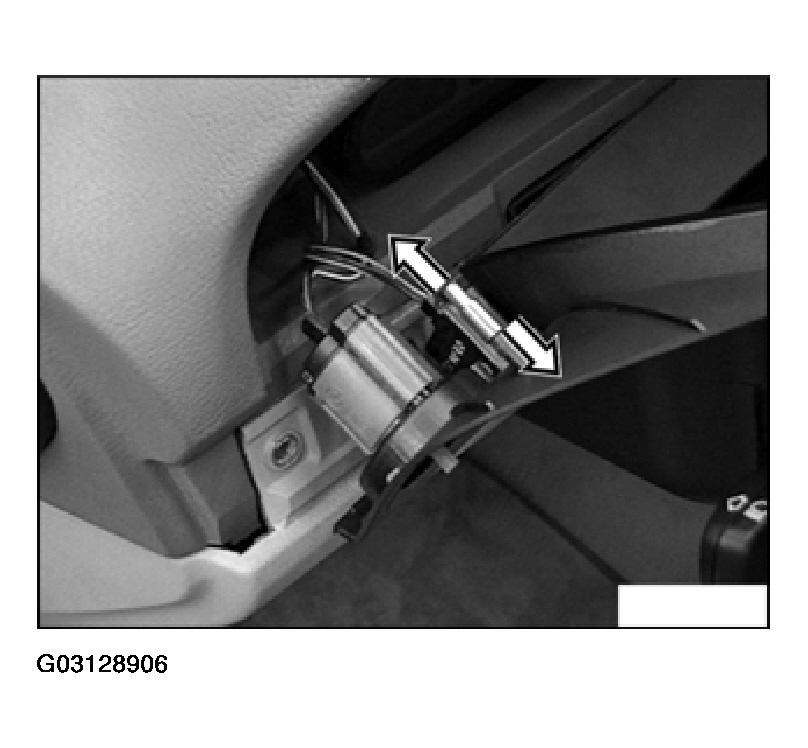

Remove connector and press dimmer switch forwards to remove.
