61 31 020 Removing and installing the ignition switch

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bottom section of the steering column panelling. Refer to STEERING COLUMN SWITCHES .

Unlock connector from ignition starter switch and remove.

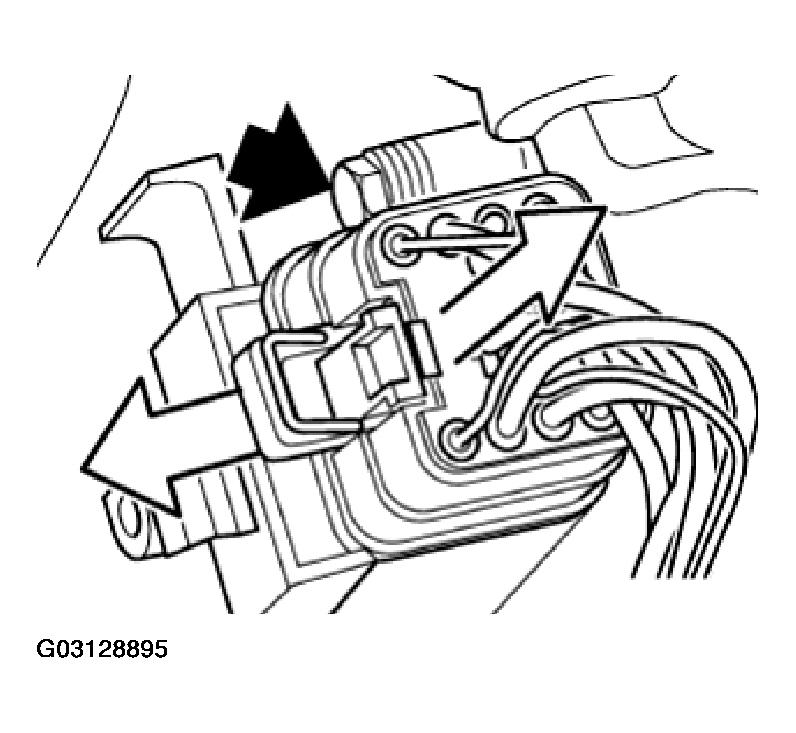

Fig 1: Unlocking Connector From Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective paint and unfasten grub screws.

Remove ignition starter switch.

Installation note.

Secure headless screws with varnish.

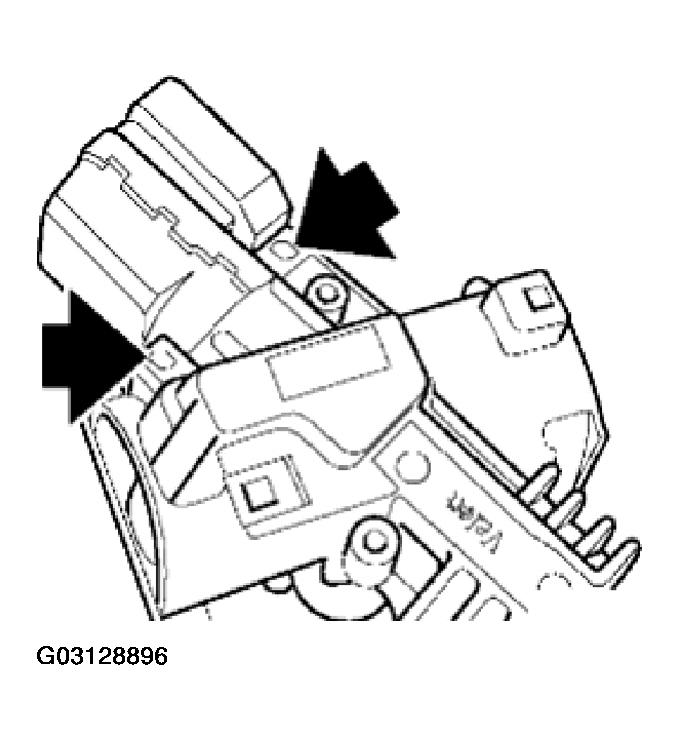

Fig 2: Removing Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.
