61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front bumper. Refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

Slide clip to one side and remove line.

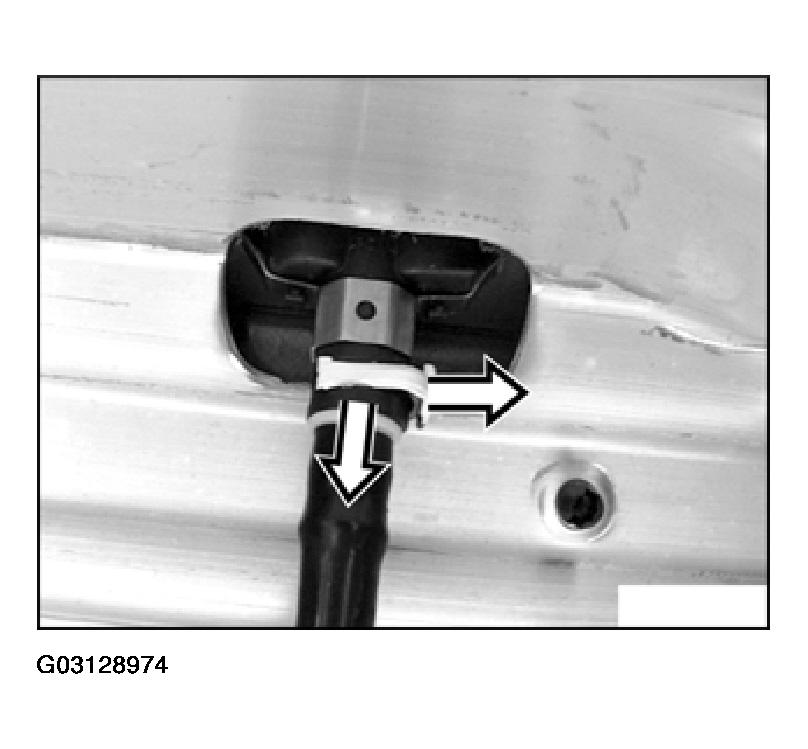

Fig 1: Sliding Clip To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

Press together clips and slide spray nozzle upwards.

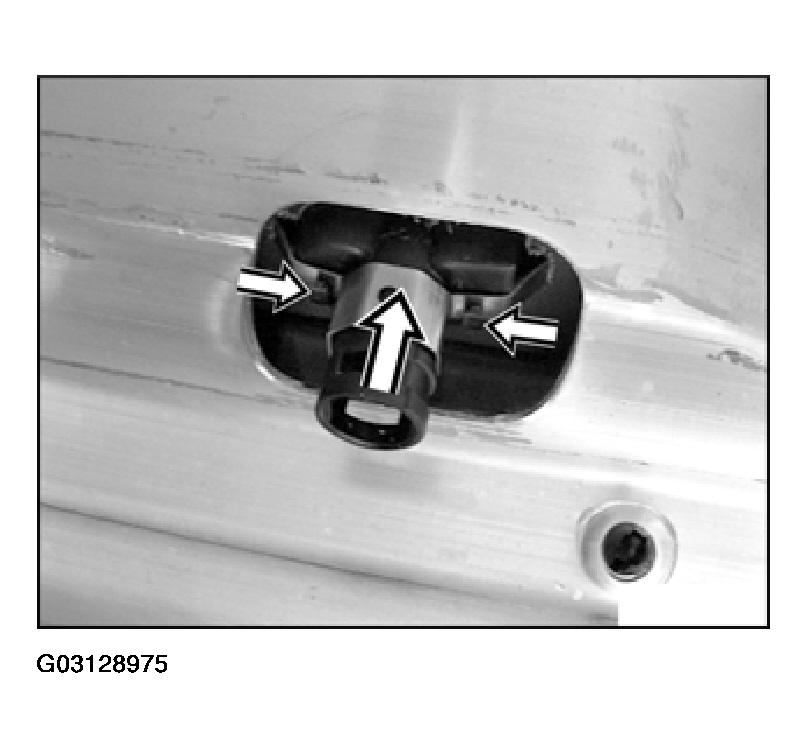

Fig 2: Pressing Together Clips & Sliding Spray Nozzle Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note.

Do not confuse spray nozzles. The lugs (1) point towards the center grill on the car. Nozzles are designated with R and L.

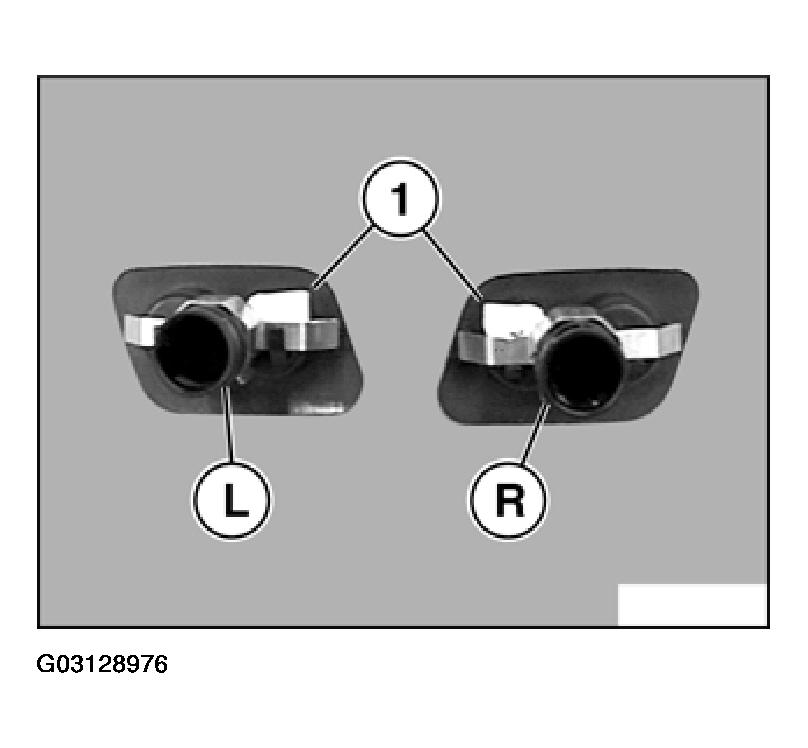

Fig 3: Identifying Lugs & Nozzles

Courtesy of BMW OF NORTH AMERICA, INC.
