54 12 496 Removing and installing or replacing wind deflector

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Open slide/tilt sunroof.

Lift out left/right spring (1) and pull wind deflector (2) backwards slightly to remove from mount (3).

Installation:

Install spring (1) correctly.

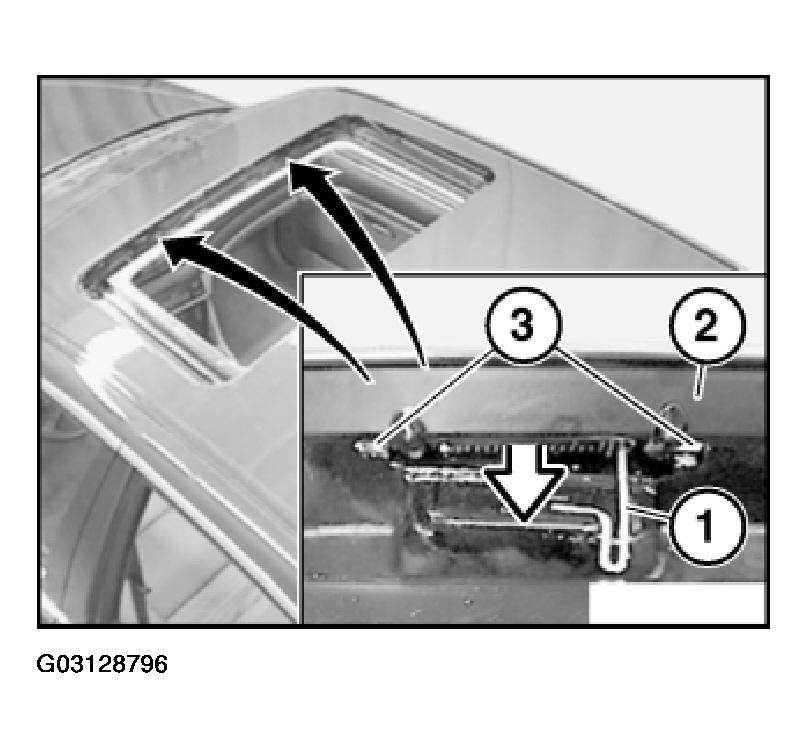

Fig 1: Lifting Out Left/Right Spring & Pulling Wind Deflector Backwards Slightly To Remove From Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Raise wind deflector (1) slightly, turn and pull off left/right lever (2).

Fig 2: Raising Wind Deflector Slightly & Pulling Off Left/Right Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Move left/right lever (1) into vertical position and pull forwards off mount (2).

Installation:

Check function.

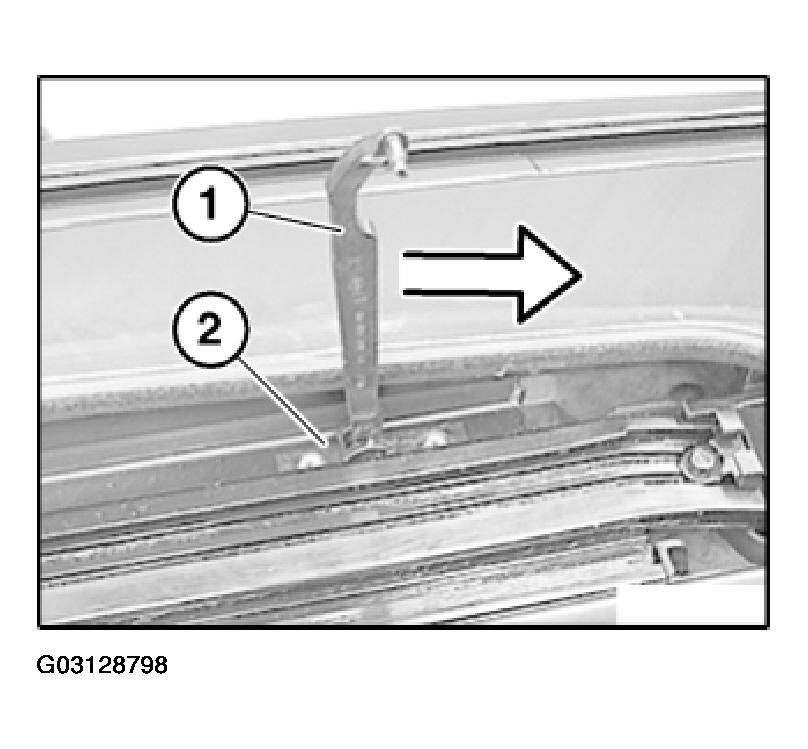

Fig 3: Moving Left/Right Lever Into Vertical Position & Pulling Forwards Off Mount

Courtesy of BMW OF NORTH AMERICA, INC.
