54 12 265 Adjusting both drive cables for actuation of glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof,

refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID

Remove drive unit with transmission for slide/tilt sunroof actuation. To remove:

Remove panel and disconnect plug connection.

NOTE: Note: Secure drive with gear for actuating slide/tilt sunroof against falling out.

Lower drive with gear for actuating slide/tilt sunroof. Unlock plug connection, disconnect and remove drive with gear for actuating slide/tilt sunroof.
To install, insert gear wheel of drive with gear for actuating slide/tilt sunroof in gear teeth.

Slide mechanism (1) into zero setting.

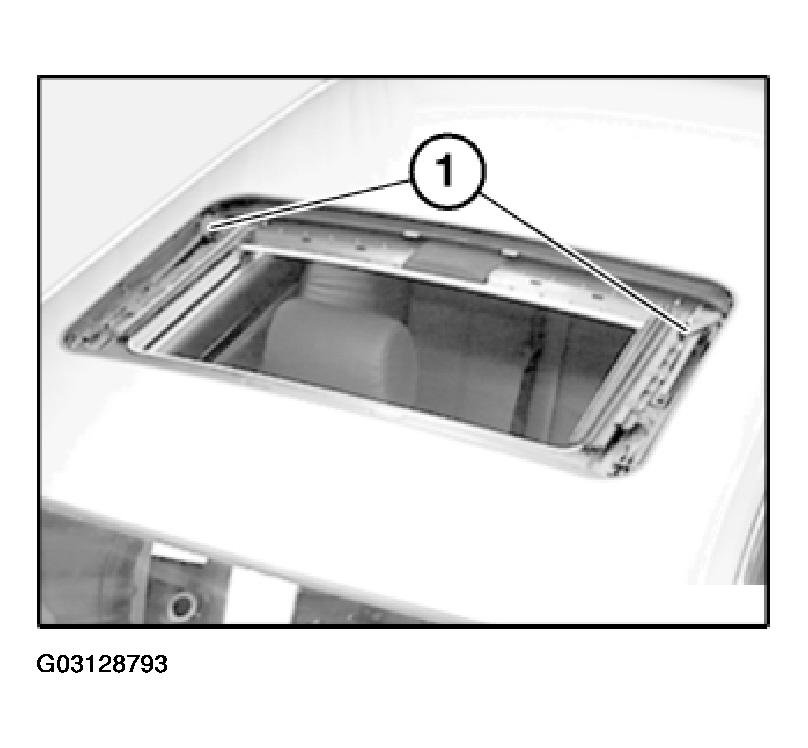

Fig 1: Sliding Mechanism Into Zero Setting

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 54 3 170 left/right between the guides (1) in the lifting device (2).

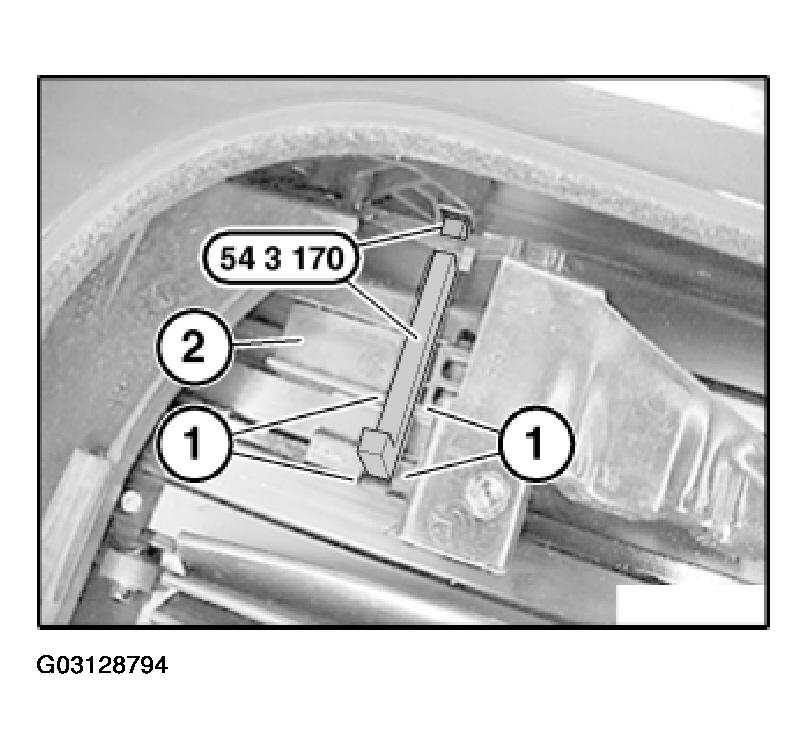

Fig 2: Inserting Special Tool 54 3 170 Left/Right Between Guides In Lifting Device

Courtesy of BMW OF NORTH AMERICA, INC.

Lift front of special tool 54 3 170 (1) slightly and insert in control gate (2) (both drive cables are now secured in their zero setting).

Install drive unit with transmission for slide/tilt sunroof actuation.

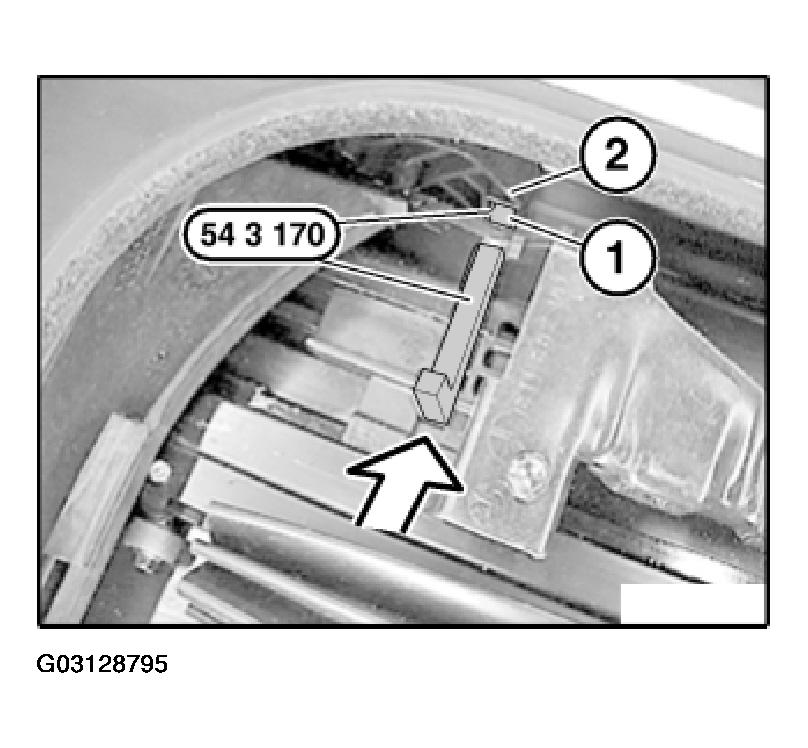

Fig 3: Lifting Front Of Special Tool 54 3 170 Slightly & Inserting In Control Gate

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Remove special tool 54 3 170 left/right (risk of damage).

Check function.
