54 12 138 Removing and installing / replacing water channel for glass sliding/tilting sunroof

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass sliding/tilting sunroof lid, see 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Move mechanism (1) to raising position.

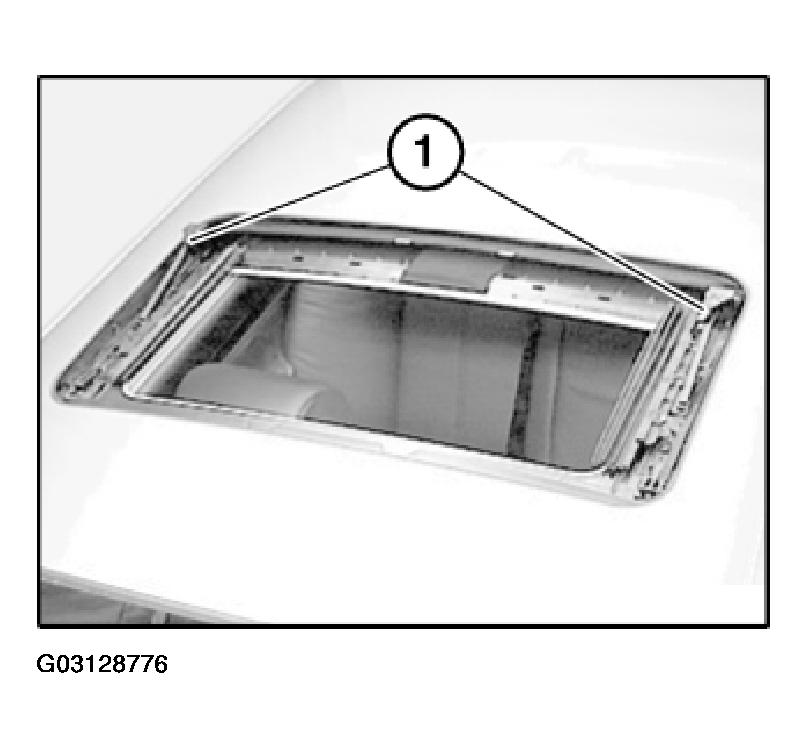

Fig 1: Moving Mechanism To Raising Position

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip water channel on left/right from setting lever (1) and remove from slide (2).

Installation:

Make sure that the fork at the rear is engaged and the water channel on left/right is correctly snapped into place.

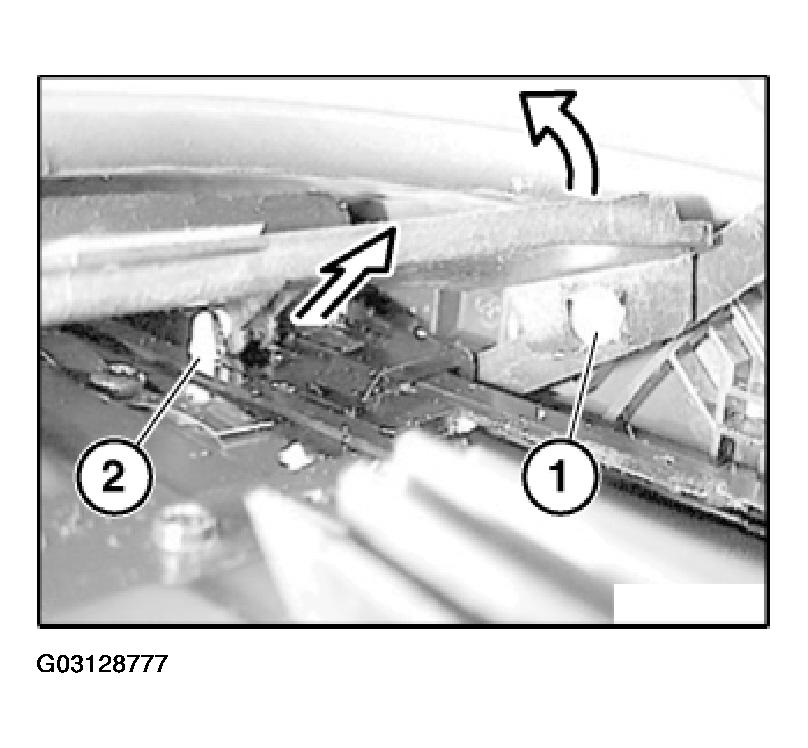

Fig 2: Unclipping Water Channel On Left/Right From Setting Lever & Removing From Slide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catch (1) and support (2) on left/right must not be damaged.

Check function.

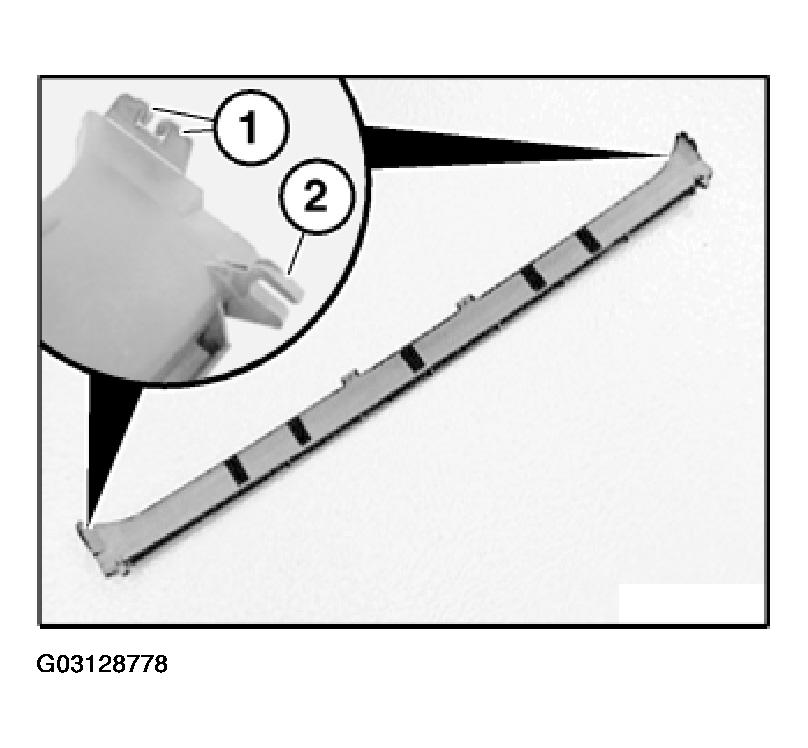

Fig 3: Catching & Supporting On Left/Right
