54 12 136 Removing and installing / replacing headliner for glass slide/tilt sunroof cover

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Removing left and right rubber gaiter for glass slide/tilt sunroof cover, refer to 54 12 015 REPLACING LEFT OR RIGHT RUBBER GAITERS FOR GLASS SLIDE/TILT SUNROOF

Move mechanism into zero setting.

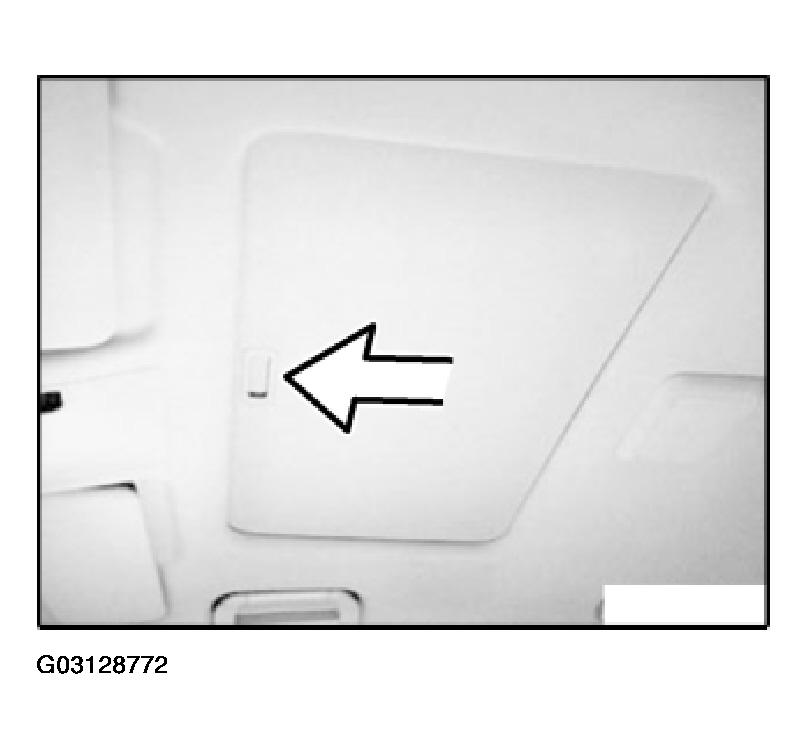

Slowly pull headliner forwards as far as it will go.

Fig 1: Pulling Headliner Forwards As Far As It Will Go

Courtesy of BMW OF NORTH AMERICA, INC.

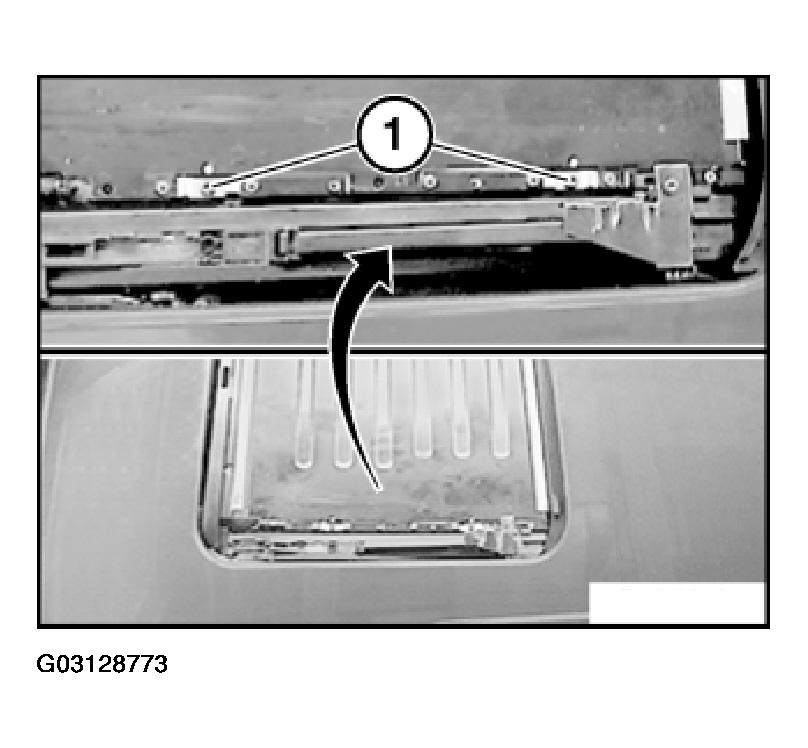

Unfasten left/right screws (1).

Fig 2: Unfastening Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift headliner upwards to remove.

Fig 3: Lifting Headliner Upwards To Remove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

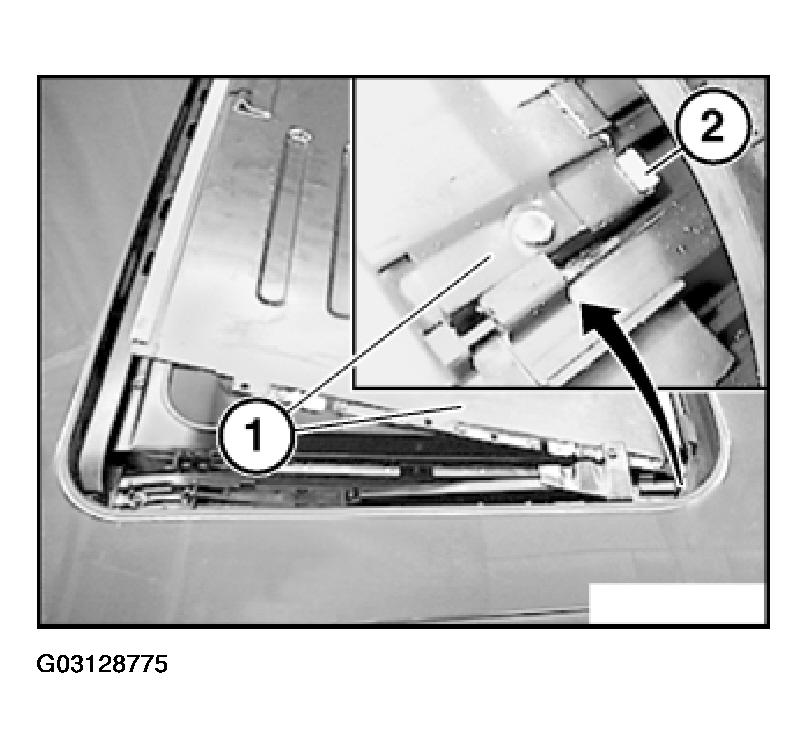

Insert headliner (1) in support (2) from behind/left.

Fig 4: Inserting Headliner In Support From Behind/Left

Courtesy of BMW OF NORTH AMERICA, INC.
