Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

00 2130
00 9 250

Removal:

Slowly slide roof-lining frame towards rear up to dimension (A).

ROOF-LINING FRAME REAR DIMENSION

A	E38	80 mm
E39, E53		70 mm

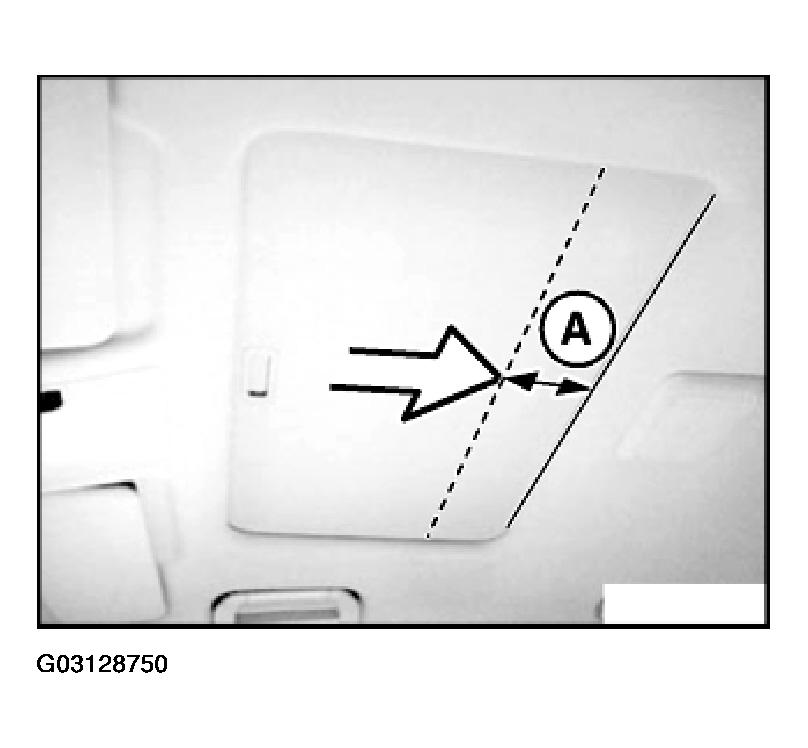

Fig 1: Sliding Roof-Lining Frame Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Press switch in direction of "raise position" (fan setting) until lid is raised to max. setting.

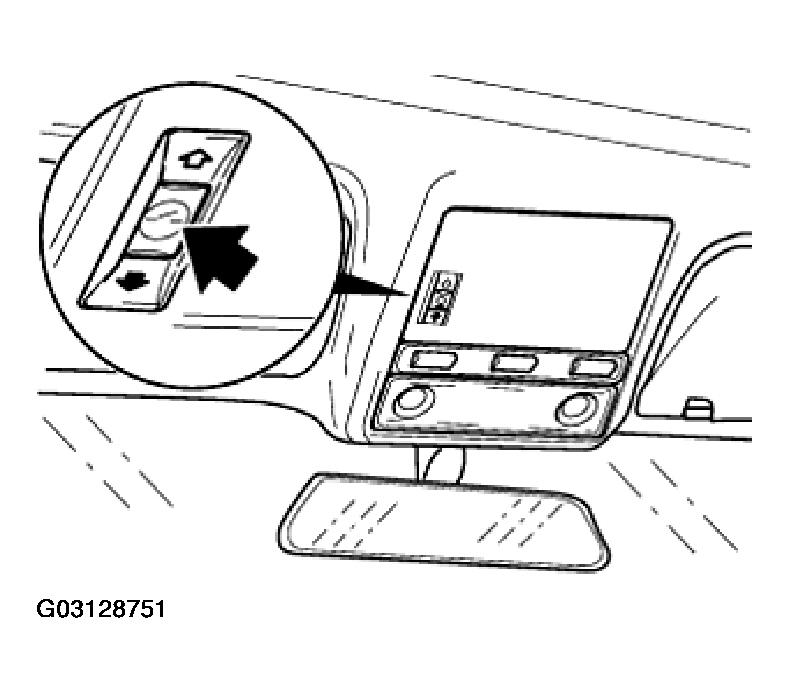

Fig 2: Identifying Sunroof Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Grasp the bellows by hand only at the first fold (1) (risk of damage).

Detach bellows starting from center (A) towards front and rear (B) from glass slide/tilt sunroof lid (2).

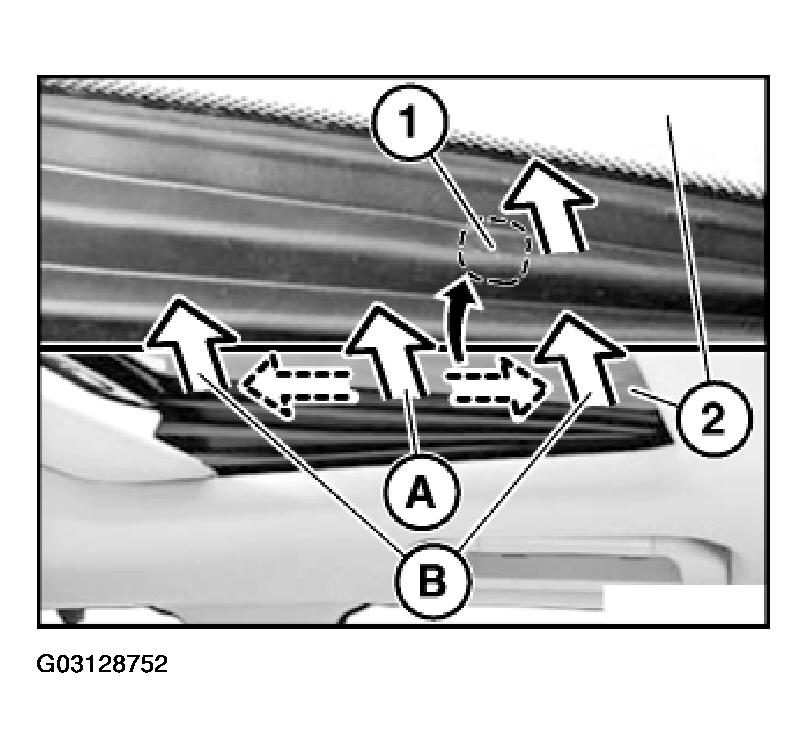

Fig 3: Detaching Bellows Starting From Center Towards Front & Rear From Glass Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2) with special tool 00 2 130.

Installation:

Replace removed screws (microencapsulation) or install old screws with Loctite 270 (Sourcing Reference: BMW Parts Service).

Tighten down screws with special tool 00 9 250.

Tightening torque. Refer to SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUE .

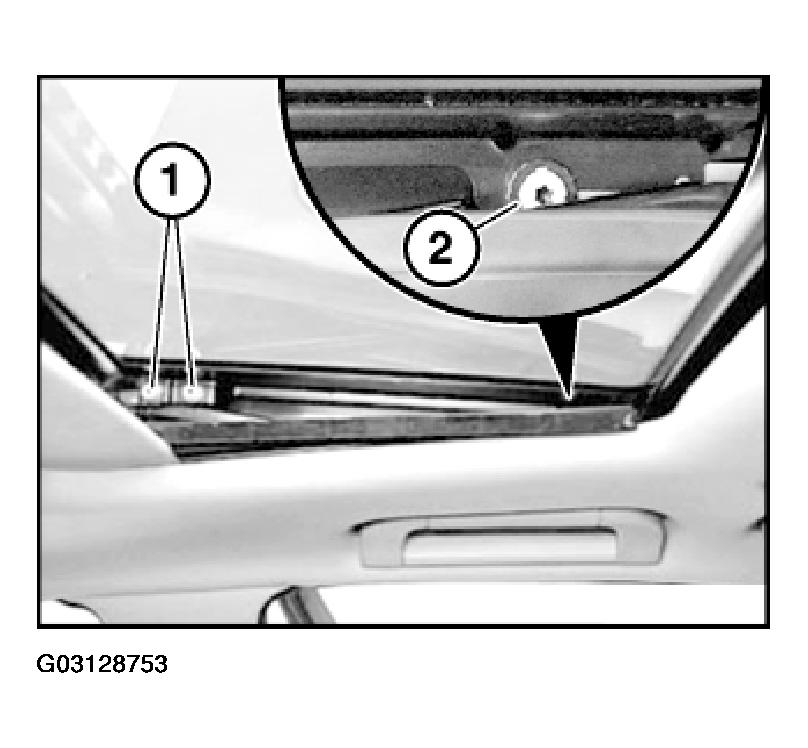

Fig 4: Releasing Screws With Special Tool 00 2 130

Courtesy of BMW OF NORTH AMERICA, INC.

Raise glass slide/tilt sunroof lid (1) at rear until setting lever (2) can be levered out of retaining pin (3) of lid (1).

NOTE: Place glass sunroof lid on a clean base/support.

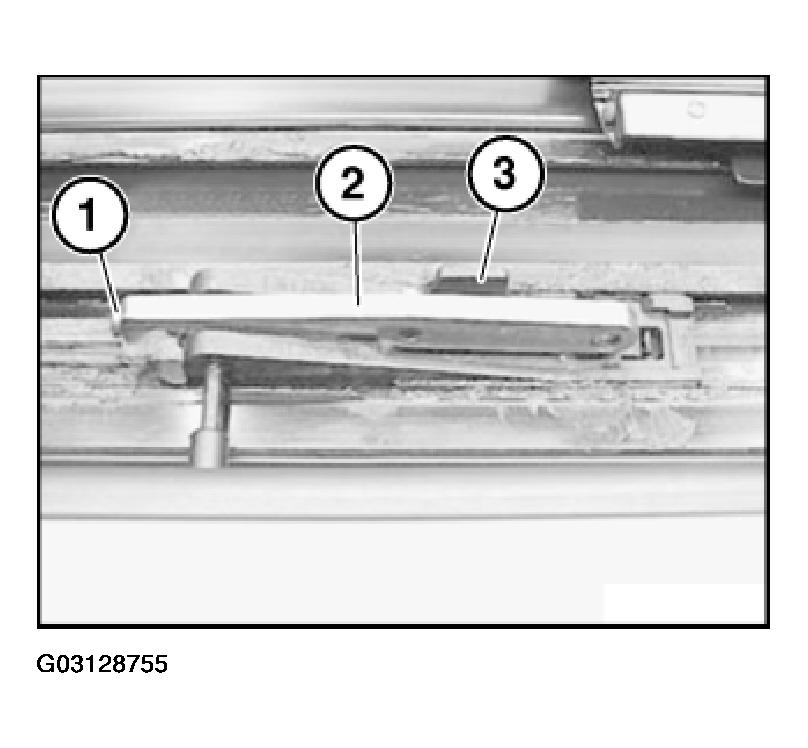

Fig 5: Raising Glass Slide/Tilt Sunroof Lid At Rear Until Setting Lever Can Be Levered Out Of Retaining Pin Of Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Setting lever with retaining screw:

Release retaining screw (1) until assembly opening is free. Raise setting lever (2) and unhook from slide (3).

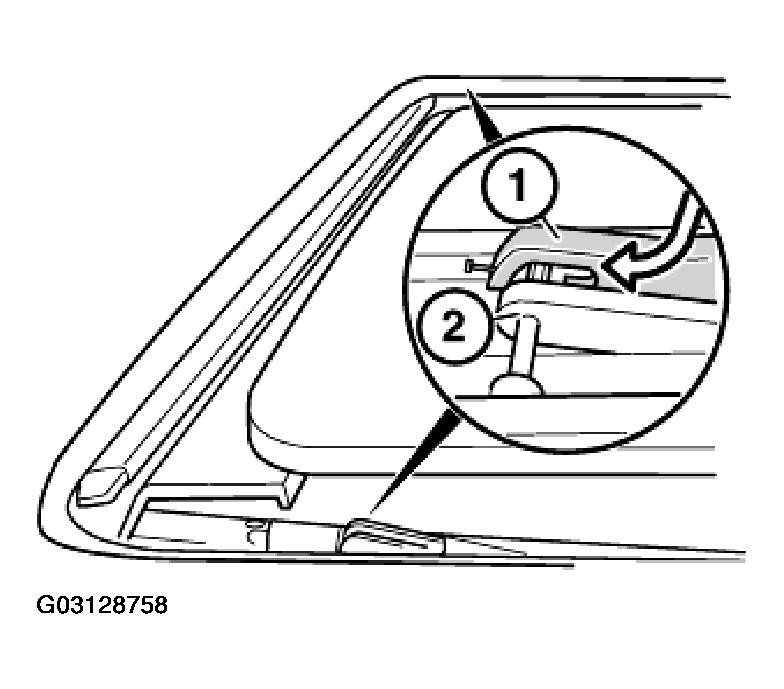

Fig 6: Releasing Retaining Screw Until Assembly Opening Is Free

Courtesy of BMW OF NORTH AMERICA, INC.

Setting lever without retaining screw:

Inspect to see whether a retaining spring is present.

Press retaining spring at front downwards, raise setting lever (2) and unhook from sliding rail (3).

Installation:

Install setting lever on left/right on glass sunroof lid. Retaining pin (1) must locate correctly in bore (2).

NOTE: Note designation on right (R) or left (L) setting lever.

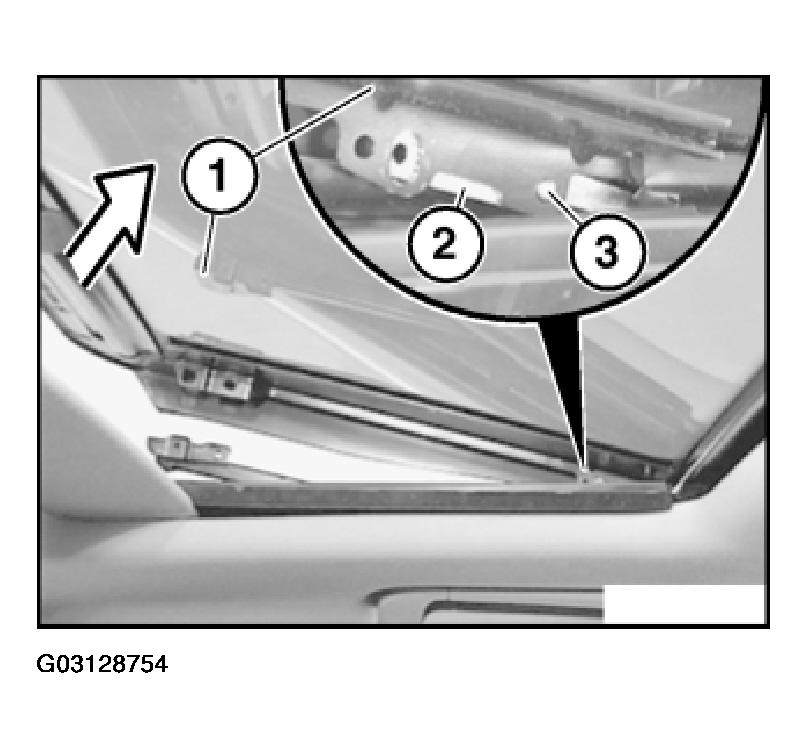

Fig 7: Installing Setting Lever On Left/Right On Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1) (microencapsulation) or refit old screws with Loctite 270 (Sourcing Reference: BMW Parts Service).

Raise setting lever and insert screws (1) as far as they will go (do not tighten).

Setting lever with retaining screw:

Release retaining screw (2) until assembly opening is free. Coat protruding thread with Loctite 270 (Sourcing Reference: BMW Parts Service).

NOTE: Hardening of Loctite 270 takes about 30 minutes.

Fig 8: Releasing Retaining Screw Until Assembly Opening Is Free

Courtesy of BMW OF NORTH AMERICA, INC.

Setting lever with and without retaining screw:

Install glass slide/tilt sunroof lid; in so doing, hook setting lever (1) at front correctly into sliding rail (2).

Fig 9: Installing Glass Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Check that glass sunroof lid is securely seated.
Press glass sunroof lid at front on left/right with ball of thumb from bottom to top.
The glass sunroof lid must not be able to be raised.

Setting lever with retaining screw:

Open glass sunroof lid approx. 250 mm.

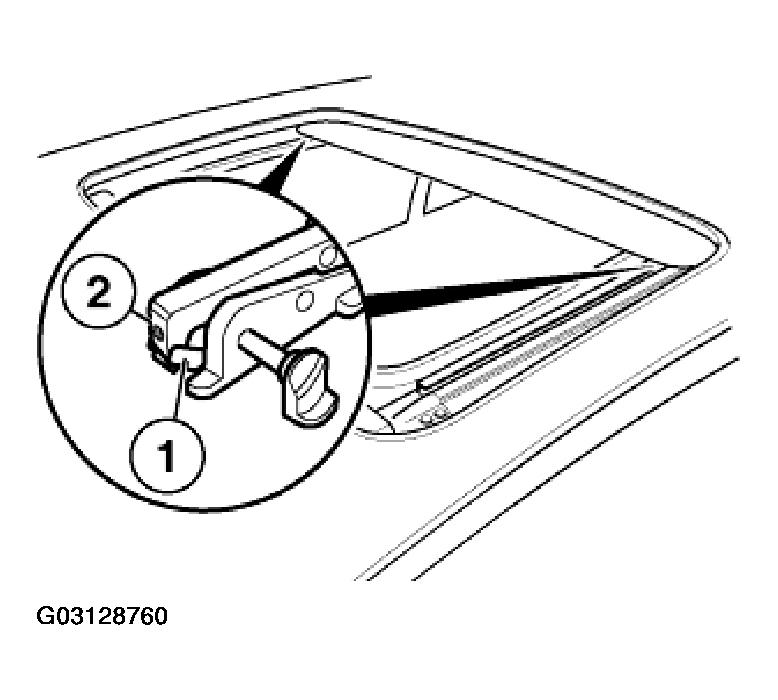

Carefully press glass sunroof lid upwards and screw in and tighten down securing screws (2) on left/right completely.

Fig 10: Pressing Glass Sunroof Lid Upwards & Screw In Securing Screws On Left/Right Completely

Courtesy of BMW OF NORTH AMERICA, INC.

Setting lever without retaining screw:

If setting levers with retaining screws (1) are fitted, do not install any retaining screws in thread (2).

Make sure retaining spring (1) is correctly seated.

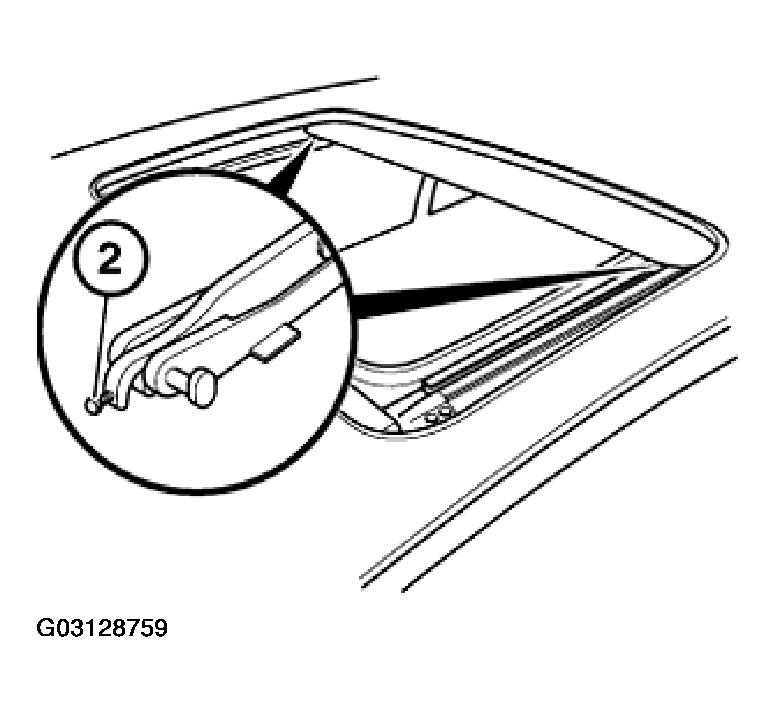

Fig 11: Making Sure Retaining Spring Is Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting glass slide/tilt sunroof lid.
