52 26 400 Replacing seat cover for rear seat (through-loading system)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat,

refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING) .

Feed tightening strap (1) out of wire (2).

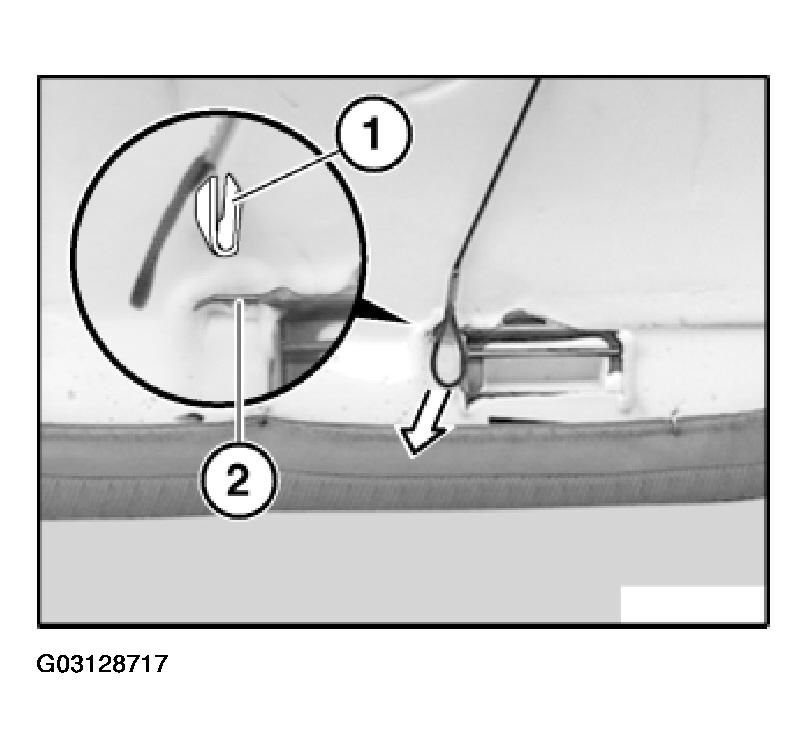

Fig 1: Feeding Tightening Strap Out Of Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Note position of clips.

Cut through or bend open all clips.

If possible, feed cover out of wire loop.

Carefully pull off cover and in so doing cut through or bend open clips of trim wires.

Remove all remnants of clips from cover and support.

Installation:

Lock new clips by bending with special tool 52 0 050. If necessary, surround existing wire in foam seat with clips.

If possible, feed trim wires into new cover.

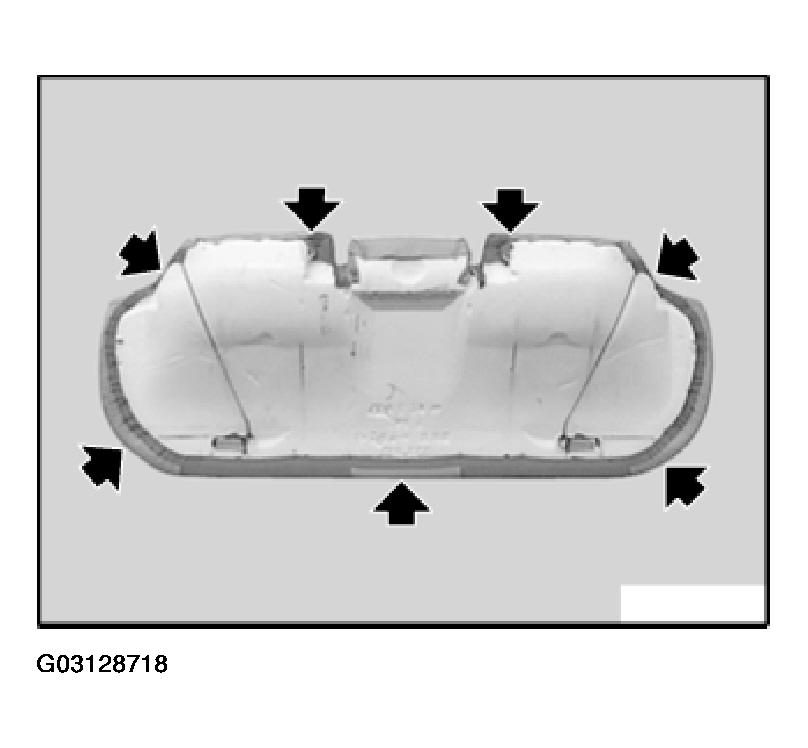

Fig 2: Removing All Remnants Of Clips From Cover & Support

Courtesy of BMW OF NORTH AMERICA, INC.
