52 26 305 Removing and installing/replacing lock cylinder for left/right rear seat backrest (through-loading)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip plate.

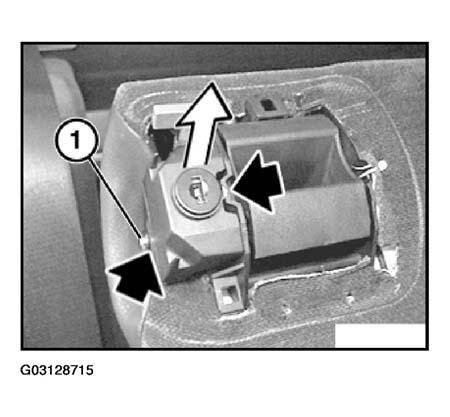

Fig 1: Unclipping Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect side of cover (1).

Version with leather cover:

If necessary, shorten cover clips (2) by approx. one half.

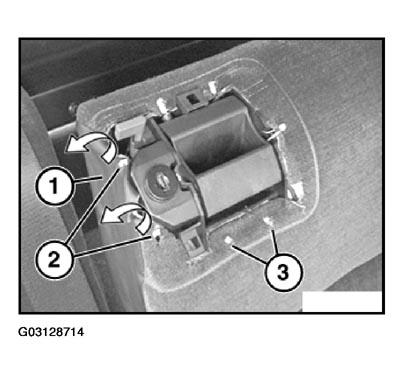

Fig 2: Disconnecting Side Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten retaining disc (1).

Unclip housing at side and top and pull out.

Installation:

The cover must be attached correctly in the front of the cover clips (3).

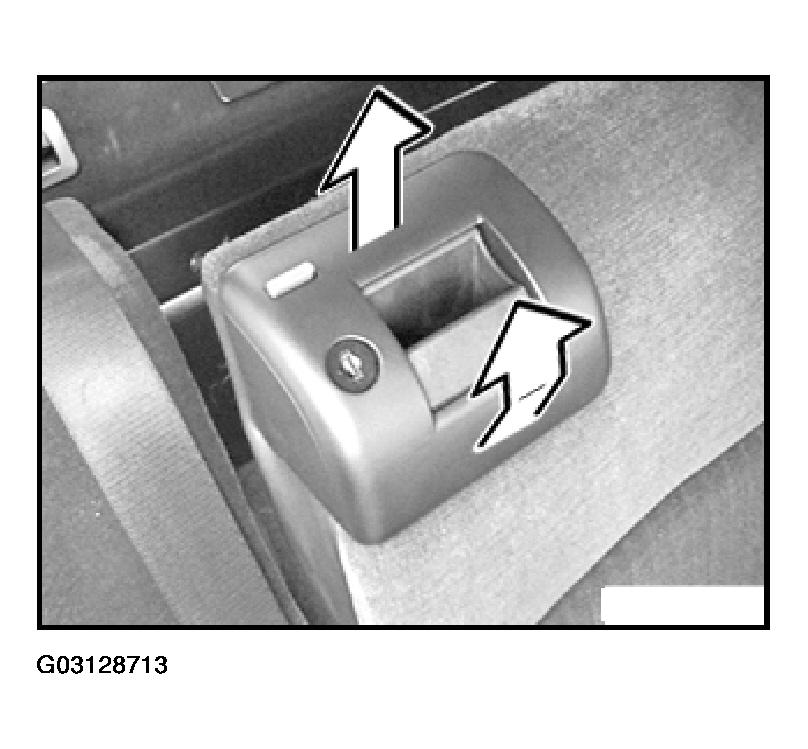

Fig 3: Unclipping Housing At Side & Top

Courtesy of BMW OF NORTH AMERICA, INC.

Insert vehicle key in lock cylinder (1).

Unlock lock cylinder (1) in housing (2) with special tool 51 3 170 and pull out with vehicle key.

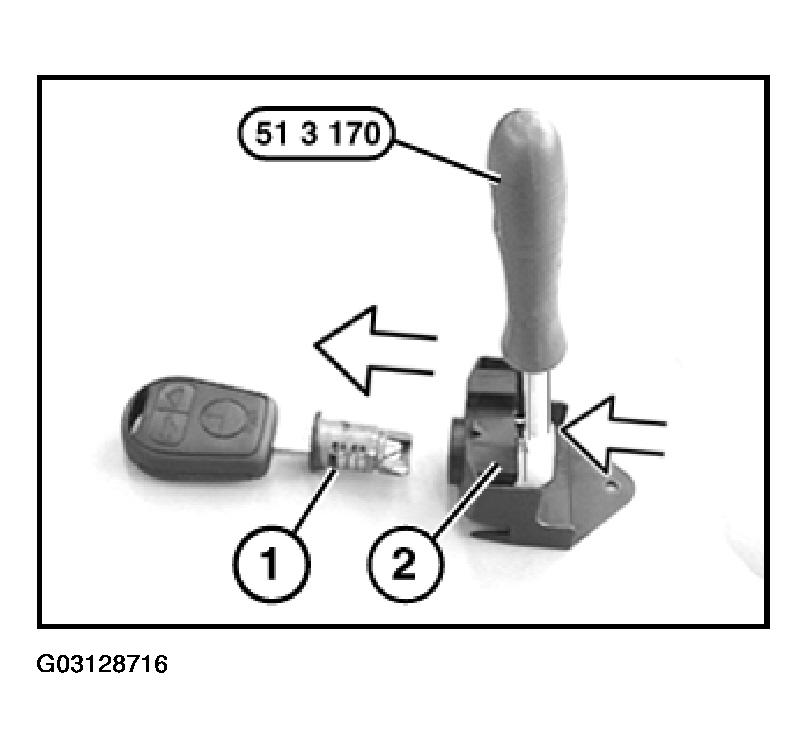

Fig 4: Inserting Vehicle Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
