52 24 390 Removing and installing or replacing left or right rear headrest

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Move headrest up as far as possible.

Press lightly against guides in forward and backward direction and pull out in upward direction.

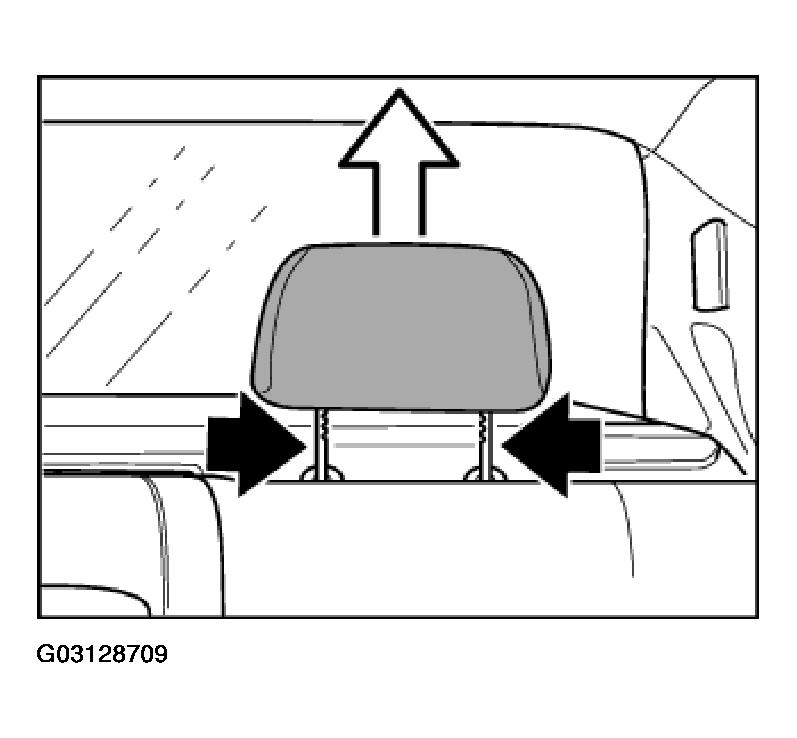

Fig 1: Pressing Lightly Against Guides In Forward & Backward

Courtesy of BMW OF NORTH AMERICA, INC.

Twist and pull out guides.

Installation:

Notches must face each other.

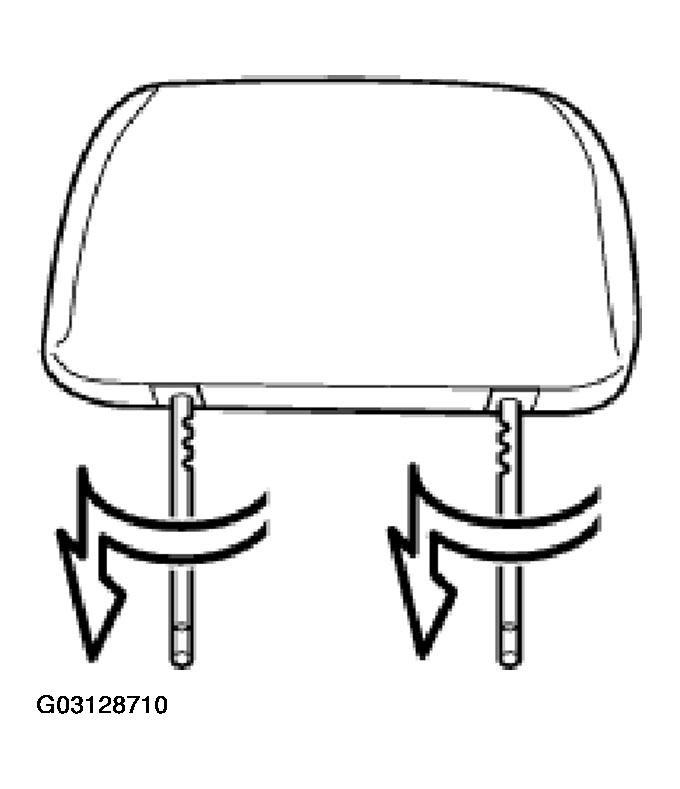

Fig 2: Twisting & Pull Out Guides

Courtesy of BMW OF NORTH AMERICA, INC.
