52 24 010 Removing and installing/replacing backrest for rear seat (normal)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat,

refer to 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL)

Unscrew screw.

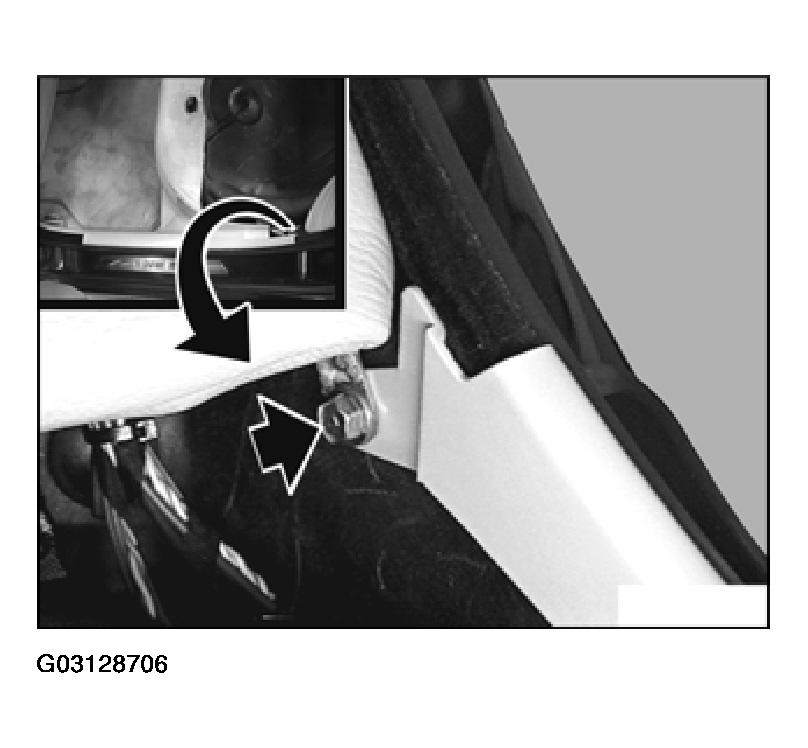

Fig 1: Unscrewing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Move center of headrest (1) as far up as possible and pull upwards forcefully.

Lift backrest (2) upwards and remove from seatbelt tapes.

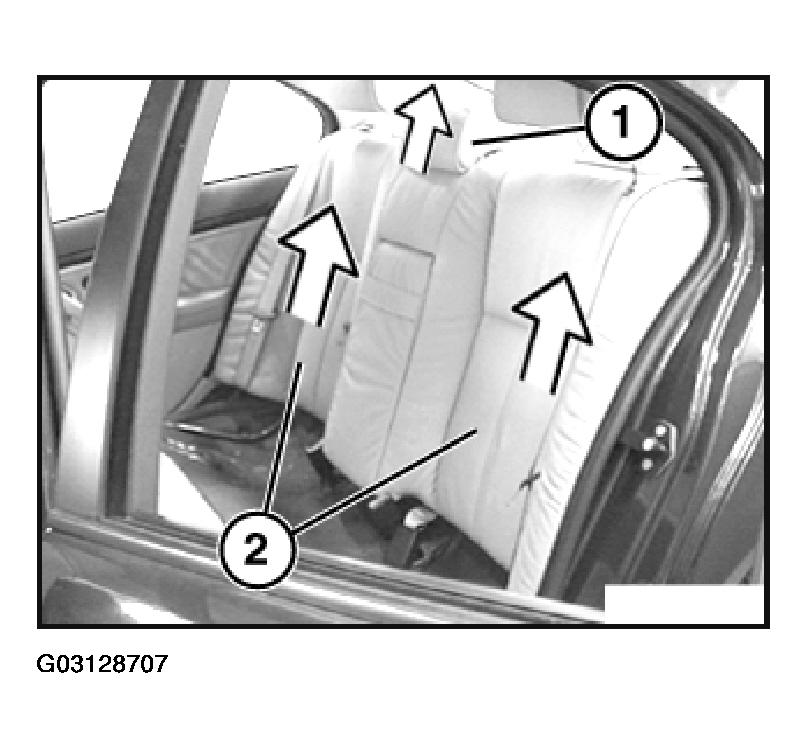

Fig 2: Removing From Seatbelt Tapes

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locate lugs in tabs and secure rear seat backrest.
